Sponza1
|
Voxel Resolution: 4096 Leaf Voxels: 147172814 Geometry Size: 9378304 Color Size: 441518442
|
 |
Ours_888_RGB |
et6.38_3bpw Color Size: 89698232 Compression: 20.315851721545982% Global MSE: 1.00961578 Global RMSE: 1.00479638733 Global PSNR: 48.089241 Global MaxR: 6 Global MaxG: 6 Global MaxB: 6 Global Max Length: 6.3245554 MSE: 2.163234 RMSE: 1.4707936633 PSNR: 44.77977 ssim: 0.996975 msssim: 0.959373
headers_size: 34508424 weights_size: 55189808 ratio: 0.625268
|
 |
et9.56_3bpw Color Size: 73365572 Compression: 16.616649503397188% Global MSE: 2.43433332 Global RMSE: 1.56023502076 Global PSNR: 44.2670021 Global MaxR: 9 Global MaxG: 9 Global MaxB: 9 Global Max Length: 9.53939247 MSE: 5.632878 RMSE: 2.37336849225 PSNR: 40.623501 ssim: 0.991162 msssim: 0.894536
headers_size: 18175764 weights_size: 55189808 ratio: 0.329332
|
 |
et12.8_3bpw Color Size: 65946836 Compression: 14.936371785801871% Global MSE: 4.21849823 Global RMSE: 2.05389830079 Global PSNR: 41.8792229 Global MaxR: 12 Global MaxG: 12 Global MaxB: 12 Global Max Length: 12.7279224 MSE: 10.493149 RMSE: 3.23931304446 PSNR: 37.921745 ssim: 0.982085 msssim: 0.81954
headers_size: 10757028 weights_size: 55189808 ratio: 0.19491
|
 |
et25.5_3bpw Color Size: 58778876 Compression: 13.312892601663965% Global MSE: 10.7208118 Global RMSE: 3.27426507785 Global PSNR: 37.8285255 Global MaxR: 25 Global MaxG: 25 Global MaxB: 25 Global Max Length: 25.4950981 MSE: 27.684025 RMSE: 5.26156108014 PSNR: 33.708511 ssim: 0.948755 msssim: 0.610707
headers_size: 3589068 weights_size: 55189808 ratio: 0.0650314
|
 |
Ours_565_RGB |
et6.38_3bpw Color Size: 82830688 Compression: 18.760414089339445% Global MSE: 1.25477135 Global RMSE: 1.12016576898 Global PSNR: 47.1451569 Global MaxR: 6 Global MaxG: 6 Global MaxB: 6 Global Max Length: 6.3245554 MSE: 1.921343 RMSE: 1.38612517472 PSNR: 45.294754 ssim: 0.997077 msssim: 0.964594
headers_size: 27640880 weights_size: 55189808 ratio: 0.500833
|
 |
et9.56_3bpw Color Size: 68361472 Compression: 15.483265362673118% Global MSE: 2.64377284 Global RMSE: 1.62596827767 Global PSNR: 43.9085617 Global MaxR: 9 Global MaxG: 9 Global MaxB: 9 Global Max Length: 9.53939247 MSE: 4.598335 RMSE: 2.1443728687 PSNR: 41.504799 ssim: 0.993285 msssim: 0.92031
headers_size: 13171664 weights_size: 55189808 ratio: 0.238661
|
 |
et12.8_3bpw Color Size: 62830480 Compression: 14.230544870422424% Global MSE: 4.42772484 Global RMSE: 2.104215968 Global PSNR: 41.6689949 Global MaxR: 12 Global MaxG: 12 Global MaxB: 12 Global Max Length: 12.7279224 MSE: 9.826691 RMSE: 3.13475533336 PSNR: 38.20673 ssim: 0.984448 msssim: 0.830861
headers_size: 7640672 weights_size: 55189808 ratio: 0.138444
|
 |

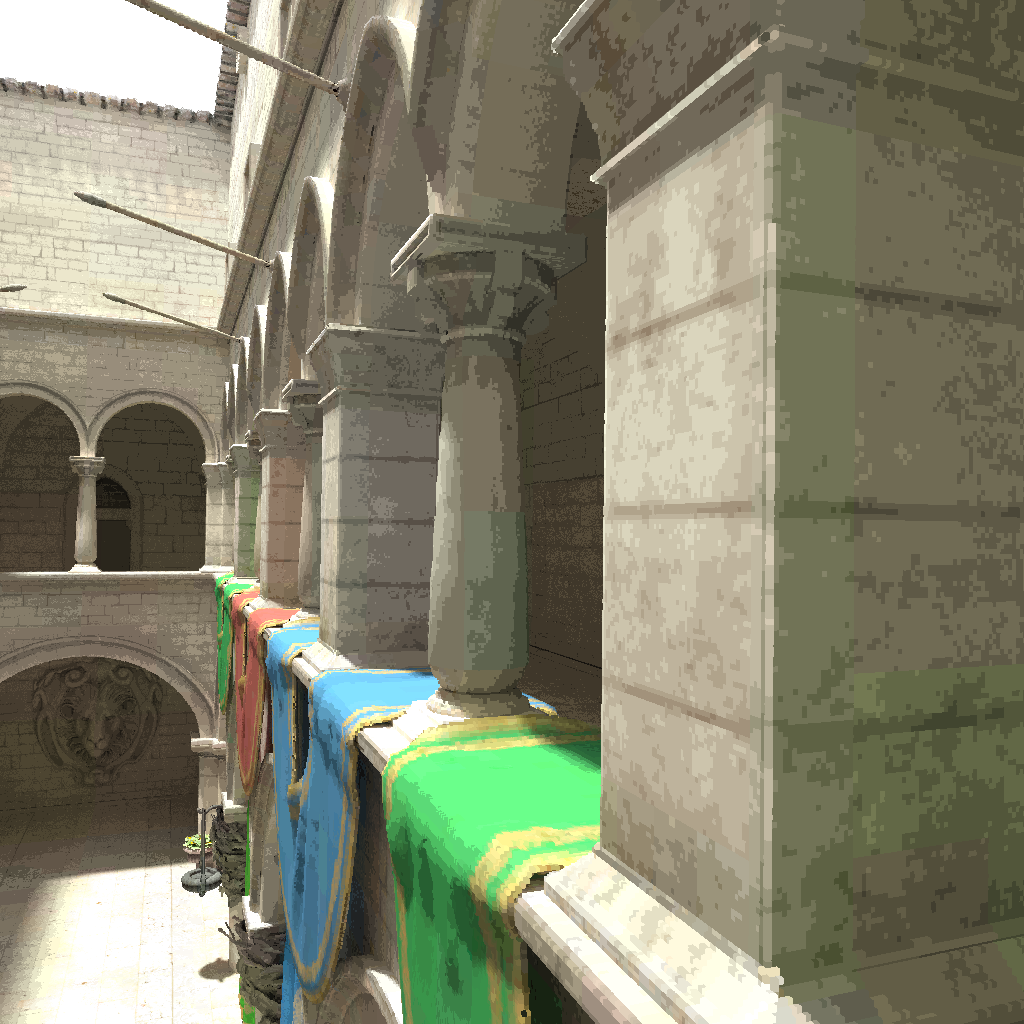

et25.5_3bpw Color Size: 57619144 Compression: 13.05022361897173% Global MSE: 11.2291946 Global RMSE: 3.35099904506 Global PSNR: 37.6273155 Global MaxR: 25 Global MaxG: 25 Global MaxB: 25 Global Max Length: 25.4950981 MSE: 28.276985 RMSE: 5.3176108357 PSNR: 33.616474 ssim: 0.945167 msssim: 0.557995
headers_size: 2429336 weights_size: 55189808 ratio: 0.0440178
|
 |
Ours_565_VARBIT_RGB |

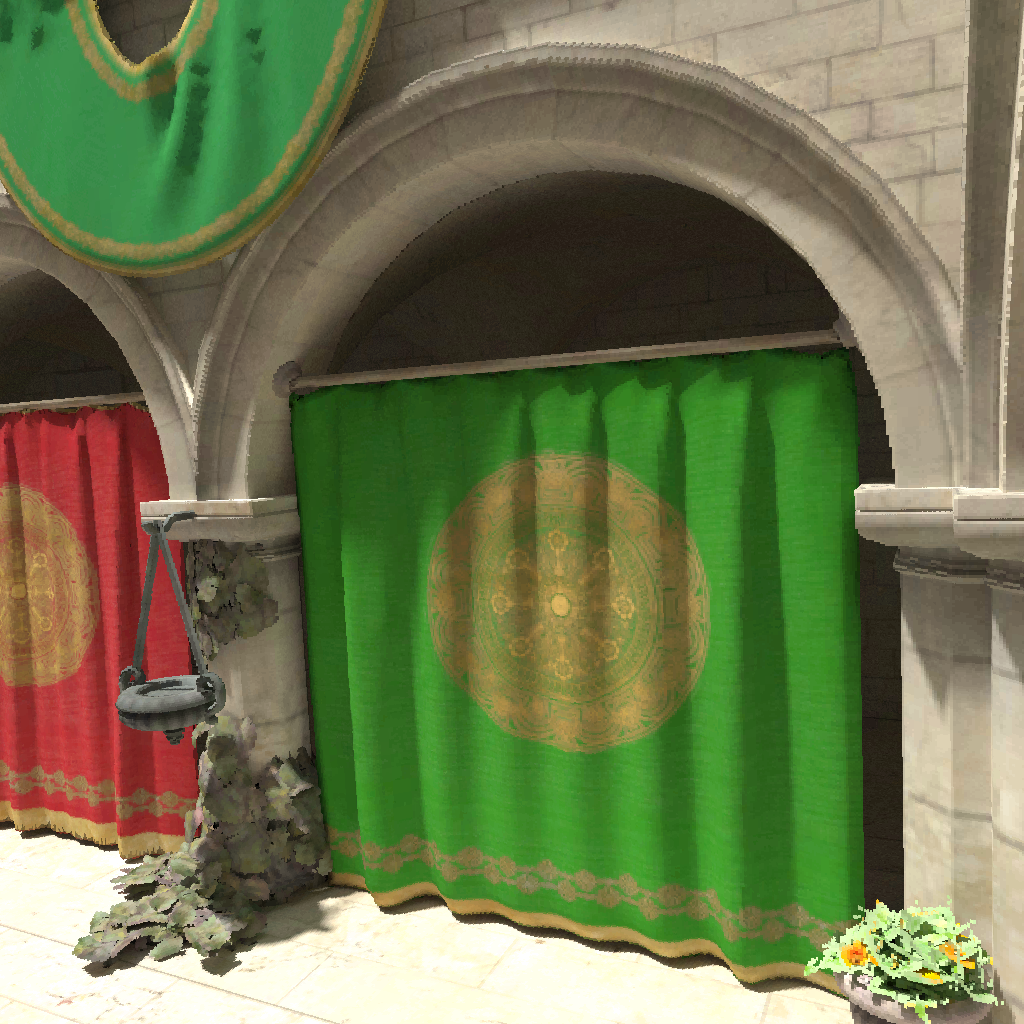

et6.38 Color Size: 48567164 Compression: 11.000030662365855% Global MSE: 1.59853172 Global RMSE: 1.26433054222 Global PSNR: 46.0935898 Global MaxR: 6 Global MaxG: 6 Global MaxB: 6 Global Max Length: 6.3245554 MSE: 2.706597 RMSE: 1.645173851 PSNR: 43.806568 ssim: 0.995941 msssim: 0.94616
headers_size: 26111848 weights_size: 22311588 ratio: 1.17033
|
 |
et9.56 Color Size: 34740872 Compression: 7.868498503172377% Global MSE: 3.34191632 Global RMSE: 1.8280908949 Global PSNR: 42.8908463 Global MaxR: 9 Global MaxG: 9 Global MaxB: 9 Global Max Length: 9.53939247 MSE: 6.701561 RMSE: 2.588737337 PSNR: 39.869045 ssim: 0.989128 msssim: 0.860178
headers_size: 15427624 weights_size: 19169520 ratio: 0.8048
|
 |
et12.8 Color Size: 27167912 Compression: 6.153290421331937% Global MSE: 5.03557205 Global RMSE: 2.24400803252 Global PSNR: 41.1103134 Global MaxR: 12 Global MaxG: 12 Global MaxB: 12 Global Max Length: 12.7279224 MSE: 9.577398 RMSE: 3.09473714554 PSNR: 38.318329 ssim: 0.980678 msssim: 0.68742
headers_size: 13392920 weights_size: 13631264 ratio: 0.982515
|
 |
et25.5 Color Size: 16669808 Compression: 3.775563241365125% Global MSE: 13.2631989 Global RMSE: 3.64186750171 Global PSNR: 36.9043198 Global MaxR: 25 Global MaxG: 25 Global MaxB: 25 Global Max Length: 25.4950981 MSE: 19.332203 RMSE: 4.39684011536 PSNR: 35.26799 ssim: 0.935046 msssim: 0.374682
headers_size: 7153272 weights_size: 9372808 ratio: 0.763194
|
 |
Dado |
quantize256_RGB Color Size: 49498041 Compression: 11.210866023122994% Global MSE: 25.01618 Global RMSE: 5.00161773829 Global PSNR: 34.1485901 Global MaxR: 24 Global MaxG: 24 Global MaxB: 24 Global Max Length: 25.3179779 MSE: 44.206558 RMSE: 6.64880124534 PSNR: 31.675936 ssim: 0.931213 msssim: 0.640379
nof_blocks: 1478942 blocks_size: 21821428 palettes_size: 4012776 bits_per_palette_entry: 8
|
 |

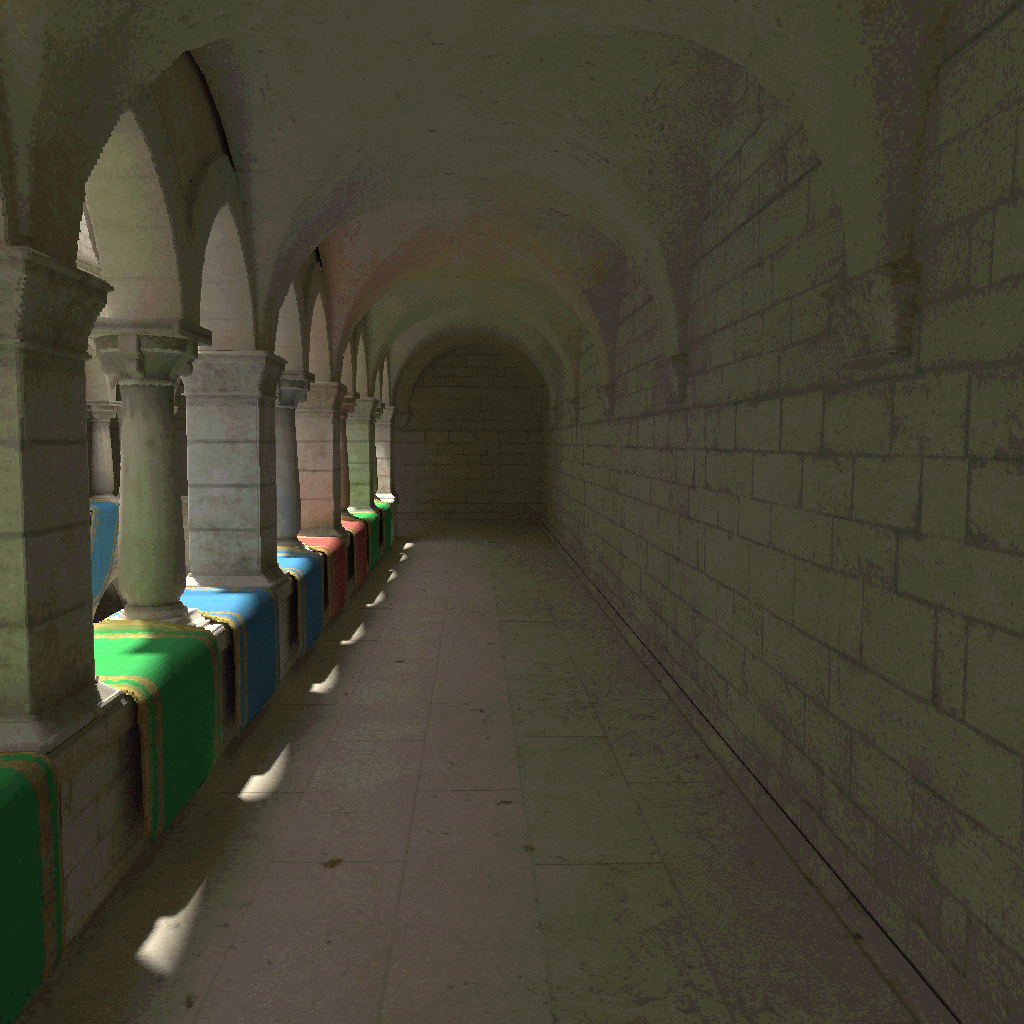

quantize2048_RGB Color Size: 67249021 Compression: 15.231305105937116% Global MSE: 4.95434856 Global RMSE: 2.22583659778 Global PSNR: 41.1809349 Global MaxR: 10 Global MaxG: 10 Global MaxB: 10 Global Max Length: 10.4880886 MSE: 8.121691 RMSE: 2.84985806664 PSNR: 39.03434 ssim: 0.986507 msssim: 0.877137
nof_blocks: 1310814 blocks_size: 38036324 palettes_size: 8233532 bits_per_palette_entry: 11
|
 |

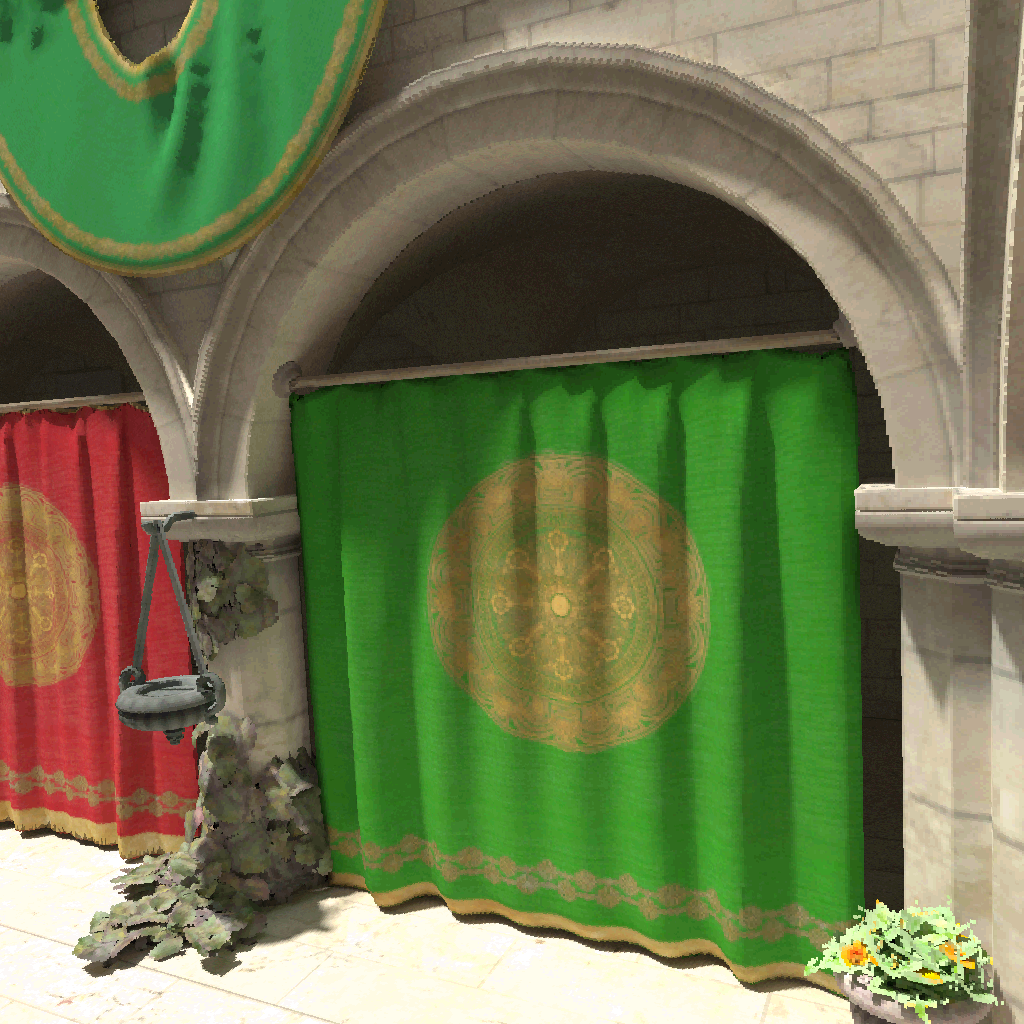

quantize4096_RGB Color Size: 75289269 Compression: 17.052349763455634% Global MSE: 3.05838251 Global RMSE: 1.7488231786 Global PSNR: 43.2758827 Global MaxR: 7 Global MaxG: 7 Global MaxB: 7 Global Max Length: 7.8740077 MSE: 3.044082 RMSE: 1.7447297785 PSNR: 43.296242 ssim: 0.995567 msssim: 0.942624
nof_blocks: 1141711 blocks_size: 46886188 palettes_size: 10123420 bits_per_palette_entry: 12
|
 |
quantize16384_RGB Color Size: 93448149 Compression: 21.16517456817806% Global MSE: 0.954944849 Global RMSE: 0.977212796171 Global PSNR: 48.3310204 Global MaxR: 4 Global MaxG: 4 Global MaxB: 4 Global Max Length: 4.35889912 MSE: 1.18727 RMSE: 1.08961919954 PSNR: 47.385307 ssim: 0.998331 msssim: 0.974607
nof_blocks: 846089 blocks_size: 65481052 palettes_size: 14380524 bits_per_palette_entry: 14
|
 |
noquantize_RGB Color Size: 164414190 Compression: 37.23835164285165% Global MSE: 0 Global RMSE: 0.0 Global PSNR: -1 Global MaxR: 0 Global MaxG: 0 Global MaxB: 0 Global Max Length: 0 MSE: 0.0 RMSE: 0.0 PSNR: -1.0 ssim: 1.0 msssim: 1.0
nof_blocks: 665024 blocks_size: 80483784 palettes_size: 71006608 bits_per_palette_entry: 20
|
 |
bc1 |
bc1 Color Size: 73586407 Compression: 16.666666666666664% Global MSE: 4.62243748 Global RMSE: 2.14998546042 Global PSNR: 41.4820938 Global MaxR: 126 Global MaxG: 112 Global MaxB: 163 Global Max Length: 217.19577 MSE: 2.864161 RMSE: 1.69238323083 PSNR: 43.560829 ssim: 0.996748 msssim: 0.955354
|
 |
bc7 |
bc7 Color Size: 147172814 Compression: 33.33333333333333% Global MSE: 0.511582732 Global RMSE: 0.71525011849 Global PSNR: 51.0416412 Global MaxR: 70 Global MaxG: 50 Global MaxB: 61 Global Max Length: 93.0806122 MSE: 0.407502 RMSE: 0.638358833259 PSNR: 52.029503 ssim: 0.999472 msssim: 0.991885
|
 |
astc |
4x4 Color Size: 150995520 Compression: 34.19914224103916% Global MSE: 0.632287443 Global RMSE: 0.795165041359 Global PSNR: 50.1216583 Global MaxR: 50 Global MaxG: 45 Global MaxB: 49 Global Max Length: 59.8080254 MSE: 0.385074 RMSE: 0.620543310334 PSNR: 52.275364 ssim: 0.999511 msssim: 0.992438
|
 |
jpeg |
95 Color Size: 51783322 Compression: 11.728461843050262% Global MSE: 3.06114268 Global RMSE: 1.74961215131 Global PSNR: 43.271965 Global MaxR: 28 Global MaxG: 19 Global MaxB: 39 Global Max Length: 41.6173058 MSE: 3.530447 RMSE: 1.87894837609 PSNR: 42.652508 ssim: 0.995649 msssim: 0.930018
|
 |
85 Color Size: 28330714 Compression: 6.416654731717866% Global MSE: 10.3408833 Global RMSE: 3.21572438185 Global PSNR: 37.9852257 Global MaxR: 77 Global MaxG: 46 Global MaxB: 95 Global Max Length: 97.7599106 MSE: 10.208843 RMSE: 3.19512800996 PSNR: 38.041039 ssim: 0.987543 msssim: 0.824228
|
 |
75 Color Size: 20811271 Compression: 4.713567774367169% Global MSE: 18.873085 Global RMSE: 4.34431640192 Global PSNR: 35.3723755 Global MaxR: 103 Global MaxG: 86 Global MaxB: 170 Global Max Length: 170.047058 MSE: 15.690595 RMSE: 3.96113556951 PSNR: 36.174408 ssim: 0.980824 msssim: 0.765735
|
 |

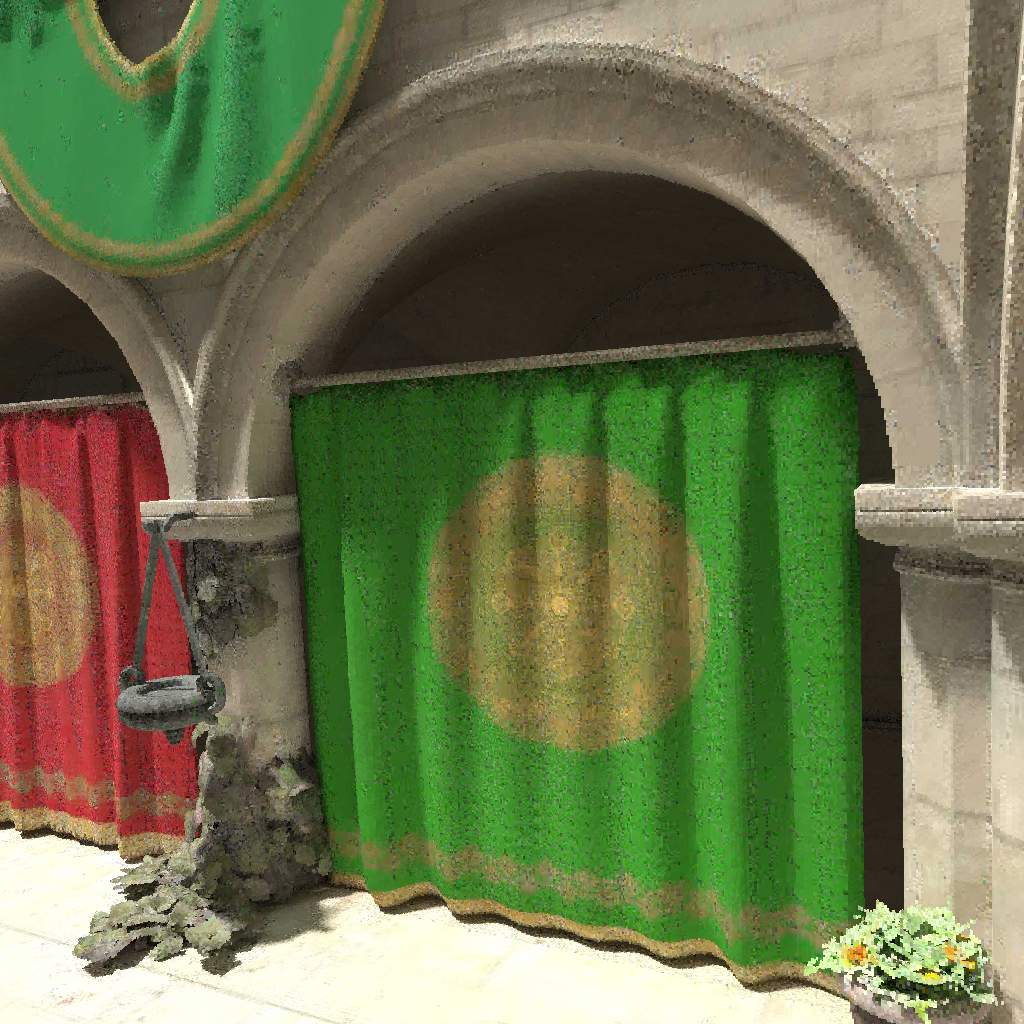

50 Color Size: 13619464 Compression: 3.0846874568378735% Global MSE: 41.4185524 Global RMSE: 6.4357246989 Global PSNR: 31.9588528 Global MaxR: 147 Global MaxG: 113 Global MaxB: 185 Global Max Length: 188.793533 MSE: 24.812592 RMSE: 4.98122394598 PSNR: 34.184082 ssim: 0.967972 msssim: 0.662163
|
 |
jp2k |
x5 Color Size: 88551298 Compression: 20.056081372021147% Global MSE: 0.863256276 Global RMSE: 0.929115857146 Global PSNR: 48.7694054 Global MaxR: 13 Global MaxG: 8 Global MaxB: 12 Global Max Length: 25 MSE: 1.093052 RMSE: 1.04549127208 PSNR: 47.744396 ssim: 0.998235 msssim: 0.975586
|
 |
x10 Color Size: 44512198 Compression: 10.081616930510911% Global MSE: 4.24795723 Global RMSE: 2.06105730876 Global PSNR: 41.848999 Global MaxR: 40 Global MaxG: 24 Global MaxB: 39 Global Max Length: 53.9351463 MSE: 6.923906 RMSE: 2.63133160206 PSNR: 39.727291 ssim: 0.986857 msssim: 0.812618
|
 |
x20 Color Size: 22494288 Compression: 5.094756155168712% Global MSE: 18.0442657 Global RMSE: 4.24785424656 Global PSNR: 35.5674095 Global MaxR: 72 Global MaxG: 53 Global MaxB: 160 Global Max Length: 160.003128 MSE: 20.967754 RMSE: 4.57905601625 PSNR: 34.915283 ssim: 0.949503 msssim: 0.547717
|
 |

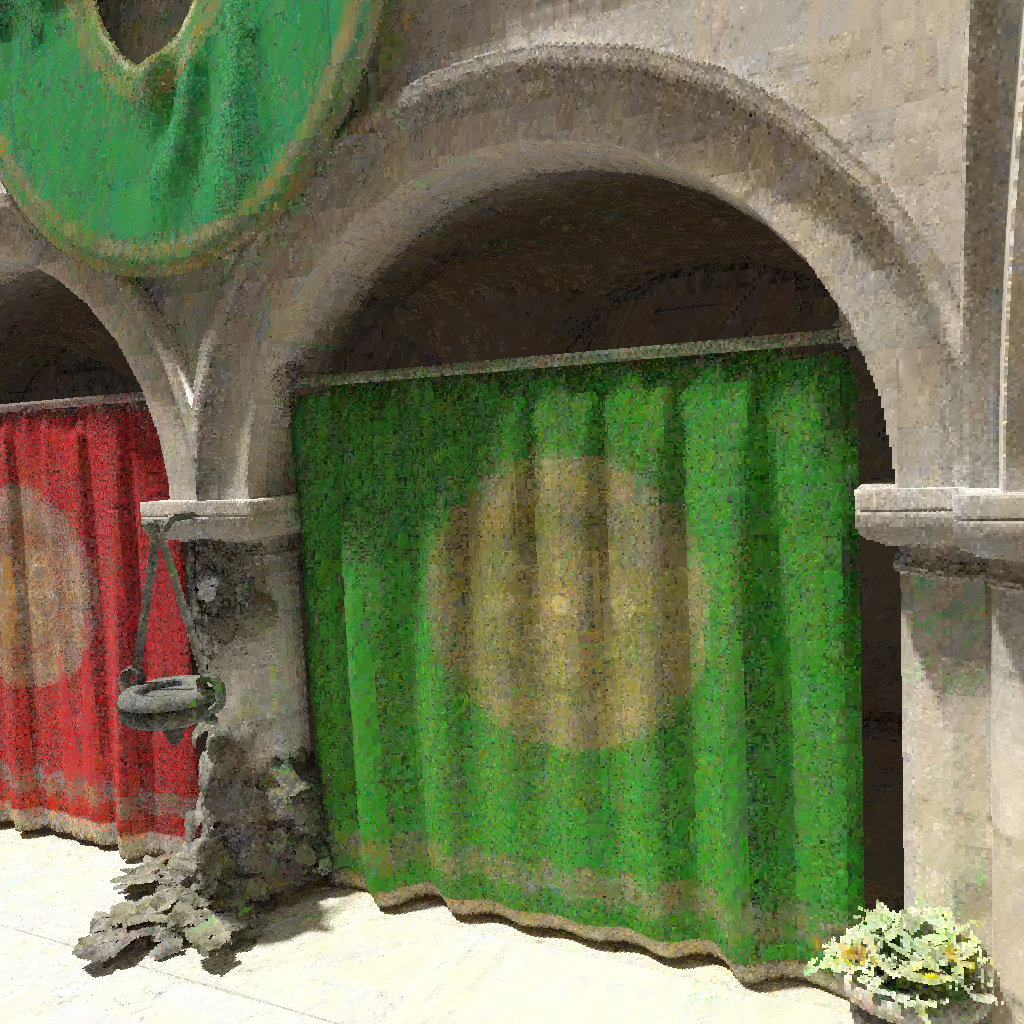

x40 Color Size: 11322415 Compression: 2.564426289581806% Global MSE: 68.4679184 Global RMSE: 8.27453433131 Global PSNR: 29.7759304 Global MaxR: 192 Global MaxG: 189 Global MaxB: 225 Global Max Length: 441.672943 MSE: 68.096046 RMSE: 8.25203284046 PSNR: 29.799585 ssim: 0.856573 msssim: 0.338997
|
 |
x50 Color Size: 9056466 Compression: 2.0512089957048727% Global MSE: 101.39933 Global RMSE: 10.0697234322 Global PSNR: 28.0704517 Global MaxR: 193 Global MaxG: 189 Global MaxB: 250 Global Max Length: 441.672943 MSE: 91.072075 RMSE: 9.54316902292 PSNR: 28.536951 ssim: 0.816923 msssim: 0.286672
|
 |
png |
png Color Size: 132703513 Compression: 30.05616535492305% Global MSE: 0 Global RMSE: 0.0 Global PSNR: -1 Global MaxR: 0 Global MaxG: 0 Global MaxB: 0 Global Max Length: 0 MSE: 0.0 RMSE: 0.0 PSNR: -1.0 ssim: 1.0 msssim: 1.0
|
 |
png_lossy |
100 Color Size: 54886743 Compression: 12.431359095980865% Global MSE: 0.913544655 Global RMSE: 0.955795299737 Global PSNR: 48.5235062 Global MaxR: 71 Global MaxG: 84 Global MaxB: 90 Global Max Length: 111.112556 MSE: 1.325614 RMSE: 1.15135311699 PSNR: 46.906631 ssim: 0.99848 msssim: 0.977504
|
 |
90 Color Size: 35696307 Compression: 8.084896032496871% Global MSE: 2.63521791 Global RMSE: 1.62333542745 Global PSNR: 43.9226379 Global MaxR: 74 Global MaxG: 85 Global MaxB: 112 Global Max Length: 120.772514 MSE: 2.328147 RMSE: 1.52582666119 PSNR: 44.460701 ssim: 0.997385 msssim: 0.962718
|
 |

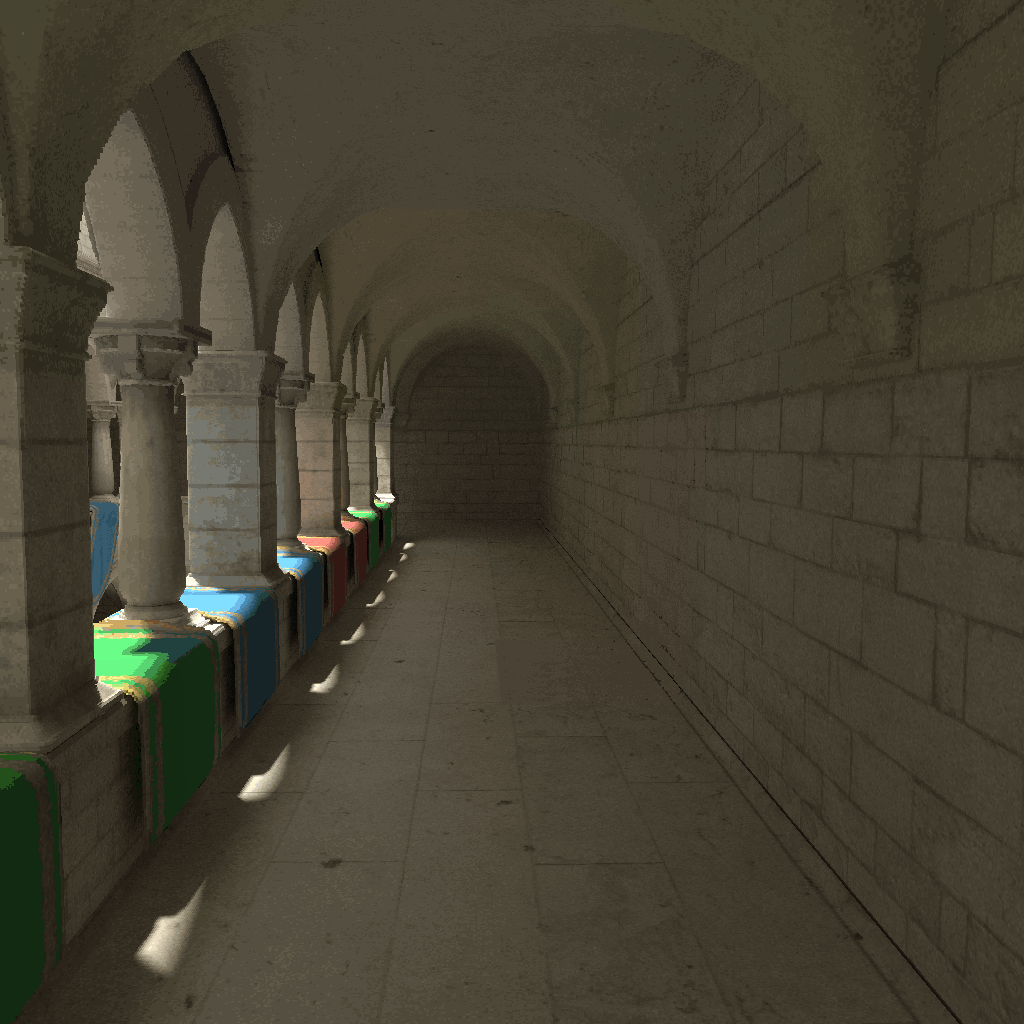

80 Color Size: 26405466 Compression: 5.9806031839548845% Global MSE: 5.42738152 Global RMSE: 2.32967412313 Global PSNR: 40.7848969 Global MaxR: 83 Global MaxG: 77 Global MaxB: 140 Global Max Length: 140.178452 MSE: 6.125616 RMSE: 2.47499818182 PSNR: 40.259304 ssim: 0.991814 msssim: 0.895119
|
 |
70 Color Size: 21627726 Compression: 4.898487569857841% Global MSE: 8.70963383 Global RMSE: 2.95120887604 Global PSNR: 38.7308044 Global MaxR: 88 Global MaxG: 81 Global MaxB: 172 Global Max Length: 192.844498 MSE: 10.365818 RMSE: 3.21959904336 PSNR: 37.97477 ssim: 0.984624 msssim: 0.828077
|
 |
60 Color Size: 19203444 Compression: 4.349409259783536% Global MSE: 11.5839796 Global RMSE: 3.4035245849 Global PSNR: 37.4922256 Global MaxR: 88 Global MaxG: 88 Global MaxB: 179 Global Max Length: 205.394745 MSE: 14.977773 RMSE: 3.87011278905 PSNR: 36.376331 ssim: 0.977022 msssim: 0.749028
|
 |
50 Color Size: 16640853 Compression: 3.7690051914071576% Global MSE: 15.2127857 Global RMSE: 3.90035712467 Global PSNR: 36.3087158 Global MaxR: 113 Global MaxG: 90 Global MaxB: 201 Global Max Length: 208.693558 MSE: 18.433556 RMSE: 4.29343172765 PSNR: 35.474712 ssim: 0.967794 msssim: 0.643217
|
 |
40 Color Size: 14895703 Compression: 3.373744238751413% Global MSE: 21.3009338 Global RMSE: 4.61529346846 Global PSNR: 34.846817 Global MaxR: 105 Global MaxG: 89 Global MaxB: 195 Global Max Length: 205.727982 MSE: 30.954466 RMSE: 5.56367378627 PSNR: 33.223572 ssim: 0.944071 msssim: 0.446117
|
 |

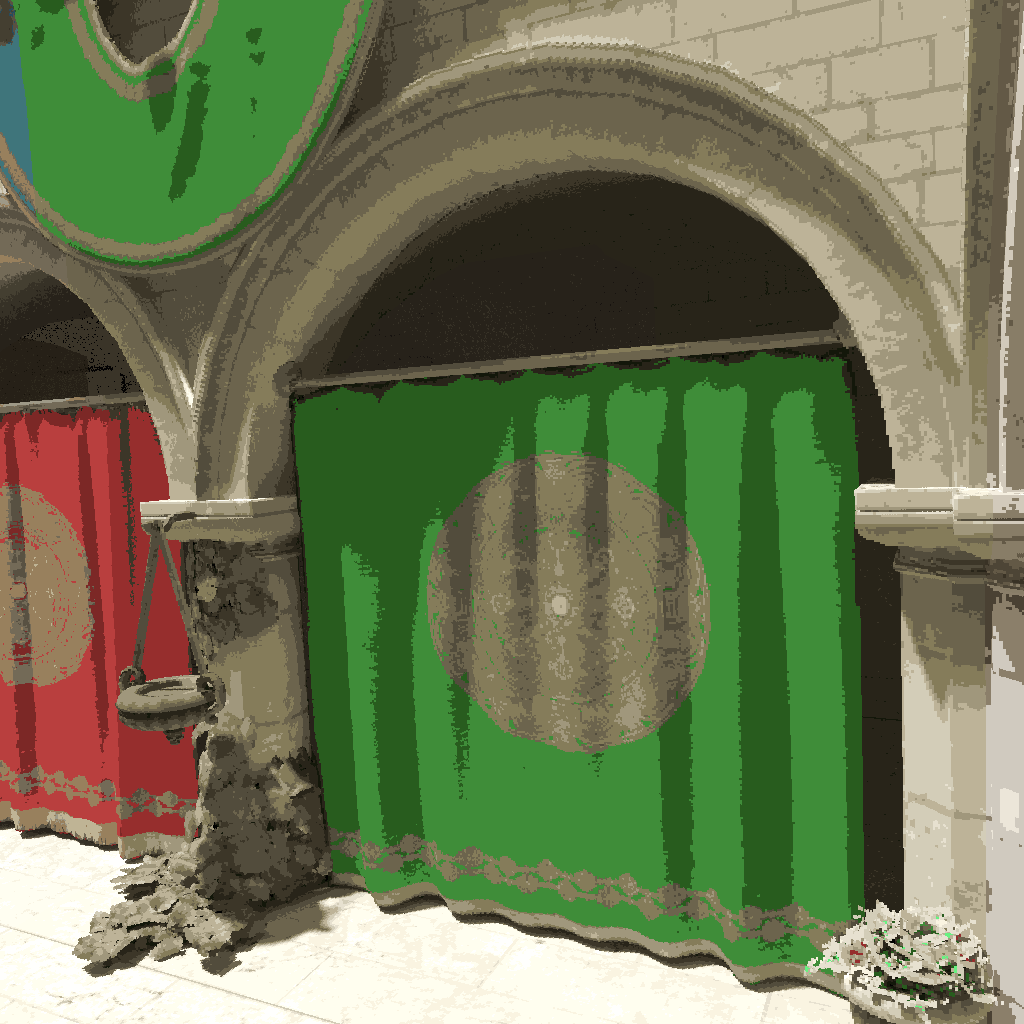

30 Color Size: 13613956 Compression: 3.0834399438291187% Global MSE: 26.4237442 Global RMSE: 5.14040311649 Global PSNR: 33.9108582 Global MaxR: 105 Global MaxG: 94 Global MaxB: 201 Global Max Length: 207.954315 MSE: 38.469173 RMSE: 6.20235221509 PSNR: 32.279675 ssim: 0.929323 msssim: 0.367319
|
 |
20 Color Size: 12289611 Compression: 2.783487580797361% Global MSE: 30.7299862 Global RMSE: 5.5434633759 Global PSNR: 33.2551804 Global MaxR: 105 Global MaxG: 96 Global MaxB: 198 Global Max Length: 209.143494 MSE: 45.009636 RMSE: 6.70892211909 PSNR: 31.597748 ssim: 0.917251 msssim: 0.276371
|
 |

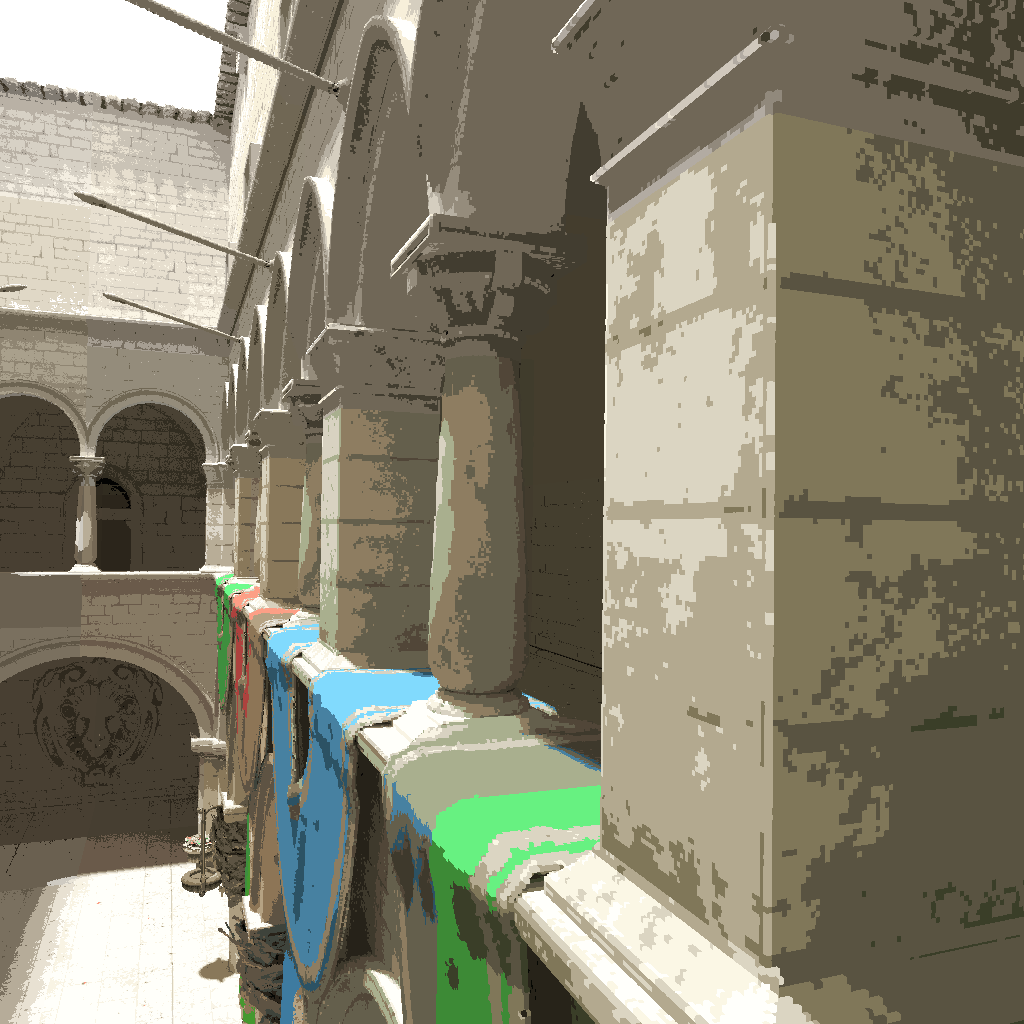

10 Color Size: 10025249 Compression: 2.270629728304758% Global MSE: 44.6652374 Global RMSE: 6.68320562305 Global PSNR: 31.6311054 Global MaxR: 107 Global MaxG: 117 Global MaxB: 194 Global Max Length: 209.499405 MSE: 49.682629 RMSE: 7.04859056833 PSNR: 31.168758 ssim: 0.913236 msssim: 0.303543
|
 |
