Grammars as Software Libraries

Author: Aarne Ranta <aarne (at) cs.chalmers.se>
Last update: Sat Mar 4 14:16:15 2006

Setting

Current funding

Previous funding

Main applications

People

Staff contributions to grammar libraries:

Student projects on grammar libraries:

Technology, also:

Various grammar library contributions from the multilingual Chalmers community:

Resource library patches and suggestions from the WebALT staff:

Software Libraries

The main device of division of labour in programming.

Instead of writing a sorting algorithm over and over again, the programmers take it from a library. You write (in Haskell),

    Data.List.sort xs

instead of a lot of code actually implementing sorting.

Practical advantages:

Abstraction

Libraries promote abstraction: you abstract away from details.

The use of libraries is therefore a good programming style.

It is also scientifically interesting to create libraries: you have to think about abstractions on your domain of expertise.

Notice: libraries can bring abstraction to almost any language, if it just has a support for functions or macros.

Grammars as libraries?

Example: we want to create a GUI (Graphical User Interface) button that says yes, and localize it to different languages:

    Yes   Ja   Kyllä   Oui   Ja   Sė

Possible ways to do this:

  1. Go around dictionaries to find the word in different languages
        yesButton english = button "Yes"
    yesButton swedish = button "Ja"
    yesButton finnish = button "Kyllä"

  2. Hire more programmers to perform localization in different languages

3. Use a library Text such that you can write

    yesButton lang = button (Text.render lang Text.Yes)

The library has an API (Application Programmer's Interface) with:

  1. A repository of text elements such as
        Yes    : Text
    No     : Text
  2. A function rendering text elements in different languages:
        render : Language -> Text -> String

A slightly more advanced example

This is what you often see as a feedback from a program:

    You have 1 messages.

Or perhaps with a little more thought:

    You have 1 message(s).

The code that should be written is of course

    mess n = "You have" +++ show n +++ messages ++ "."
      where
        messages = if n==1 then "message" else "messages"

(E.g. VoiceXML supports this.)

Problems with the more advanced example

The same as with "Yes": you have to know the words "you", "have", "message".

Moreover, you have to know the inflection of the equivalent of "message":

    if n == 1 then "meddelande" else "meddelanden"

Moreover, you have to know the congruence with different numbers (e.g. Arabic):

    if n == 1 then "risAlaö" else
    if n == 2 then "risAlatAn" else
    if n < 11 then "rasA'il" else
                   "risAlaö"

More problems with the advanced example

You also have to know the case required by the verb "have" e.g. Finnish:

    1 viesti   -- nominative
    4 viestiä  -- partitive

Moreover, you have to know what is the proper way to politely address the user:

    Du har 3 meddelanden / Ni har 3 meddelanden
    Vous avez 3 messages / Tu as 3 messages

(This can also depend on country and the kind of program.)

A library-based solution

In analogy with the "Yes" case, you write

    mess lang n = render lang (Text.YouHaveMessages n)

Hmm, is this so smart? What about if you want to say

    You have 4 documents.
    You have 5 jewels.
    I have 7 surprises.

It is time to move from canned text to a grammar.

An improved library-based solution

You may want to write

    mess  lang n = render lang (Have PolYou (Num n Message))
    sword lang n = render lang (Have FamYou (Num n Jewel))
    surpr lang n = render lang (Have I      (Num n Surprise))

For this purpose, you need a library with the API

    Have    : NounPhrase -> NounPhrase -> Sentence

    PolYou  : NounPhrase
    FamYou  : NounPhrase

    Num     : Int -> Noun -> NounPhrase

    Message : Noun
    Jewel   : Noun

The ultimate solution?

The library API for language will certainly grow big and become difficult to use. Why couldn't I just write

    mess lang n = render lang (parse english "you have n messages")

To this end, the API should provide the top-level function

    parse : Language -> String -> Sentence

The library that we will present actually has this as well!

The only complication is that parse does not always return just one sentence. Those may be zero:

    "you have n mesaggse"

or many:

    "you have n messages"

    Have PolYou  (Num n Message)
    Have FamYou  (Num n Message)
    Have PlurYou (Num n Message)

Thus some amount of interaction is needed.

The components of a grammar library

The library has construction functions like

    Have   : NounPhrase -> NounPhrase -> Sentence
    PolYou : NounPhrase

These functions build grammatical structures, which can have different realizations in different languages.

Therefore we also need realization functions,

    render : Language -> Sentence -> String
    parse  : Language -> String   -> [Sentence]

Both of them require linguistic expertise to write - but, one this is done, they can be used with very little linguistic knowledge by application programmers!

Implementing a grammar library in GF

GF = Grammatical Framework

Those who know GF have already seen the introduction as a seduction argument leading to GF.

In GF,

Simplest possible example:

    abstract Text = {
      cat Text ;
      fun Yes : Text ;
      fun No  : Text ;
      }

    concrete TextEng of Text = {
      lin Yes = ss "yes" ;
      lin No  = ss "no" ;
      }

    concrete TextFin of Text = {
      lin Yes = ss "kyllä" ;
      lin No  = ss "ei" ;
      }

Linearization and parsing

The realizatin function is, for each language, implemented by linearization rules (lin).

The linearization rules directly give the render method:

    render english x = TextEng.lin x

The GF formalism moreover has the property of reversibility:

Applying GF

multilingual grammar = abstract syntax + concrete syntaxes

Examples of the idea:

Domain, ontology, idiom

An abstract syntax has other names:

The concrete syntax defines how the ontology is represented in a language.

The following requirements are made:

Benefit: translation via semantic model of domain can reach high quality.

Problem: the expertise of both a linguist and a domain expert are required.

Example domain

Arithmetic of natural numbers: abstract syntax

    cat Prop ; Nat ;
    fun Even : Nat -> Prop ;

Concrete syntax: mapping from abstract syntax trees to strings in a language (English, French, German, Swedish,...)

    lin Even x = {s = x.s ++ "is"  ++ "even"} ;
    lin Even x = {s = x.s ++ "est" ++ "pair"} ;
    lin Even x = {s = x.s ++ "ist" ++ "gerade"} ;
    lin Even x = {s = x.s ++ "är"  ++ "jämnt"} ;

Translation system

We can translate using the abstract syntax as interlingua:

    4 is even                  4 ist gerade
               \              /
                 Even (NInt 4)
               /              \
    4 est pair                  4 är jämnt

This idea is used e.g. in the WebALT project to generate mathematical teaching material in 7 languages.

But is it really so simple?

Difficulties with concrete syntax

The previous multilingual grammar breaks these rules in many situations:

    2 and 3 is even
    la somme de 3 et de 5 est pair
    wenn 2 ist gerade, dann 2+2 ist gerade
    om x är jämnt, summan av x och 2 är jämnt

All these sentences are grammatically incorrect.

Solving the difficulties

GF can express the linguistic rules that are needed to produce correct translations:

In addition to strings, we use parameters, tables, and record types. For instance, French:

    param Mod = Ind | Subj ;
    param Gen = Masc | Fem ;

    lincat Nat  = {s : Str ; g : Gen} ;
    lincat Prop = {s : Mod => Str} ;

    lin Even x = {s =
        table {
          m => x.s ++
               case m   of {Ind  => "est" ;  Subj => "soit"} ++
               case x.g of {Masc => "pair" ; Fem  => "paire"}
          }
        } ;

Linguistic knowledge dominates in the size of this grammar.

Application grammars vs. resource grammars

Application grammar ("semantic grammar")

Resource grammar ("syntactic grammar")

GF as programming language

The expressive power is between TAG and HPSG.

The language is more high-level: a modern, typed functional programming language.

It enables linguistic generalizations and abstractions.

But we don't want to bother application grammarians with these details.

We have built a module system that can hide details.

Concrete syntax using library

Assume the following API

    cat S ; NP ; A ;

    fun predA : A -> NP -> S ;

    oper regA : Str -> A ;

Now implement Even for four languages

    lincat
      Prop = S ;
      Nat  = NP ;
    lin
      Even = predA (regA "even") ;   -- English
      Even = predA (regA "jämn") ;   -- Swedish
      Even = predA (regA "pair") ;   -- French
      Even = predA (regA "gerade") ; -- German

Notice: the choice of adjective is domain expert knowledge.

Design questions for the grammar library

What should there be in the library?

How do we organize and present the library?

Where to get the data from?

Extra constraint: we want open-source free software and hence cannot use existing proprietary resources.

Design decisions

Coverage, for each language:

Organization:

Presentation:

Design decisions, cont'd

Where do we get the data from?

The resource grammar library is entirely open-source free software (under GNU GPL license).

Success criteria and evaluation

Grammatical correctness of everything generated.

Semantic coverage: you can express whatever you want.

Usability as library for non-linguists.

Evaluation: tested in third-party projects.

Tools for regression testing (treebank generation and comparison)

These are not our success criteria

Language coverage:

Semantic correctness:

Linguistic innovation in syntax:

Where is semantics?

Application grammars use domain-specific semantics to guarantee semantic well-formedness.

GF incorporates a Logical Framework and can express

Language-independent API is a rough semantic model.

But we do not try to give semantics once and for all for the whole language.

Representations in different APIs

Grammar composition: any grammar can serve as resource to another one.

No fixed set of representation levels; here some examples for

    2 is even
    2 är jämnt

In Arithm

    Even 2

In Predication (high level resource API)

    predA (IntNP 2) (regA "even")
    predA (IntNP 2) (regA "jämn")

In Lang (ground level resource API)

    UseCl TPres ASimul PPos (PredVP (UsePN (IntPN 2))
      (UseComp (CompAP (PositA (regA "even")))))
    UseCl TPres ASimul PPos (PredVP (UsePN (IntPN 2))
      (UseComp (CompAP (PositA (regA "jämn")))))

Languages

The current GF Resource Project covers ten languages:

Implementation of API v 1.0 projected for the end of February.

In addition, we have parts (morphology) of Arabic, Estonian, Latin, and Urdu

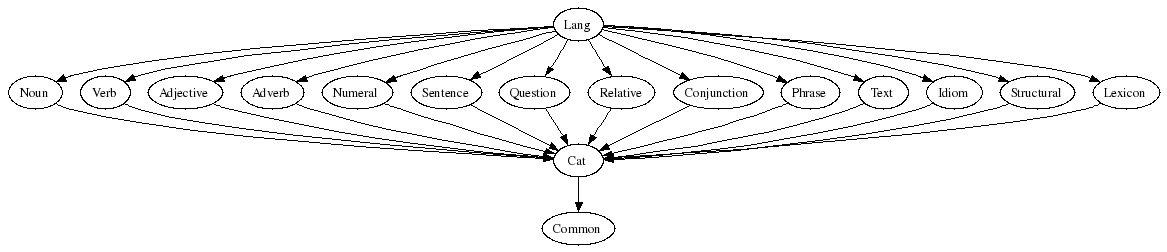

Library structure 1: language-independent API

Resource index page

Examples of each category

Cf. "matrix" in BLARK, LinGo

Library structure 2: language-dependent APIs

Difficulties encountered

English: negation and auxiliary vs. non-auxiliary verbs

Finnish: object case

German: double infinitives

Romance: clitic pronouns

Scandinavian: determiners

In particular: how to make the grammars efficient

How much can be language-independent?

For the ten languages we have considered, it is possible to implement the current API.

Reservations:

Using the library

Simplest case: use the API in the same way for all languages.

In practice: use the API in different ways for different languages

    -- Eng: x's name is y
    Name x y = predNP (GenCN x (regN "name")) (StringNP y)
    -- Swe: x heter y
    Name x y = predV2 x heta_V2 (StringNP y)

This amounts to compile-time transfer.

Surprisingly, writing an application grammar requires more native-speaker knowledge than writing a resource grammar!

Parametrized modules

We can go even farther than share an abstract API: we can share implementations among related languages.

Exploited in two families:

The declarations of Scandinavian syntax differences

Lexicon extension

We cannot anticipate all vocabulary needed in application grammars.

Therefore we provide high-level paradigms to add new words.

Example heuristic, from ParadigsSwe:

    regV : (leker : Str) -> V ;

    regV leker = case leker of {
      lek + ("a" | "ar")  => conj1 (lek + "a") ;
      lek + "er"          => conj2 (lek + "a") ;
      bo  + "r"           => conj3 bo
      }

Example low-level morphological definition

    decl2Noun : Str -> N = \bil ->
      let
        bb : Str * Str = case bil of {
          pojk + "e"                 => <pojk + "ar",    bil  + "n"> ;
          nyck + "e" + l@("l" | "r") => <nyck + l + "ar",bil  + "n"> ;
          sock + "e" + "n"           => <sock + "nar",   sock + "nen"> ;
          _                          => <bil + "ar",     bil  + "en">
          } ;
      in mkN bil bb.p2 bb.p1 (bb.p1 + "na") ;

Some formats that can be generated from GF grammars

  -printer=lbnf           BNF Converter, thereby C/Bison, Java/JavaCup
  -printer=fullform       full-form lexicon, short format
  -printer=xml            XML: DTD for the pg command, object for st
  -printer=gsl            Nuance GSL speech recognition grammar
  -printer=jsgf           Java Speech Grammar Format
  -printer=srgs_xml       SRGS XML format
  -printer=srgs_xml_prob  SRGS XML format, with weights
  -printer=slf            a finite automaton in the HTK SLF format
  -printer=regular        a regular grammar in a simple BNF
  -printer=gfc-prolog     gfc in prolog format (also pg)

Use as program components

Haskell, Java, Prolog

Parsing, generation, translation

Push-button creation of spoken language translators (using Nuance)

Grammar library as linguistic resource

Can we use the libraries outside domain-specific fragments?

We seem to be approaching full coverage from below.

The resource API is not good for heavy-duty parsing (too abstract and therefore too inefficient).

Two ideas:

Corpus generation

The most general format is multilingual treebank generation:

    > gr -tr | l -multi
    UseCl TCond AAnter PNeg (PredVP (DetCN (DetSg DefSg NoOrd)
      (AdjCN (PositA young_A) (UseN woman_N))) (ComplV2 love_V2 (UsePron he_Pron)))

    The young woman wouldn't have loved him
    Den unga kvinnan skulle inte ha älskat honom
    Den unge kvinna ville ikke ha elska ham
    La joven mujer no lo habría amado
    La giovane donna non lo avrebbe amato
    La jeune femme ne l' aurait pas aimé
    Nuori nainen ei olisi rakastanut häntä

This is either exhaustive or random, possibly with probability weights attached to constructors.

A special case is corpus generation: just leave one language.

Can this be useful? Cf. Rebecca Jonson this afternoon.

Related work

CLE = Core Language Engine

LinGo Matrix project (HPSG)

Parsing detached from grammar (Nivre) - grammar detached from parsing

Demo

Stoneage grammar, based on the Swadesh word list.

Implemented as application on top of the resource grammar.

Illustrate generation and spoken-language parsing.
