Lab Assignment 4 -- Drawing Functions

In this Lab Assignment, you will design and implement a very simple graphical calculator.

The idea is to use the standard library Gtk2Hs for the graphical part. Read more about it here: using Gtk2Hs. If you want to do this lab on your own computer, you need to first install Gtk2Hs. Read more about that here: installing Gtk2Hs at home.

Assignments and Deadlines

In this lab, you have a little bit more freedom than in the previous labs; we will not guide you towards a solution as much as in the previous lab assignments.

The lab consists (again) of two parts.

Part I of the lab needs to be submitted before Monday October 15 at 9.00 in the morning.

Part II of the lab needs to be submitted before Wednesday October 24 at 9.00 in the morning.

There are also extra assignments. You can choose freely whether to do one of these.

The final deadline for the lab is on Monday (!) October 29 at 9.00 in the morning.

Hints

Some assignments have hints. Often, these involve particular standard Haskell functions that you could use. Some of these functions are defined in modules that you have to import yourself explicitly. You can use the following resources to find more information about those functions:

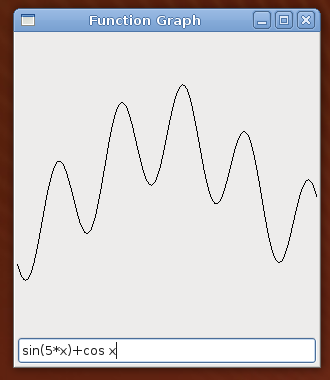

The graphical calculator you are going to implement is a program that produces a window that might look like this:

The window consists of a drawing area, and a text entry field below it. The user can type mathematical expressions in the text entry, which, after pressing return, will be graphically shown on the drawing area.

The lab assignment consists of two parts. In Part I, you will implement the parts of your program that have to do with expressions. In part II, you will implement the graphical part of your program.

In this part, you are going to design a datatype for modelling mathematical expressions containing a variable x. For example:

Put the answers for Part I in a module called Expr.hs.

Assignments

A. Design a (recursive) datatype Expr that represents expressions of the above kind. You may represent integer numbers by floating point numbers; it is not necessary to have two different constructor functions for this.

B. Implement a function showExpr :: Expr -> String that converts any expression to string. Use as little parentheses as possible. The strings that are produced should look something like the example expressions shown earlier. It is not required to show floating point numbers that represent integer numbers without the decimal part. For example, you may choose to always show 2.0 as "2.0" and not as "2". (But you are allowed to do this.) If you want to, you can from now on use this function as the default show function by making Expr an instance of the class Show: instance Show Expr where show = showExpr But you do not have to do this. (Also: see the hint on testing below!)

C. Implement a function eval :: Expr -> Double -> Double that, given an expression, and the value for the variable x, calculates the value of the expression.

D. Implement a function readExpr :: String -> Maybe Expr that, given a string, tries to interpret the string as an expression, and returns Just of that expression if it succeeds. Otherwise, Nothing will be returned.

The last assignment is about checking that your definition of readExpr matches up with your definition of showExpr. One could define a property that simply checks that, for any expression e1, if you show it, and then read it back in again as an expression e2, then e1 and e2 should be the same.

However, this is too strict; there is certain information loss in showing an expression. For example, the expressions "(1+2)+3" and "1+(2+3)" have different representations in your datatype (and are not equal), but showing them yields "1+2+3" for both. Read the lecture notes from Week 6 for 2 possible solutions to this problem.

E. Write a property prop_ShowReadExpr :: Expr -> Bool that says that first showing and then reading an expression (using your functions showExpr and readExpr) should produce "the same" result as the expression you started with. Also define a generator for expressions: arbExpr :: Int -> Gen Expr Do not forget to take care of the size argument in the generator. Make Expr an instance of the class Arbitrary and QuickCheck the result! instance Arbitrary Expr where arbitrary = sized arbExpr

Hints

* To design the datatype, you might be inspired by the Expr datatype discussed in the lectures in Week 4. Read the slides and look at the example code! It is important that your datatype is simple and elegant; try not to use too many data constructors for example. If two different cases can be effectively expressed using one constructor, then do that.

When designing your datatype Expr, think carefully about how you want to express the variable x. You may get inspired by the Expr datatype from the lectures, but remember that there is a difference; in your datatype you only have to represent one variable, called x, whereas in the lecture we allowed for several different variables!

* When showing and reading expressions, we have to decide where we allow and require parentheses. Parentheses are required only in the following cases:

* For the functions eval, showExpr, readExpr, arbExpr, and prop_ShowReadExpr also read the relevant slides for week 4 and week 5, and look at the example code that is provided.

* For the function readExpr, to allow spaces in the expression, simply filter out all spaces from the string before you use the parser. In this way, spaces will not mess up your parser and keep it nice and clean.

* For the function readExpr, to be able to parse floating point numbers (Doubles) and sin and cos, you only have to change the parser for factors.

To parse floating point numbers, do not try to adapt the function "number" from the lecture, instead take a look at the standard Haskell functions read and reads. Use it on the right type (Doubles), and see what happens!

  Main> read "17.34" :: Double
  ...
  Main> read "17.34cykel" :: Double
  ...
  Main> reads "17.34cykel" :: [(Double,String)]
  ...

* When working with the property prop_ShowReadExpr, it might be a good idea to make sure that the property you define will not crash, even if there is something wrong with your functions! A common way for the property to crash is when the readExpr function (unexpectedly) delivers Nothing. Instead of crashing, your property should return False in that case. You can do this by doing a case expression on the result of readExpr, or by adding that the result of readExpr should not be equal to Nothing before you check that the result is of the shape Just e.

* If you have a hard time understanding the generated counter examples for your property, it is probably a good idea to let Haskell derive the show function for your Expr datatype, instead of making your own instance of Show. So, use "deriving Show" on your expression datatype while testing!

* To solve the problem of associative operators (+ and *) in prop_ShowReadExpr, you can choose one of the two solutions mentioned in the lecture notes. If you decide to evaluate both sides of the equation before you compare, you might find that (x+y)+z is not always the same as x+(y+z) because of rounding errors! An easy way to fix that is to define a function "almostEqual", and use that instead of "==". "almostEqual x y" should only be True when x and y lie very close to each other (for example when their difference is less than 0.001).

In this part, you are going to implement the graphical part of the calculator. The graphical interface consists of two parts: (1) the drawing area, where the function is going to be drawn, and (2) the text entry field.

The drawing area is a panel widget of a certain size (you decide yourself, but let us suppose it has width and height of 300). A panel has a coordinate system that works in pixels. Here is how it works:

Perhaps surprising is that y-coordinates are upside down; they are 0 at the top, and 300 at the bottom.

The tricky thing using this panel to draw our functions is the following:

So, some conversion is needed between pixels (represented using Int) and floating point numbers (represented using Double).

Put the answers for Part II in a module called Calculator.hs. The module Calculator should of course import the module Expr.

In this part of the assignment, you will have to use Gtk2Hs. Make sure you write

  import Graphics.UI.Gtk
  import Graphics.UI.Gtk.Gdk.GC
  import Expr

Assignments

F. Implement a function with the following type. points :: Expr -> Double -> (Int,Int) -> [Point] The function gets three arguments; points exp scale (width,height): An expression exp A scaling value scale The width and height of the drawing area The type Point is already defined, and is just a pair of integers: type Point = (Int,Int) The idea is that points will calculate all the points of the graph in terms of pixels. The scaling value tells you the ratio between pixels and floating point numbers. The arguments width and height tell you how big the drawing area is. We assume that the origin (0,0) point is in the middle of our drawing area. For the panel and function coordinate systems above, we would use 0.04 for the scale (since 1 pixel corresponds to 0.04 in the floating point world, this is (6.0 + 6.0) / 300), and (300,300) for the width and height.

G. Implement a function with the following type. linez :: Expr -> Double -> (Int,Int) -> [(Point,Point)] The function gets the same arguments as points, only it will calculate the lines that are going to be drawn between the points (to get a smooth look). So simply create a line (as a pair of points) between each consecutive point generated by points.

H. Implement the graphical user interface that connects assigments A--G into a simple graphical calculator. When the user types in something that is not an expression, you may decide yourself what to do. The easiest thing is to draw nothing.

Hints

To convert back and forth between Ints and Doubles, the following functions might come in handy:

  round        :: Double -> Int
  fromIntegral :: Int -> Double

To implement the function points, it is probably a good idea to define the following two local helper functions:

  where
    pixToReal :: Int -> Double  -- converts a pixel x-coordinate to a real x-coordinate
    pixToReal x = ...

    realToPix :: Double -> Int  -- converts a real y-coordinate to a pixel y-coordinate
    realToPix y = ...

For an example use of the panels, and an example of how to build a graphical user interface, look at the examples provided in the lecture on Gtk2Hs of Week 6. In particular:

OBS: For the standard version of the assignment, you do not have to use a state variable to keep track of the state!

You can choose freely whether to do one of these. You will learn more when you do!

Extra Assignments

X. Change the type and implementation of the readExpr function so that it produces a useful error message when something goes wrong. Make sure this error message is displayed somewhere in your calculator when the user makes a mistake. Hint: Change the result type from Maybe Expr to Either String Expr, where the string can hold an error message.

Y. Implement some form of zooming. There are a number of ways to do this. Either the user clicks somehwere on the panel, and the drawing function zooms around that point. Or the user could have a text entry where the scaling factor can be given. Make sure you also add a way to zoom out after you have zoomed in.

Z. Add a button "Derive" that calculates the derivative of the function, and displays that instead. You could also add a button "Integrate" that goes the other way. A good idea here would probably be to also simplify the produced results.

P. Add a way for the user to enter multiple functions. These will all be drawn in a different color.

Q. Increase the expressiveness of the Expr datatype by adding more functions. Add at least -, / and tan. You have to deal with what happens when a function value is undefined! An example is the function 2/x, which is undefined in the point 0.
