The model is defined as a so called S-system. The S-system formalism (Savageau 1976, Voit 2000) is based on approximating kinetic laws with multivariate power-law functions. A model consists of n non-linear ODEs and the generic form of equation i reads
Xi'(t) = αi ∏j=1..n Xj(t)gij - βi ∏j=1..n Xj(t)hij
where X is a vector (length n) of variables, α and β are vectors (length n) of non-negative rate constants and g and h are matrices (n*n) of kinetic orders, that can be negative as well as positive.
The system was introduced by Hlavacek et al. (1996) and employed in Kikuchi et al. (2003). It represents a genetic network with 5 dependent variables, X1...X5, and 3 input variables X6-X8.
The parameters of the system are:
i | αi | gi1 | gi2 | gi3 | gi4 | gi5 | gi6 | gi7 | gi8 | βi | hi1 | hi2 | hi3 | hi4 | hi5 | hi6 | hi7 | hi8 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 5 | 1 | -1 | 1 | 10 | 2 | ||||||||||||
2 | 10 | 2 | 1 | 10 | 2 | |||||||||||||
3 | 10 | -1 | 1 | 10 | -1 | 2 | ||||||||||||
4 | 8 | 2 | -1 | 1 | 10 | 2 | ||||||||||||
5 | 10 | 2 | 1 | 10 | 2 |
Each row corresponds to one ODE according to Eq. 1, e.g. the first row gives X1'(t) = 5*X3(t)*(X5(t))-1*X6(t) - 10*(X1(t))2.
In most of the test problems, the input variables X6-X8 are not explicitly considered, and hence, a reduced S-system can be used:
i | αi | gi1 | gi2 | gi3 | gi4 | gi5 | βi | hi1 | hi2 | hi3 | hi4 | hi5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 5 | 1 | -1 | 10 | 2 | |||||||
2 | 10 | 2 | 10 | 2 | ||||||||
3 | 10 | -1 | 10 | -1 | 2 | |||||||
4 | 8 | 2 | -1 | 10 | 2 | |||||||
5 | 10 | 2 | 10 | 2 |
The system specification in the same format as the problem: ss_5genes and ss_5genes_8variables.
The system specification in SBML format: ss_5genes.xml.
A simple Matlab script for simulating the system is given in ss_5genes.m.

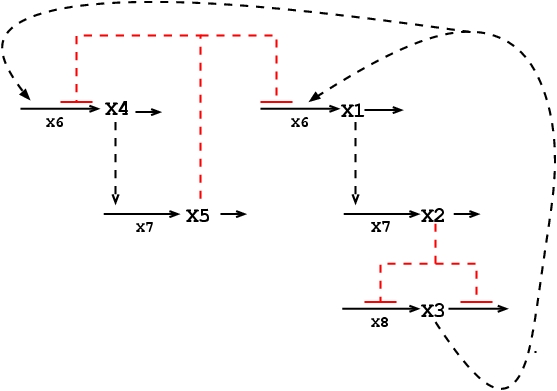

ss_5genes1 is presented in Kikuchi et al. (2003).
ss_5genes2 and ss_5genes3 are presented in Gennemark and Wedelin (2007).In ss_5genes2, 3 points are sampled at t=0 and the average value is considered.
ss_5genes4 is presented in Kimura et al. (2005).
ss_5genes5 is presented in Daisuke and Horton (2006).
ss_5genes6 is presented in Cho et al. (2006).
ss_5genes7 is presented in Tucker and Moulton (2006).
ss_5genes8 is presented in Tsai et al. (2005).
