# Functors, Applicative, and Monads

## A simple monadic EDSL for input/output (deep embedding)

We will develop a simple I/O EDSL in Haskell

-- Types data Program a -- Constructors return :: a -> Program a putC :: Char -> Program () getC :: Program (Maybe Char) -- Combinators (>>=) :: Program a -> (a -> Program b) -> Program b -- Run function type IOSem a run :: Program a -> IOSem a

We will use monads to handle the I/O effects!

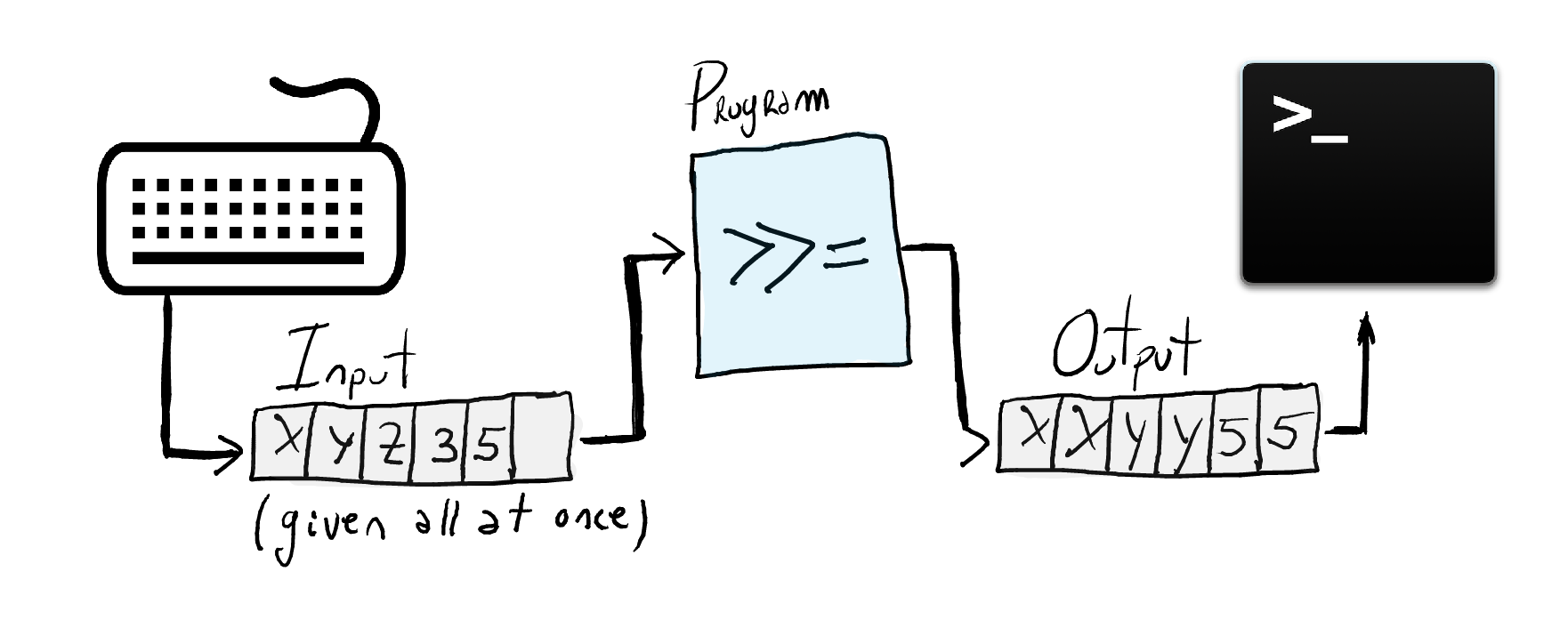

Scenario

Types for inputs and outputs

type Input = String type Output = String

Following the deep embedding guidelines, we have a constructor in

`Program`

per constructor / combinator.data Program a where Put :: Char -> Program () Get :: Program (Maybe Char) Return :: a -> Program a Bind :: Program a -> (a -> Program b) -> Program b

Observe the use of GADTs!

- In the definition of
`Get`

, why using`Maybe Char`

instead of`Char`

? We need to indicate the "end of input" somehow, i.e., by using

`Nothing`

getC = Get putC = Put

- In the definition of
What's the implementation of the type

`IOSem`

, i.e., the semantics of a program?type IOSem a = Input -> (a, Input, Output)

It is a function which takes an input and returns a result (of type

`a`

), the*left over*input (of type`Input`

), and an output (of type`Output`

).The

`run`

functionrun :: Program a -> IOSem a run (Put c) inp = (() ,inp , c:"") run (Get) "" = (Nothing, "" , "" ) run (Get) (c:cs) = (Just c ,cs , "" ) run (Return x) inp = (x ,inp , "" ) run (Bind p g) inp = (someb ,someinpp, someoutp ++ someoutpp) where (somea, someinp, someoutp) = run p inp pb = g somea (someb, someinpp, someoutpp) = run pb someinp

Let us write an "echo" program

echo :: Program () echo = getC >>= f where f Nothing = return () f (Just c) = putC c

To run it, we need to give it an input

run echo "a" > ((), "", "a")

**Exercise**: write a program which does a*double echo*, i.e., it reads a character from the input and writes it twice into the output

## A simple monadic EDSL for input/output (intermediate embedding)

It is often good to move away a bit from the pure deep embedding towards some kind of "normal form" ("optimized", "elemental" embedding).

We want to remove the

`Bind`

operator. How are we going to write sequential actions then?`(>>=)`

is going to be executed when constructing the program, but not when running it!Methodology:

- Looking the most typical usage patterns of
`Bind`

, - Introduce new constructors to capture such cases, and
- Simplify the data type with the new constructors

- Looking the most typical usage patterns of
Let's look at the different cases for the first argument of

`Bind`

.Put c >>= f Get >>= f Return x >>= f

Put c >>= f

From the types of

`Put`

and`Bind`

we note that`f`

must have type() -> m a

which is basically just a value of type

`m a`

. Another way to think about it is that`Put`

does not really return any useful value (the actual "putting" is implemented as a "side-effect"). So the function after bind can ignore its argument.Put c >>= \_ -> p ≡ Put c >> p

We will now give a name to this new combination

PutThen c p ≡ Put c >> p

This is a

`Program`

which starts by printing`c`

and the behaves like`p`

.Get >>= f

In a similar way we can introduce a new name for the combination of

`Get`

and`Bind`

:GetBind f ≡ Get >>= f

Return x >>= f

The third combination would be

`ReturnBind`

ReturnBind x f ≡ Return x >>= f

but the first monad law already tells us that this is just

`(f x)`

so no new constructor is needed for this combination.For the last combination, i.e.,

`(m >>= g) >>= f`

, the associative monadic law tells us how we can rewrite it.We then define

`Program`

using the first two combinations and returndata Program a where PutThen :: Char -> Program a -> Program a GetBind :: (Maybe Char -> Program a) -> Program a Return :: a -> Program a

Observe that the data type is a

**regular Haskell data type**and it does not use any of the features of a GADT.One way to think about

`PutThen`

and`GetBind`

is with*continuations*. For instance,`PutThen c p`

writes a character into the output of the program and continues behaving as`p`

. Similarly,`Get f`

reads maybe a character`mc`

from the input and continues behaving as program`f mc`

.putC :: Char -> Program () putC c = PutThen c $ Return ()

Function

`putC`

writes a character in the output and then it behaves as`Return ()`

getC :: Program (Maybe Char) getC = GetBind Return

Function

`getC`

reads maybe a character from the input and, once that is done, it behaves as`Return ()`

The bind is not going to be a part of the

`Program`

data structure, but rather part of the`instance Monad`

, i.e., the`bind`

is not deeply implemented as a constructor (intermediate embedding)

## Calculating `(>>=)`

for `Program`

as a monad (intermediate embedding)

What is the definition for bind?

instance Monad Program where return = Return (>>=) = bindP bindP :: Program a -> (a -> Program b) -> Program b bindP (PutThen c p) k = ? bindP (GetBind f) k = ? bindP (Return x) k = ?

We can*calculate*the correct definition of bindP using the definitions of`PutThen`

,`GetBind`

, and the monadic laws!bindP (Return x) k = ?

bindP (Return x) k = Def. >>= (Return x) >>= k = Law 1. return x >>= f ≡ f x k x

bindP (Return x) k = k x

bindP (GetBind f) k = ?

bindP (GetBind f) k = Def. of (>>=) (GetBind f) >>= k = Def. GetBind (Get >>= f) >>= k = Law 3. (m >>= f) >>= g == m >>= (\x -> f x >>= g) with m = Get, f = f, g = k Get >>= (\x -> f x >>= k) = Def. GetBind GetBind (\x -> f x >>= k) = Def. of (>>=) GetBind (\x -> bindP (f x) k)

bindP (GetBind f) k = GetBind (\x -> bindP (f x) k)

bindP (PutThen c p) k = ?

bindP (PutThen c p) k = { Def. of (>>=) } (PutThen c p) >>= k = { Def. of PutThen } (Put c >> p) >>= k = (Put c >>= \_ -> p) >>= k = Law3 with m = Put c, f = \_->p, g = k Put c >>= (\x -> (\_->p) x >>= k) = simplify Put c >>= (\_ -> p >>= k) = Def. of >> Put c >> (p >>= k) = Def. of PutThen PutThen c (p >>= k)

bindP (PutThen c p) k = PutThen c (bindP p k)

So, we can now complete defining

`Program`

as a monad-- | It turns out that bind can still be defined! instance Monad Program where return = Return (>>=) = bindP -- | Bind takes the first argument apart: bindP :: Program a -> (a -> Program b) -> Program b bindP (PutThen c p) k = PutThen c (bindP p k) bindP (GetBind f) k = GetBind (\x -> bindP (f x) k) bindP (Return x) k = k x

## A simple monadic EDSL for input/output (shallow embedding)

- This is an exercise for you to do!

## Monads

A structure that represents computations defined as sequences of steps.

The bind operator`(>>=)`

defines what it means to chain operations of a monadic type.In this lecture, we will learn about two other structures useful in functional programming

- Functors
- Applicative functors

## Structure-preserving mappings

We are familiar with the

`map`

function over listsmap (+1) [2,3,4,5,6]

which

*applies*the function`(+1)`

to every element of the list*, and produces the list[3,4,5,6,7]

We can generalize the concept of

`map`

to work on treesdata Tree a = Leaf a | Node (Tree a) (Tree a) mapTree :: (a -> b) -> Tree a -> Tree b mapTree f (Leaf a) = Leaf (f a) mapTree f (Node t1 t2) = Node (mapTree f t1) (mapTree f t2)

As we did with lists, we can apply the function

`(+1)`

at every element of the data structure.For instance,

mapTree (+1) (Node (Leaf 2) ((Node (Node (Leaf 3) (Leaf 4)) (Leaf 5))))

produces the following tree.Node (Leaf 3) (Node (Node (Leaf 4) (Leaf 5)) (Leaf 6))

In both cases, the structure of the data type (i.e., lists and trees) is preserved

General pattern:

It is useful to apply functions to data types elements while respecting the structure (shape) of it

## Functors

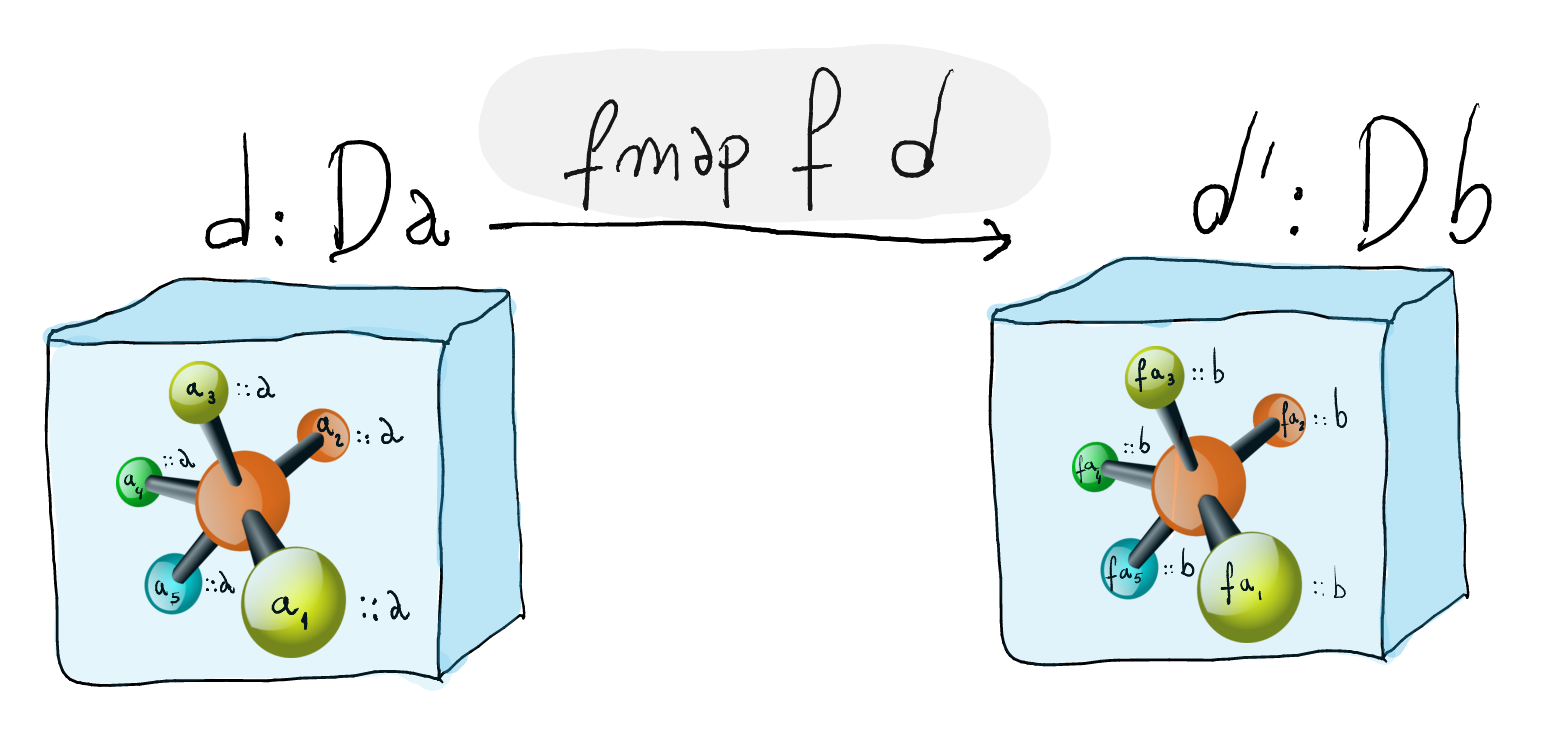

A functor is composed of two elements: a

*data type definition*(*container*) and a generalized`map`

-function called`fmap`

In Haskell,

`fmap`

is an overloaded function, i.e., defined for every container which supports a`map`

-like operationclass Functor d where fmap :: (a -> b) -> d a -> d b

A functor must obey the following laws.

Name Law Identity: fmap id ≡ id

Map fusion (or composition): fmap (f . g) ≡ fmap f . fmap g

*map fusion*allows to reduce two traversals to one!Let us consider again the

`Tree`

exampleinstance Functor Tree where fmap f (Leaf a) = Leaf (f a) fmap f (Node t1 t2) = Node (fmap f t1) (fmap f t2)

Now, we can write(+1) `fmap` (Node (Leaf 2) ((Node (Node (Leaf 3) (Leaf 4)) (Leaf 5))))

## Functors: more examples

`Maybe`

data type(+1) `fmap` (Just 10)

Generalized trees

data TreeG a = LeafG a | BranchG [TreeG a] instance Functor TreeG where fmap f (LeafG a) = LeafG (f a)

What about

`BranchG`

? We will use the`fmap`

from lists!fmap f (BranchG ts) = BranchG (fmap (fmap f) ts)

The outermost `fmap` is the one corresponding to lists. For instance, the expression(+1) `fmap` BranchG [LeafG 10, BranchG [LeafG 11, LeafG 12], BranchG [LeafG 13, LeafG 14, LeafG 15]]

producesBranchG [LeafG 11, BranchG [LeafG 12, LeafG 13], BranchG [LeafG 14, LeafG 15, LeafG 16]]

To summarize:

Functors simplifies boilerplate code, i.e., destructing a container in order to create another one!As data types can be built from other ones, so do functors! (thus achieving modularity)

## Multi-parameter functions map to multiple containers

In a more general case, sometimes we would like to transform elements in a container (data type) based on applying a "

*multi-parameter function*" to*multiple containers*(the quotes are there since in Haskell every function has exactly one argument due to curryfication)Keep in mind that

`fmap`

takes a function of type`a -> b`

and not "multi-parameter" ones, e.g.,`a -> b -> c`

Let us take as an example to see what happens when

`fmap`

is used with a "multi-parameter" function.mp_fmap :: (a -> b -> c) -> Maybe a -> Maybe b -> Maybe c mp_fmap f ma mb = let m_b_to_c = fmap f ma in undefined

Once we apply

`fmap`

to the first container, we have a container (`m_b_to_c`

) with a function of type`b -> c`

in it.To keep applying

`f`

, what we need to do is to**take its partial application out of the container**, where its next argument is located.`m_b_to_c`

and mapped over`mb`

mp_fmap :: (a -> b -> c) -> Maybe a -> Maybe b -> Maybe c mp_fmap f ma mb = let m_b_to_c = fmap f ma in case m_b_to_c of Nothing -> Nothing Just fa -> fmap fa mb

What happens if function

`f`

had more arguments?mp_fmap2 :: (a -> b -> c -> d) -> Maybe a -> Maybe b -> Maybe c -> Maybe d mp_fmap2 f ma mb mc = case fmap f ma of Nothing -> Nothing Just fa -> case fmap fa mb of Nothing -> Nothing Just fab -> fmap fab mc

We would need to implement more code to extract partial application of functions out from containers, applied them, and wrap the result in another container!

*Applicative functors are conceived to do precisely this work!*

## Applicative functors

An

*applicative functor*(or functor with application) is a functor with the following operationsclass Functor d => Applicative d where pure :: a -> d a (<*>) :: d (a -> b) -> d a -> d b

Observe that an applicative functor

**is**a functorThe pure operation creates a container with the given argument. The interesting operation is "application"

`(<*>)`

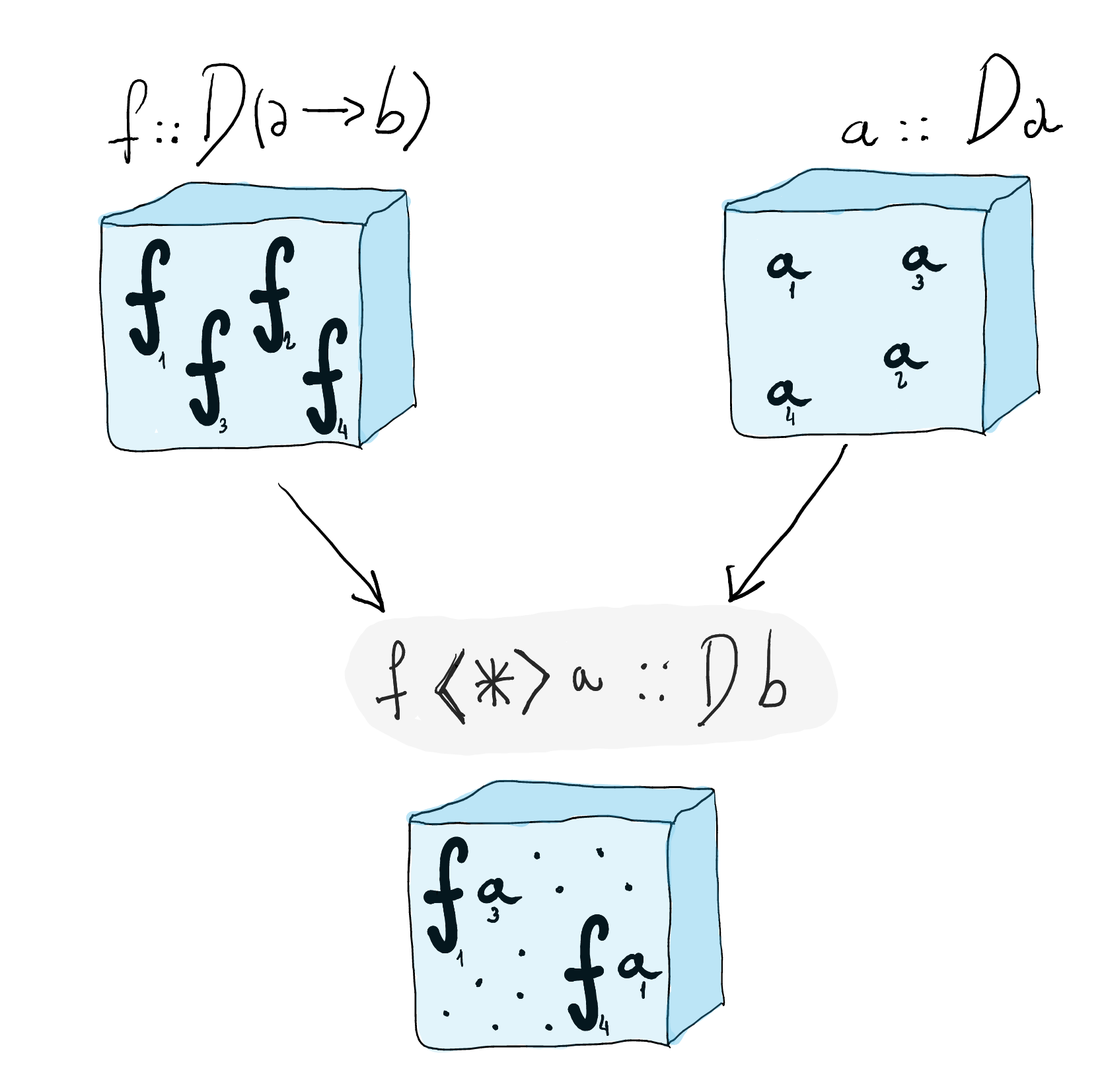

, which we can describe it graphically as followsIt takes a container of functions and a container of arguments and returns a container of the result of applying such functions.

An applicative functor must obey the following laws

Name Law Identity: pure id <*> vv ≡ vv

Composition: pure (.) <*> ff <*> gg <*> zz ≡ ff <*> (gg <*> zz)

Homomorphism: pure f <*> pure v ≡ pure (f v)

Interchange: ff <*> pure v ≡ pure ($ v) <*> ff

In the rules above, double letters indicate that the denoted element is in a container, e.g.,

`ff`

means that it is a function`f`

inside a container,`vv`

is a value which is inside a container and so on.One of the most interesting rules is

*interchange*. Before explaining it, let us see the types of the expressions involved.ff :: d (a -> b) vv :: d a pure ($ v) :: d ((a -> b) -> b)

The rule says that instead of obtaining a`d b`

as`ff <*> pure v`

, where`ff`

is a container with a function and`pure v`

is its argument, it is possible to apply function`($ v)`

to the container`ff`

.

## Applicative Maybe

Let us go back to our example using

`Maybe`

instance Functor Maybe where fmap f Nothing = Nothing fmap f (Just a) = Just (f a) instance Applicative Maybe where pure = Just Nothing <*> vv = Nothing Just f <*> vv = fmap f vv

What can we do now with that?

-- xx :: Maybe String -- yy :: Maybe String pure (++) <*> xx <*> yy

We can apply concatenation on strings stored in containers. All the wrapping and unwrapping is handled by the applicative functor.

A common usage pattern of applicative functors is as follows.

pure f <*> xx <*> yy <*> zz ...

More precisely, a function

`f`

in a container as the leftmost term follow by its container arguments!To make this pattern to look better, the applicative interface provides a

*derived*operation called`(<$>)`

which removes the`pure`

from the leftmost term.(<$>) :: Functor d => (a -> b) -> d a -> d b

So, the expression

pure f <*> xx <*> yy <*> zz ...

becomesf <$> xx <*> yy <*> zz ...

## Relation to monads

Observe what we have written using the applicative functor

`Maybe`

pure (++) <*> xx <*> yy

If we consider

`Maybe`

as a monad instead (which we defined in the previous lecture), we can achieve the same things.do x <- xx y <- yy return (x ++ y)

What is the difference between

`Maybe`

as an applicative functor or a monad?In the case above, both programs produce

**the same result**(`x++y`

). Observe that`x`

gets bound but it is not used until the`return`

instruction — the same occurs with`y`

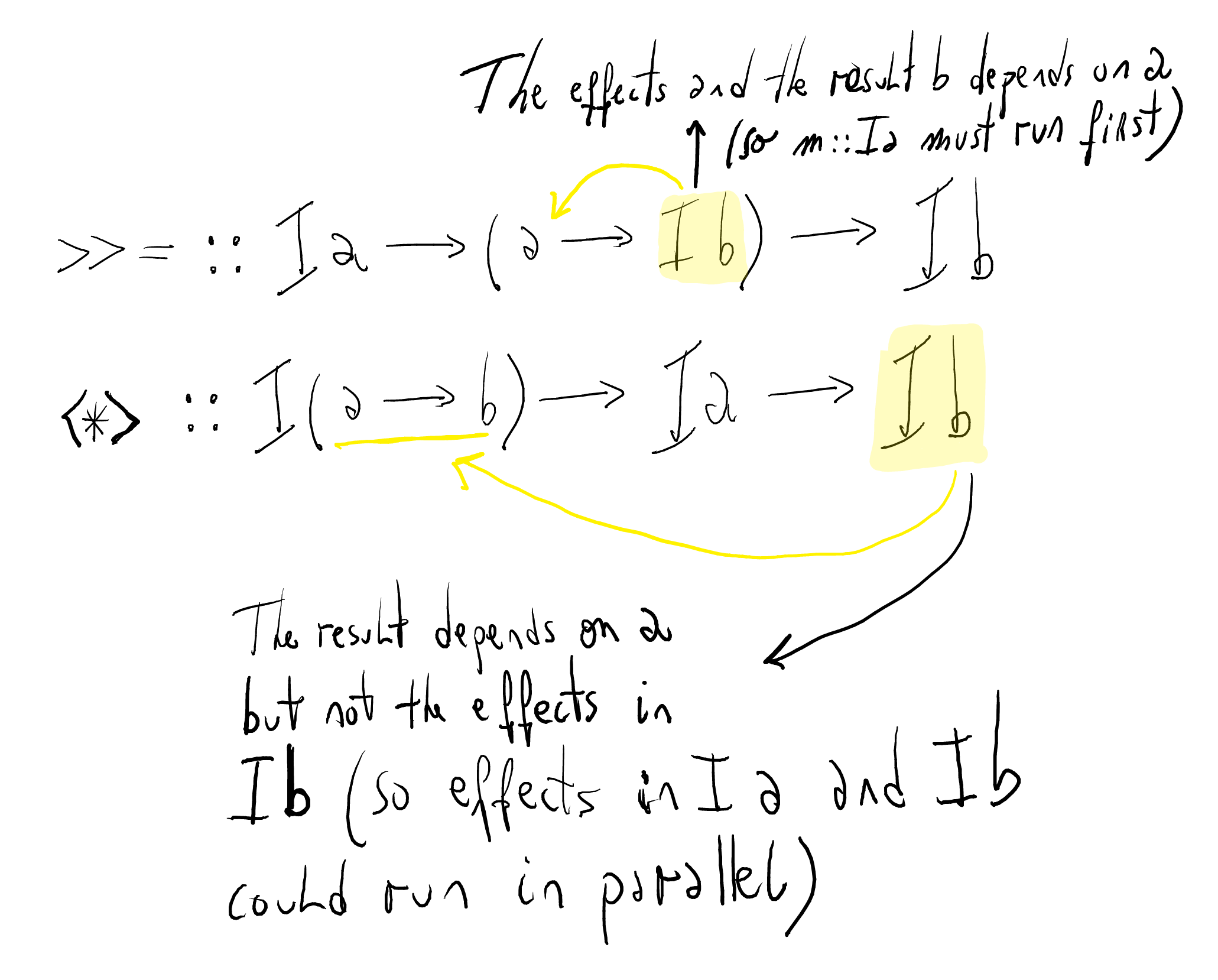

. However, the effects in a monadic program or an applicative one could be run in a different order.The difference between monad and applicative functors is the difference between*sequential*vs.*parallel*execution of side-effectsTo appreciate this difference, let us consider a dramatic side-effect:

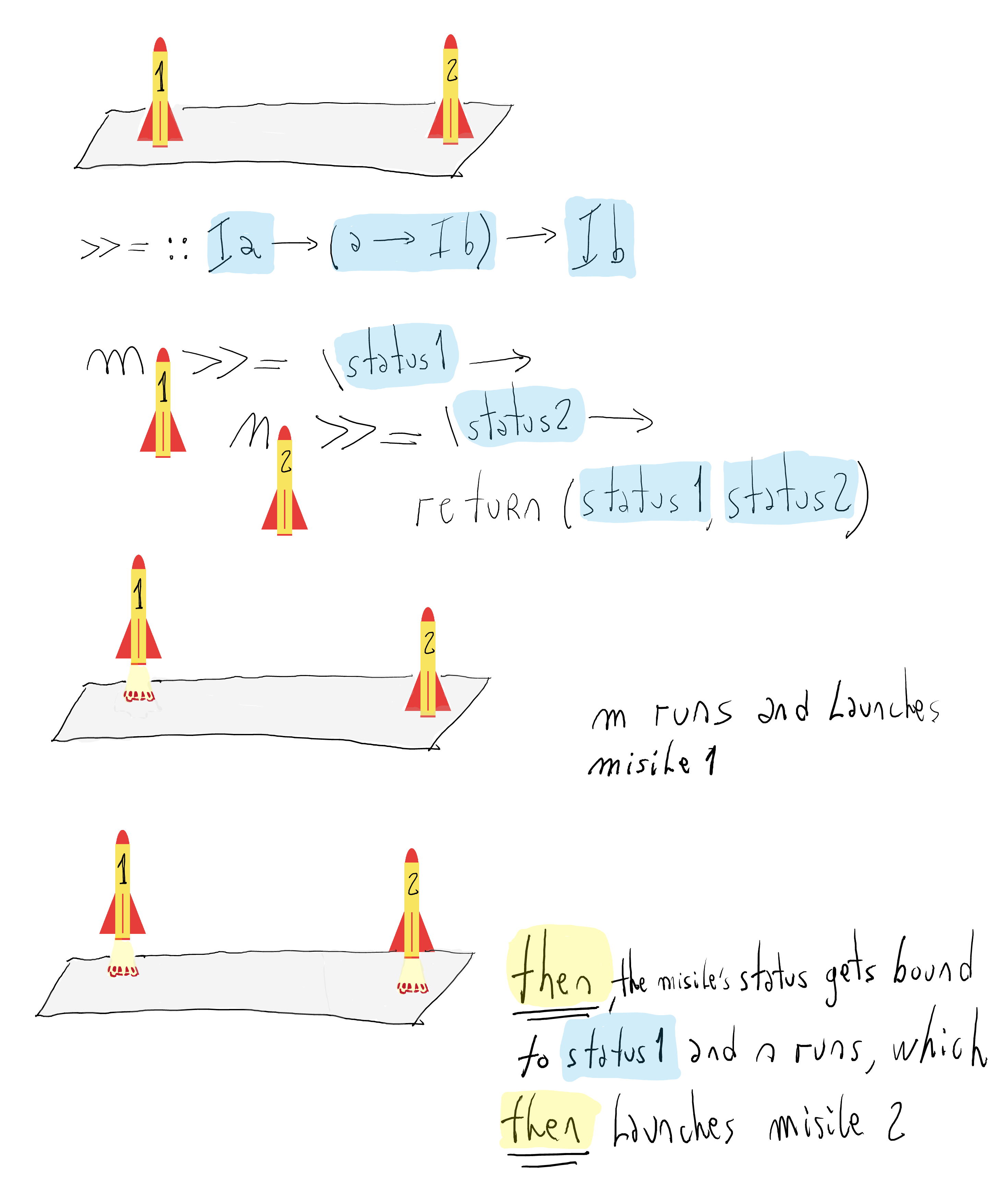

*launching a missile*. We need to write a program which launches two missiles to a given target.**Monadic code**The side-effects are sequentially executed!**Applicative code**The applicative structure does not impose an order on the execution of the

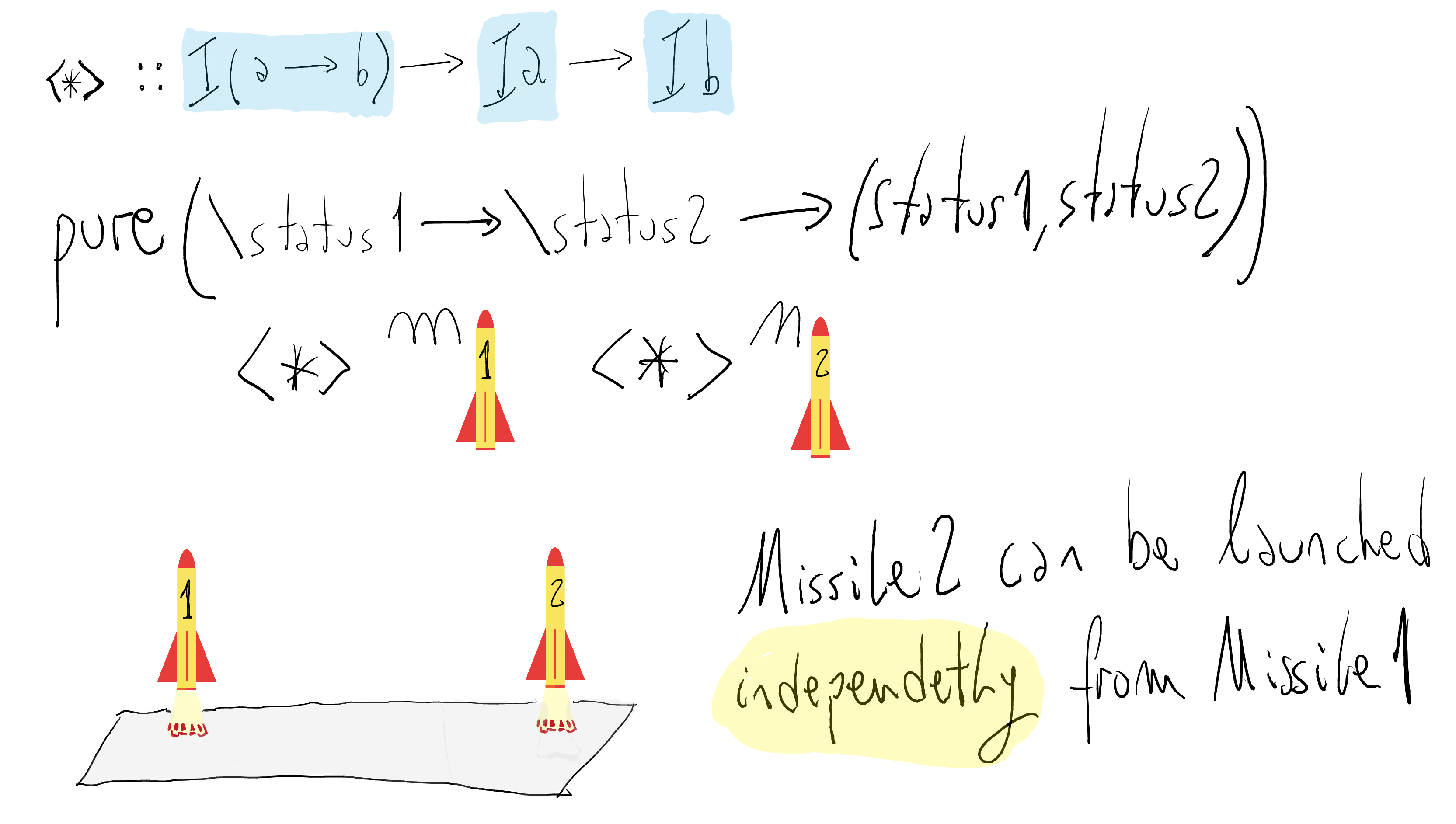

*container arguments*. Observe that the effects could be run in parallel if possible.Let's see the types closely

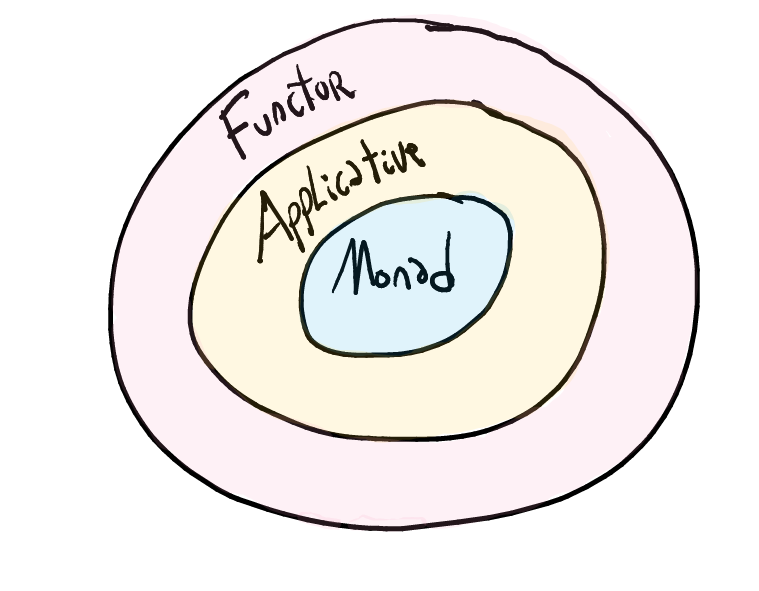

What is better? Monads, Applicative Functors?

FUNCTIONAL PEARL Applicative programming with effects by C. McBride and R. Paterson

The moral is this: if you’ve got an Applicative functor, that’s good; if you’ve also got a Monad, that’s even better! And the dual of the moral is this: if you want a Monad, that’s good; if you only want an Applicative functor, that’s even better!Theory can prove that every monad is an applicative functor and that every applicative functor is a functor.From GHC 7.10, if you define a monad, i.e., give an instance of the type class

`Monad`

, you also need to give an instance of`Applicative`

and`Functor`

class Functor d => Applicative d where class Applicative d => Monad d where

In GHC 7.8, you get a warning but your program still compiles. For more information check the Functor-Applicative-Monad proposal.

## Not a functor

Not every data type is a functor

type NotAFunctor = Equal newtype Equal a = Equal {runEqual :: a -> a -> Bool} fmapEqual :: (a -> b) -> Equal a -> Equal b fmapEqual _f (Equal _op) = Equal $ \_b1 _b2 -> error "Hopeless!"

What is the problem?

Values of type

`a`

are in "negative position", i.e., they are given to the function (not produced by it).

## A functor, not applicative

Not every functor is applicative

data Pair r a = P r a instance Functor (Pair r) where fmap f (P r a) = P r (f a)

Observe that the value of type

`r`

is kept as it is in the container (the functor does not create new elements, but modify existing ones)If we want to create a container, we need an

`r`

but`pure`

only receives an`a`

instance Applicative (Pair r) where pure x = P (error "Hopeless!") x f <*> v = error "Hopeless!"

## Applicative, not a monad

Not every applicative functor is a monad

To show that, we need some preliminaries.

Every monoid is a

*phantom applicative functor*newtype Phantom o a = Phantom o

Here, the type

`o`

is an element from a monoid. Roughly speaking, a monoid is a set of elements which contains a*neutral*element and an operation between the elements of such set.mempty :: o mappend :: o -> o -> o

The neutral element has no effect on the result produced by

`mappend`

, i.e.,`mappend mempty o == o`

and`mappend o mempty == o`

We declare

`Phantom`

to be a functor and an applicative functor as follows.instance Functor (Phantom o) where fmap f (Phantom o) = Phantom o instance Monoid o => Applicative (Phantom o) where pure x = Phantom mempty Phantom o1 <*> Phantom o2 = Phantom (mappend o1 o2)

Observe that every application of

`<*>`

applies`mappend`

.To make this idea more concrete, let us define a concrete monoid: natural numbers.

data Nat = Zero | Suc Nat instance Monoid Nat where mempty = Zero mappend Zero m = m mappend (Suc n) m = Suc (mappend n m)

Function

`mappend`

is simply addition.Let us define the

`Phantom`

number one.onePhantom :: Phantom Nat Int onePhantom = Phantom (Suc Zero)

In some cases, when

`onePhantom`

is applied to an applicative function, it counts the total number of its occurrences.(\x y -> x) <$> onePhantom <*> onePhantom > Phantom (Suc (Suc Zero))

Let us try to define

`Phantom Nat`

as a monadinstance Monad (Phantom Nat) where return = pure

The interesting case is

`(>>=)`

Phantom n >>= k = ?

Observe that

`n :: Nat`

and`k`

is waiting for an argument of type`a`

and we have none! To make our instance type-checked, we ignore`k`

.Phanton n >>= k = Phanton m where m = ...

You are free to choose the

`m`

in the returned`Phantom`

!By the

*left identity*rule for Monads, we have thatreturn x >>= k ≡ k x

By the definition of

`(>>=)`

above, we know thatreturn x >>= k ≡ Phantom m

By combining these two equations, we have that

Phantom m ≡ k x

Then, it is easy to come up with a function

`k`

where this equation does not hold. For instance,k = \_ -> ((\x1 x2 .. xm xm1) -> x1) <$> onePhantom <*> .. <*> onePhantom

In other words,

`k`

is returning`Phantom (Suc m)`

which is different from`Phantom m`

. Contradiction! Therefore,`Phantom Nat`

cannot be a monad.

## Structures learned so far

Monads

**Sequential**construction of programsUseful to implement side-effects (e.g., error handling, logging, stateful computations, etc.)

**Simplify code**, i.e., it hides plumbing needed to handle the side-effects

Applicative functors

Useful to apply "multi-parameters" functions to multiple container arguments

**Simplify code**, i.e., it hides the plumbing needed to take out functions and their arguments from containers, applying the function, and place the result back in a container.

Side-effects could potentially be executed in parallel

They are more generic than monads

Functors

Useful to map functions into containers, i.e., transform data inside containers without breaking them.

**Simplify code**, i.e., it hides the plumbing of destructing the container to obtain the value, apply the function, and put the result in a container.

The most general structure
