# Type-based modeling

## Design of DSLs

In our DSLs, we have tree important components: constructors, combinators, and run functions

Sometimes, the DSL type-signature for combinators might allow to construct objects such that have

*no semantics*As a result, run functions need to

*dynamically*check that objects "make sense" before*running*them

## A simple (non-monadic) DSL for integers and booleans expressions

The DSL

-- Type of objects data Expr -- Constructors int :: Int -> Expr bool :: Bool -> Expr -- Combinators plus :: Expr -> Expr -> Expr equal :: Expr -> Expr -> Expr if :: Expr -> Expr -> Expr -> Expr -- Run type Value eval :: Expr -> Value

Observe from the interface that the combinators can compose elements of different nature, which might trigger errors in the run function

What is the

*semantics*of the following expressions?ifc (lit 3) (lit 42) (bool False)

eqc (lit 3) (bool True)

The DSL allows to build both well- and ill-typed expressions!We can start given a complex (and arguably wrong) semantics to

*bad expressions*(JavaScript does that!), e.g.,`1 + True == 1`

, etc.We assume that ill-typed expressions have no semantics!Therefore, the run function needs to trigger errors when expressions are bad.

## An EDSL implementation

We implement

`Expr`

as followsdata Expr where LitI :: Int -> Expr LitB :: Bool -> Expr (:+:) :: Expr -> Expr -> Expr (:==:) :: Expr -> Expr -> Expr If :: Expr -> Expr -> Expr -> Expr

The interesting case is the run function

eval :: Expr -> Value

Since expressions can be reduced to integers or booleans, an element of type

`Value`

is either an integer or a boolean.data Value = VInt Int | VBool Bool

The run function then checks that expressions are evaluated to

*the expected type of values*at every combinator.eval :: Expr -> Value eval (LitI n) = VInt n eval (LitB b) = VBool b eval (e1 :+: e2) = plus (eval e1) (eval e2) where plus (VInt n) (VInt m) = VInt $ n + m plus _ _ = error "plus: type error" eval (e1 :==: e2) = eq (eval e1) (eval e2) where eq (VInt n) (VInt m) = VBool $ n == m eq (VBool a) (VBool b) = VBool $ a == b eq _ _ = error "equal: type error" eval (If e1 e2 e3) = case eval e1 of VBool True -> eval e2 VBool False -> eval e3 _ -> error "if: type error"

Ill-typed expressions raise errors when evaluating them

eBad2 = If (LitI 20) (LitI 1) (LitI 7)

> eval eBad2 *** Exception: if: type error!

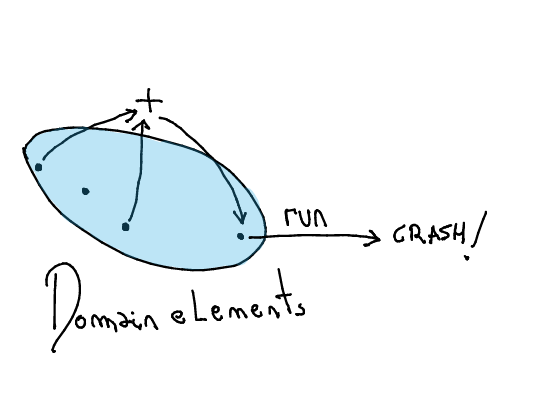

The picture

- Can we avoid constructing bad expressions at all?

## A EDSL with type-aware combinators

Now, for every type, we have a new

*kind of expressions*data ExprI -- Integer expressions data ExprB -- Boolean expressions

Combinators can be defined on the right "kind of expressions"

(:+:) :: ExprI -> ExprI -> ExprI If :: ExprB -> ExprI -> ExprI -> ExprI

While this looks attractive, and indeed helps, it requires to introduce

*many new constructors*to deal with all the possible "good" ways to build expressions.data ExprI where LitI :: Int -> ExprI (:+:) :: ExprI -> ExprI -> ExprI IfI :: ExprB -> ExprI -> ExprI -> ExprI data ExprB where LitB :: Bool -> ExprB EqI :: ExprI -> ExprI -> ExprB EqB :: ExprB -> ExprB -> ExprB IfB :: ExprB -> ExprB -> ExprB -> ExprB

Observe the

*reproduction*of equality constructors (`EqI`

and`EqB`

) and branches (`IfI`

and`IfB`

) depending on the type of arguments they take.There are two run functions, one for each type of expressions

evalI :: ExprI -> Int evalI (LitI n) = n evalI (e1 :+: e2) = evalI e1 + evalI e2 evalI (IfI b t e) = if evalB b then evalI t else evalI e evalB :: ExprB -> Bool evalB (LitB b) = b evalB (EqI e1 e2) = evalI e1 == evalI e2 evalB (EqB e1 e2) = evalB e1 == evalB e2 evalB (IfB b t e) = if evalB b then evalB t else evalB e

Observe that

`evalI`

and`evalB`

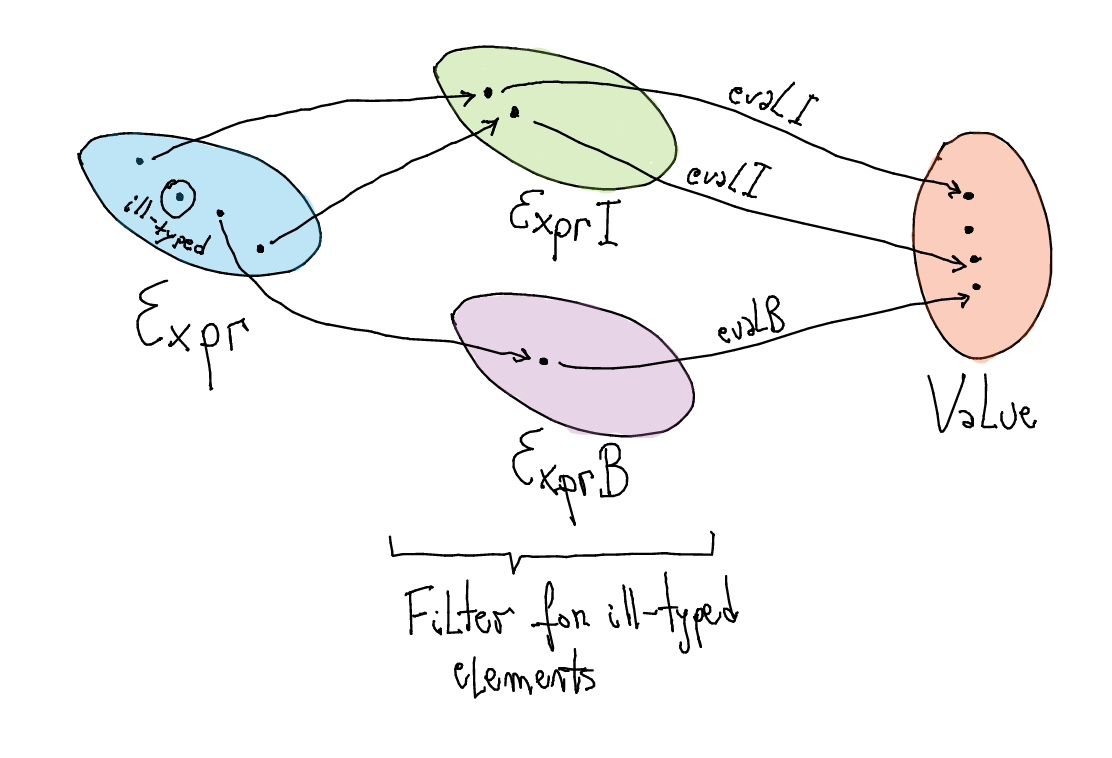

do not raise type-errors.We can use this EDSL to validate a value of type

`Expr`

In other words, we take a value of type

`Expr`

and map it into either`ExprI`

or`ExprB`

.If successful, we can run a value of type

`Expr`

using`evalA`

or`evalB`

, so no type errors!We need to write a function which

*infers*the type for a value of type`Expr`

infer :: Expr -> ?

There are three possible outcomes for

`infer e`

, i.e., it might produce an error (`e`

has no type) or either a value of type`ExprI`

or`ExprB`

.import qualified Expr as E data TypedExpr = TInt ExprI | TBool ExprB infer :: E.Expr -> Maybe TypedExpr

The easy cases are the constructors.

infer (E.LitB b) = return $ TBool (LitB b) infer (E.LitI i) = return $ TInt (LitI i)

For addition, we need both argument to be integer expressions.

infer (e1 E.:+: e2) = do te1 <- infer e1 te2 <- infer e2 inferPlus te1 te2

Function

`inferPlus`

checks that both`te1 :: TypedExpr`

and`te2 :: TypedExpr`

are integers and, if that is the case, it constructs the corresponding value of type`ExprI`

, i.e., a sum.inferPlus :: TypedExpr -> TypedExpr -> Maybe TypedExpr inferPlus (TInt e1) (TInt e2) = Just (TInt (e1 :+: e2)) inferPlus _ _ = Nothing

In a similar manner, we write the cases for equality and branches.

infer (e1 E.:==: e2) = do te1 <- infer e1 te2 <- infer e2 inferEq te1 te2 infer (E.If b t e) = do tb <- infer b tt <- infer t te <- infer e inferIf tb tt te

**Exercise**: write`inferEq`

and`inferIf`

We write

`eval`

only for typed expressions so we guarantee no type errorseval :: TypedExpr -> E.Value eval (TInt ei) = E.VInt $ evalI ei eval (TBool eb) = E.VBool $ evalB eb

Problems with this approach:

Duplication of constructors to denote "the same operation" but on different type of expressions

It does not scale up for

*type constructors*(e.g., lists, tuples, monads, etc.)For instance, if we want to introduce lists, we need to define a type for list expressions

List of integers.

data ExprLI where EmptyLI :: ExprLI ConsLI :: ExprI -> ExprLI -> ExprLI

data ExprB where ... EqLI :: ExprLI -> ExprLI -> ExprB

List of booleans.

data ExprLB where EmptyLB :: ExprLB ConsLB :: ExprB -> ExprLB -> ExprLB

data ExprB where ... EqLI :: ExprLI -> ExprLI -> ExprB EqLB :: ExprLB -> ExprLB -> ExprB

What about having lists of lists?

List of lists of integers.

data ExprLLI where EmptyLLI :: ExprLLI ConsLLI :: ExprLI -> ExprLLI -> ExprLLI

data ExprB where ... EqLI :: ExprLI -> ExprLI -> ExprB EqLB :: ExprLB -> ExprLB -> ExprB EqLLI :: ExprLLI -> ExprLLI -> ExprB

List of lists of booleans.

data ExprLLB where EmptyLLB :: ExprLLB ConsLLB :: ExprLB -> ExprLLB -> ExprLLB

data ExprB where ... EqLI :: ExprLI -> ExprLI -> ExprB EqLB :: ExprLB -> ExprLB -> ExprB EqLLI :: ExprLLI -> ExprLLI -> ExprB EqLLB :: ExprLLB -> ExprLLB -> ExprB

What about lists of lists of lists of integers/booleans?

## Enter GADTs

We use GADTs of the form

`Expr t`

, where`t`

is a Haksell type which indicates the value that the expression denotesdata Expr t where LitI :: Int -> Expr Int LitB :: Bool -> Expr Bool (:+:) :: Expr Int -> Expr Int -> Expr Int (:==:) :: Eq t => Expr t -> Expr t -> Expr Bool If :: Expr Bool -> Expr t -> Expr t -> Expr t

Observe constructors

`LitI`

and`LitB`

produce integer and boolean expressions, respectively. The combinator`(:+:)`

takes integer expressions, i.e., arguments of type`Expr Int`

, and produces an integer expression as well. Equality of expressions of type`Expr t`

requires that`t`

supports equality in Haskell -- see the type constraint`Eq t`

. Constructor`If`

takes a boolean expression as the guard (`Expr Bool`

) and both branches need to return the same type of expressions (`Expr t`

).There is no way to construct ill-typed expression in`Expr t`

The run function is simply defined as follows.

eval :: Expr t -> t eval (LitI n) = n eval (LitB b) = b eval (e1 :+: e2) = eval e1 + eval e2 eval (e1 :==: e2) = eval e1 == eval e2 eval (If b t e) = if eval b then eval t else eval e

We can forget that an expression is typed

To go from typed expressions to untyped ones is easy! (type elimination)To go from untyped expressions to typed ones is not straightforward! (type inference)Type elimination

forget :: Expr t -> E.Expr forget e = case e of LitI n -> E.LitI n LitB b -> E.LitB b e1 :+: e2 -> forget e1 E.:+: forget e2 e1 :==: e2 -> forget e1 E.:==: forget e2 If e1 e2 e3 -> E.If (forget e1) (forget e2) (forget e3)

By doing so, we can reuse the pretty printing for the untyped version of

`Expr`

instance Show (Expr t) where showsPrec p e = showsPrec p (forget e)

Type inference is a bit more involved

If

`e`

is an expression which produces a boolen, theninfer e :: Maybe (Expr Bool)

If

`e`

is an expression which produces an integer, theninfer e :: Maybe (Expr Int)

So, what is the type signature for

`infer`

?infer :: E.Expr -> Maybe ?

The returning type depends on the (value of the) argument of the function!

Challenge

Our inference function will have to convince the Haskell type checker to allow us to construct an element of`Expr t`

from an untyped expression`E.Expr`

.

## Existential types

When the returning type of a function depends on the (value of the) argument of a function, we can use

*existential types*to make them type-checkdata TypedExpr where (:::) :: forall t. Eq t => Expr t -> TypedExpr

It is counter intuitive to use

`forall t`

to express an existential type. The contructor`(:::)`

can be instantiated with any type`t`

which supports equality.Observe that type

`t`

does not show up in the data type declaration`TypedExpr`

. If we have a value`d :: TypedExpr`

, we know that it is built with the constructor`(:::)`

. Observe, however, we cannot guess which type`t`

has been used, thus we only know that there*exists*a type`t`

(with equality) which builds`d`

!Typing

`infer`

infer :: E.Expr -> Maybe TypedExpr

We add more information to the constructor

`(:::)`

to include not only the expression but its type as welldata Type t where TInt :: Type Int TBool :: Type Bool data TypedExpr where (:::) :: forall t. Eq t => Expr t -> Type t -> TypedExpr

Observe that

`(e ::: te) :: TypedExpr`

indicates that expression`e :: Expr t`

has type`te :: Type t`

.Observe that types

`Type Int`

and`Type Bool`

have only one inhabitant, respectively (we exclude`undefined`

).This kind of types are known as

*singleton types*. Why is it useful?

## Singleton types

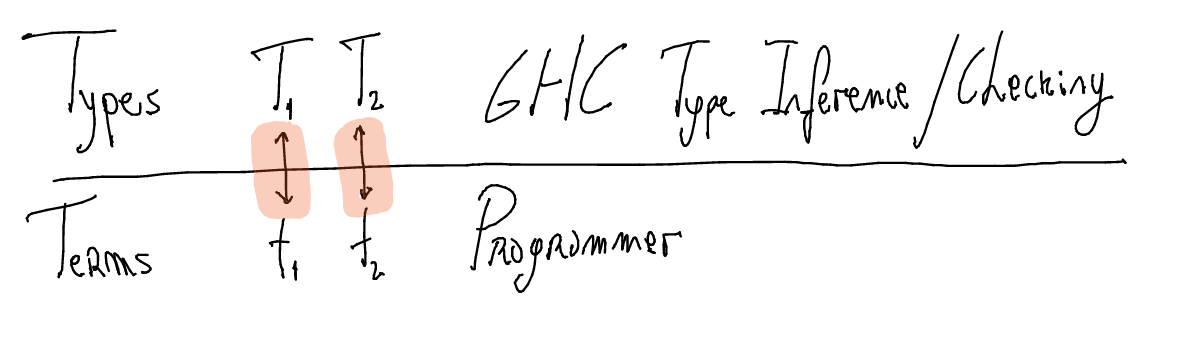

There is a one-to-one correspondence between terms and types

This correspondence is useful to

*guide Haskell's type-system*by coding using the singleton's types inhabitants.In our example, function

`infer`

is going to use them to indicate that (i) expressions are either typed as`Expr Int`

or`Expr Bool`

, and (ii) some expressions should have the same type.

## Implementing type inference

We start by defining a mechanisms to tell Haskell that two types must be the same.

data Equal a b where Refl :: Equal a a

`Equal a b`

is a type of proofs that two types`a`

and`b`

are equal. The only way to prove two types equal is if they are in fact the same, and then the proof is`Refl`

.Evaluating one of these proofs to

`Refl`

will*convince GHC's type checker that the two type arguments are indeed equal*(how else could the proof be`Refl`

?).For instance, if we have a proof

`p :: Equal Int Int`

, then we know that`p`

is`Refl`

since`Refl :: Equal Int Int`

and it is the only inhabitant for that type.On the other hand,

`p :: Equal Int Float`

cannot be constructed. Do you see why? The type`Equal Int Float`

has no inhabitant, i.e., there is no constructor to build it (`Refl`

does not work for this case).We construct a function which takes two types for expressions and hints Haskell if they have the same type

(=?=) :: Type s -> Type t -> Maybe (Equal s t)

This function will only succeed when type

`s`

is equal to type`t`

.How are we going to indicate that in the body of the function? After all, functions implementations do not talk about types!

We have singleton types, so we can use their inhabitants to refer to types from the function body.

(=?=) :: Type s -> Type t -> Maybe (Equal s t) TInt =?= TInt = Just Refl TBool =?= TBool = Just Refl _ =?= _ = Nothing

In the

`infer`

function, we can make heavy use of the fact that pattern matching on a`Type t`

or an`Equal s t`

will tell GHC's type checker interesting things about`s`

and`t`

Inferring types for constructors

infer :: E.Expr -> Maybe TypedExpr infer e = case e of E.LitI n -> return (LitI n ::: TInt) E.LitB b -> return (LitB b ::: TBool)

Because the use of

`LitI`

(`LitB`

), GHC knows that`LitI n :: Expr Int`

(`LitB b :: TBool`

), and consequently has type`Type Int`

. Consequently, we could have place`undefined`

instead of`TInt`

(`TBool`

) -- after all, GHC's type system already knows everything -- and`infer`

will still type checks. However, it might produce`infer`

to crash later on (see other cases)Inferring types for addition

infer :: E.Expr -> Maybe TypedExpr infer e = case e of ... r1 E.:+: r2 -> do e1 ::: TInt <- infer r1 e2 ::: TInt <- infer r2 return (e1 :+: e2 ::: TInt)

By doing pattern-matching using

`TInt`

(i.e.,`e1 ::: TInt`

and`e2 ::: TInt`

), we are telling GHC that`infer r1 :: Maybe TypedExpr`

and`infer r2 :: Maybe TypedExpr`

needs to construct integer expressions`e1 :: Expr Int`

and`e2 :: Expr Int`

, respectively.Inferring types for equality

This case is interesting.

infer :: E.Expr -> Maybe TypedExpr infer e = case e of ... r1 E.:==: r2 -> do e1 ::: t1 <- infer r1 e2 ::: t2 <- infer r2 ... return (e1 :==: e2 ::: TBool)

We know that the result is something of type

`Expr Bool`

. We indicate by using`(:===:)`

and`TBool`

in the returned value.However, the expressions

`e1`

and`e2`

might have any type (e.g.,`Expr Int`

, or`Expr Bool`

) as long as they are the same. We hint that to GHC's type system by using function`(=?=)`

and pattern-matching on its result.infer :: E.Expr -> Maybe TypedExpr infer e = case e of ... r1 E.:==: r2 -> do e1 ::: t1 <- infer r1 e2 ::: t2 <- infer r2 Refl <- t1 =?= t2 return (e1 :==: e2 ::: TBool)

Inferring types for branches

We hint GHC that the guard needs to be boolean (by applying pattern-matching), and that the branches have the same type (by applying function

`(=?=)`

and pattern-matching on its result).infer :: E.Expr -> Maybe TypedExpr infer e = case e of ... E.If r1 r2 r3 -> do e1 ::: TBool <- infer r1 e2 ::: t2 <- infer r2 e3 ::: t3 <- infer r3 Refl <- t2 =?= t3 return (If e1 e2 e3 ::: t2)

## Type checking and evaluation

We can do type checking by inferring a type and comparing it to the type we expect.

check :: E.Expr -> Type t -> Maybe (Expr t) check r t = do e ::: t' <- infer r Refl <- t' =?= t return e

Evaluation

As we did before, we first type-check an expression and then run it.

evalT :: E.Expr -> Maybe E.Value

Recall that

`E.Value`

has the constructors`VBool Bool`

and`VInt Int`

.In this light, if an expression

`E.Expr`

has type`Type Int`

, then`evalT`

should return`VInt n`

(for some`n`

).evalTI :: E.Expr -> Maybe E.Value evalTI e = do i <- check e TInt return (E.VInt $ eval i)

Observe the use of

`TInt`

to hint GHC's type system.Similarly, we have a function for expression with type

`Type Bool`

.evalTB :: E.Expr -> Maybe E.Value evalTB e = do b <- check e TBool return (E.VBool $ eval b)

Observe that we are calling

`eval`

from our original approach (the one that might report type-errors). However, this function is not going to raise any of them!Function

`evalT`

simply tries to type expressions as`Type Bool`

or`Type Int`

and returns the appropriated value.evalT :: E.Expr -> Maybe E.Value evalT e = evalTB e `mplus` evalTI e

## Summary

Adding type-inference / type-checking to DSLs

- Avoid constructing semantically bad entities
- No type-errors reported by the run function

GADTs

- It allows to express some invariants about how constructors and combinators should work (e.g., the guard of a branch is a boolean expression)

We verify that entities built with the DSL interface are well-typed, i.e., they accommodate to the GADTs invariants

We implement type-inference for the elements built with the DSL interface

We use existential types to give a type to the inference function

We use singleton types to hint GHC's type-system about the expected types for the GADTs elements

We use a proof of equality to hint GHC's type-system when two GADTs values should have the same type.
