#Pr ogram verification and testing

## Correctness

When is a program correct?

When it fulfills its specification

What is a specification?

To state explicitly or in detail what a program should do!How to establish a relation between the specification and the implementation?

What about bugs in the specification?

We need to trust our specification.

## In this lecture

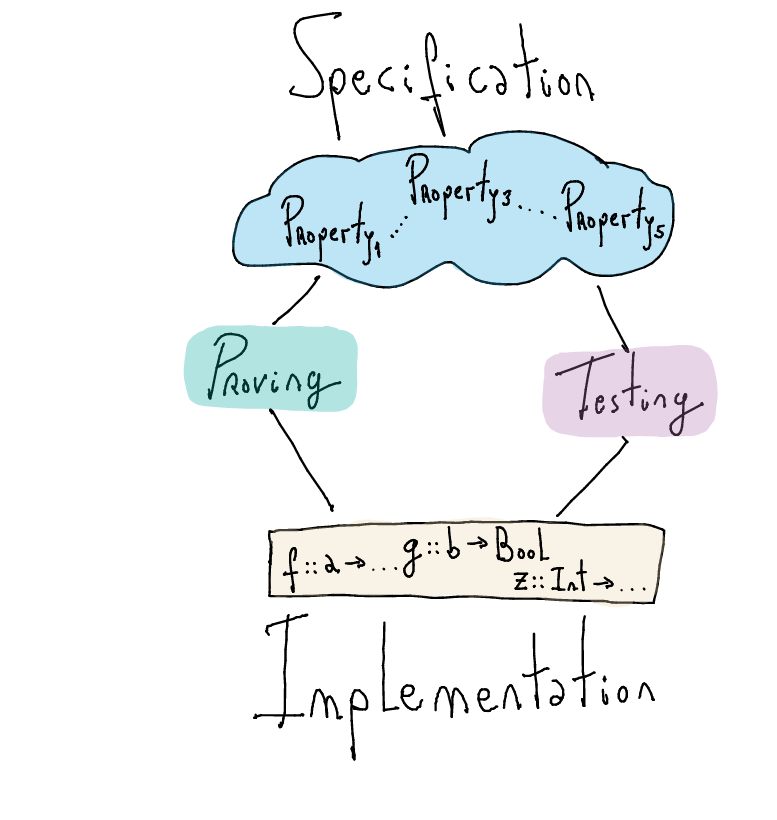

We cover to (quite different) techniques to show that an implementation adheres to its specification

Proving:

*equational reasoning*Testing:

*property-based testing*

## Equational reasoning

We know that Haskell supports

*equational reasoning*, i.e., changing equals by equalsReferential transparency is key!

## Example: insertion sort

Length of lists

length :: [a] -> Int length [] = 0 length (x : xs) = 1 + length xs

Inserting an element in an ordered list

insert :: Ord a => a -> [a] -> [a] insert x [] = [x] insert x (y : ys) | x <= y = x : y : ys | otherwise = y : insert x ys

Insertion sort

isort :: Ord a => [a] -> [a] isort [] = [] isort (x : xs) = insert x (isort xs)

## Proving correctness of `isort`

We can capture the "right" behavior of

`isort`

with many propertiesWe consider that the length of a sorted list is the same as the list before being sorted.

length (isort xs) == length xs

for any

*finite*and*well-defined*list`xs`

How do we prove it?

Properties regarding data types can often be proved by

*induction*To prove that

P xs

holds for a given property

`P`

and list`xs`

, it is enough to prove that*Base case*:P []

holds.

*Inductive case*:Assuming that

P xs

holds for any

`xs`

, then it must holdP (x:xs)

for any

`x`

We try to prove

length (isort xs) == length xs

by induction

*Base case*:length (isort []) =?= length []

Symbol

`=?=`

is used to indicate uncertainty about the equality. In other words,`length (isort []) =?= length []`

indicates that we are not sure if the equality holds. After all, that is what we should prove!length (isort []) == {definition isort.0} length [] == {definition length.0} 0 == {definition length.0} length []

So, we complete the proof for the base case.

*Inductive case*:This is often the most interesting case. We assume that

length (isort xs) == length xs

and we should show that

length (isort (x:xs)) =?= length (x:xs)

So, we start trying to unfold definitions.

length (isort (x:xs)) == {definition isort.1) length (insert x (isort xs))

At this point, to continue unfolding the expression, we need to do case analysis on

`xs`

, i.e.,`xs == []`

and`xs == y:ys`

.*Deconstructing the inductive argument is not always a good idea*. It might be an indication that we need to think about an auxiliary lemma(s).

## Auxiliary lemmas

If we see the expression where we got stuck

length (insert x (isort xs))

What can we know about it? Can it be generalized?

Generalization is*very*important to simplify expressions and make proofs simplerWe can

*generalize*the expressionlength (insert x (isort xs))

to be

length (insert x ys)

What can we say about that?

We would like to show that

length (insert x ys) == 1 + length ys

How can we prove it? By induction!

*Base case*:length (insert x []) == {definition insert.0} length [x] == {definition length.1} 1 + length []

*Inductive case*:We assume that

length (insert x ys) == 1 + length ys

and we should prove that

length (insert x (y:ys)) == 1 + length (y:ys)

Thus, we take

length (insert x (y:ys))

and unfold definitions.

*Case*:`x <= y`

length (insert x (y:ys)) == {definition insert.1} length (x:y:ys) == {definition length.1} 1 + length (y:ys)

*Case*:`otherwise`

length (insert x (y:ys)) == {definition insert.1} length (y : insert x ys) == {definition length.1} 1 + length (insert x ys) == {inductive hypothesis!) 1 + (1 + length ys) == {definition length.1} 1 + length (y:ys)

## Proving `isort`

with auxiliary lemma

We were stuck in the inductive case of

length (isort (x:xs)) =?= length (x:xs)

To prove this, as before, we assume

length (isort xs) == length xs

and we unfold the expression

`length (isort (x:xs))`

.length (isort (x:xs)) == { definition isort.1 } length (insert x (isort xs)) == {by auxiliary lemma taking ys == (isort xs) } 1 + length (isort xs) == {by induction hypothesis} 1 + length (xs) == { definition length.1 } length (x:xs)

The proof goes through!

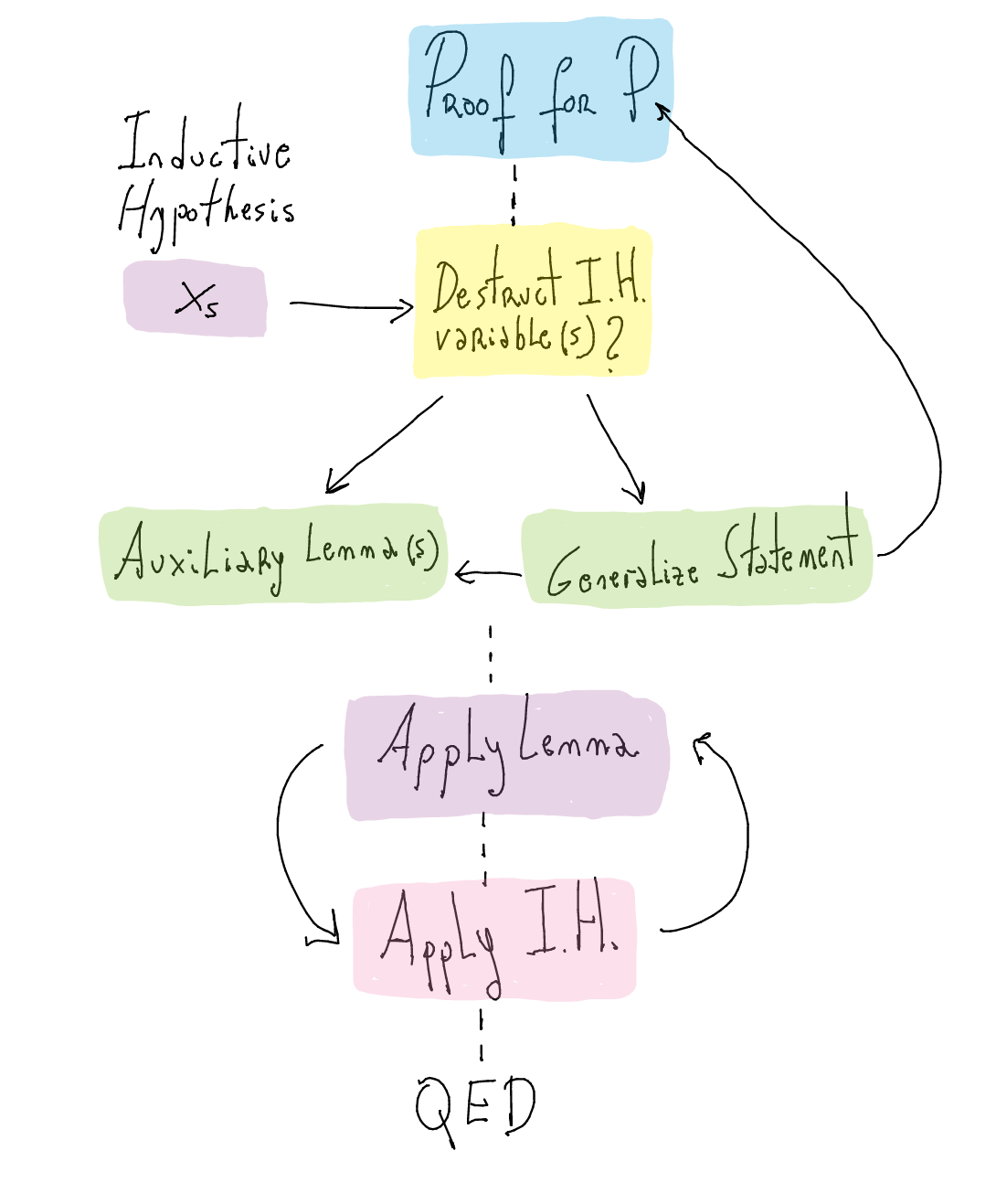

It is often the case that auxiliary lemma(s) are needed in order to complete the proofProof skeleton

When doing a proof, it is often the case that, in order to make some progress, it is necessary to destruct a variable which is part of the inductive hypothesis (IH). This situation might be a hint that we need to either

*generalize the theorem statement*or to prove*auxiliary lemmas*. Bear in mind that auxiliary lemmas' statements might be a*generalization*of what the proof needs (see next example below). To finish the proof, we then proceed to apply the auxiliary lemmas first and then the IH or vice versa.

## Proving more properties

Consider the function

reverse :: [a] -> [a] reverse [] = [] reverse (x:xs) = reverse xs ++ [x]

How do we know if the function is correct?

We can start by lining up several properties that it must fulfill

length (reverse xs) == length xs reverse (reverse xs) == xs ...

Let us try to prove

reverse (reverse xs) == xs

We proceed by induction on the list structure.

*Base case:*reverse (reverse []) == {definition reverse.0} reverse [] == {definition reverse.0} []

*Inductive case:*We assume that

reverse (reverse xs) == xs

and we need to prove that

reverse (reverse (x:xs)) =?= (x:xs)

So, we have that

reverse (reverse (x:xs)) == {definition reverse.1} reverse (reverse xs ++ [x])

At this point, in order to proceed, we need to

*destruct*the inductive variable`xs`

. As before, this situation is an indication that we need to think about an auxiliary lemma or generalize the theorem statement.Let us scrutinize where we got stuck.

reverse (reverse xs ++ [x])

What can we say about this expression? It is quite complicated. Let us

*generalize*it in order to simplify it!reverse (ys ++ zs)

Observe that if we make

`ys == reverse xs`

and`zs == [x]`

, we obtain the expression where we got stuck in the proof.What can we say about this expression?

reverse (ys ++ zs) =?= reverse zs ++ reverse ys

The reverse of two concatenated lists is the concatenation of their reverse! This is going to be our auxiliary lemma.

## Auxiliary lemma for `reverse`

We are going to assume some properties about concat

xs ++ [] == xs (xs ++ ys) ++ zs == xs ++ (ys ++ zs)

Exercise: prove the properties of`(++)`

described aboveWe proof by induction on

`ys`

reverse (ys ++ zs) == reverse zs ++ reverse ys

*Base case*:reverse ([] ++ zs) == {definition (++)} reverse zs == {property of (++)} reverse zs ++ [] == {definition reverse.0} reverse zs ++ reverse []

*Inductive case*:We assume that

reverse (ys ++ zs) == reverse zs ++ reverse ys

and we need to prove that

reverse ((y:ys) ++ zs) == reverse zs ++ reverse (y:ys)

reverse ((y:ys) ++ zs) == {definition (++)} reverse (y:(ys ++ zs)) == {definition of reverse.1 with x == y, xs == ys ++ zs} reverse (ys ++ zs) ++ [y] == {inductive hypothesis} (reverse zs ++ reverse ys) ++ [y] == {associativity of (++)} reverse zs ++ (reverse ys ++ [y]) == {definition of reverse.1} reverse zs ++ reverse (y:ys)

## Proving `reverse`

with auxiliary lemma

We come back to the case where we got stuck

reverse (reverse (x:xs)) =?= (x:xs)

So, we have that

reverse (reverse (x:xs)) == {definition reverse.1} reverse (reverse xs ++ [x]) == {by auxiliary lemma with ys == reverse xs, zs == [x] reverse [x] ++ reverse (reverse xs) == {by inductive hypothesis} reverse [x] ++ xs == {definition of reverse.1} ([] ++ [x]) ++ xs == {definition (++)} [x] ++ xs == {definition of (:)} x:[] ++ xs == {definition of (++)} x:([] ++ xs) == {definition of (++)} (x:xs)

The proof now goes through!

## Equational reasoning summary

Equational reasoning can be an elegant way to prove properties of a program

Equational reasoning can be used to establish a relation between an

*obviously correct*Haskell program (a specification) and an efficient Haskell programEquational reasoning is usually quite lengthy

Careful with special cases (laziness):

`undefined`

values;- infinite values

It is not feasible to prove properties about every Haskell program using equational reasoning

Other proof methods

## Property-based testing

Rather than formally proving that a program is correct, we are going to test it against its specification

Importantly, the test cases are generated automatically

We will use QuickCheck, a Haskell library developed at Chalmers by Koen Claessen and John Hughes

QuickCheck is essentially an embedded domain-specific language (EDSL) for defining properties and test implementations against them

Automatic datatype-driven generation of random test data, i.e., QuickCheck uses the type information of your data to generate test cases!

Users can extend the generation of random test data to fit their needs

Shrinks failing test cases
