Domain Specific Embedded Languages

A common problem in software development

Reading: DSL for the Uninitiated by Debasish Ghosh

• Business users speak the domain terminology
  • Stock market: bonds, stocks, options, etc.
  • Cryptography: symmetric keys, asymmetric keys, games, perfect secrecy, chain blocked cypher, etc.
  • Computer graphics: vectors, bézier curve, line, bézier spline, etc.
• Developers speak software language
  • Data types
  • Functions
  • Modules
  • Lazy evaluation

• There is a semantic gap.


• How can we bridge the gap?
  • Modeling the domain in software.
  • In other words, we should aim to design a domain model in your software.
• How do we start? What if the domain is colossal?
  • Identify minimum domain model elements.
  • Propose constructs that glue together domain model elements and create other (possible more complex) ones.
  • Define how minimum and glued elements behave in your software.

• The domain model elements and the corresponding constructs are the common language between the developer and the business users.


• It is the domain specific language (or DSL) which brings the gap between business users and developers.

EDSL vs. DSL

• What is the different between DSL and embedded DSL (or EDSL)?
• A domain specific language can be provided as stand alone.
  • You write a compiler/interpreter for the DSL and provide all the tools to program with it

• In contrast, an embedded DSL is written in a host language.

  • It inherits the infrastructure (and programming language abstractions) of the host language.
  • In this course, we use Haskell as the host language

  • We will leverage Haskell

    • powerful type system,
    • generic programming features,
    • and tools

    for programming our DSL.

• Many abstractions used in functional programming (e.g., monads) are known for being suitable to implement EDSLs. (We will see many examples along the course)

EDSL: Parts

EDSL Part	Description
Types	Model a concept
Constructors	Construct the simplest elements of such types
Combinators	Build complex elements from simpler ones
Run functions	Observe the EDSL elements, possibly producing side-effects when doing so

Let us get into a specific first in order to create a EDSL in Haskell.

Shapes: a simple EDSL for vectorial graphics

code

• Design a language to describe vectorial graphics.
  • Made of some basic shapes.
  • They scale without loosing definition.
  • Ideal for logos.
  • Take less space as pixel-based formats (e.g., BMP, JPEG, etc.)

Types and constructors

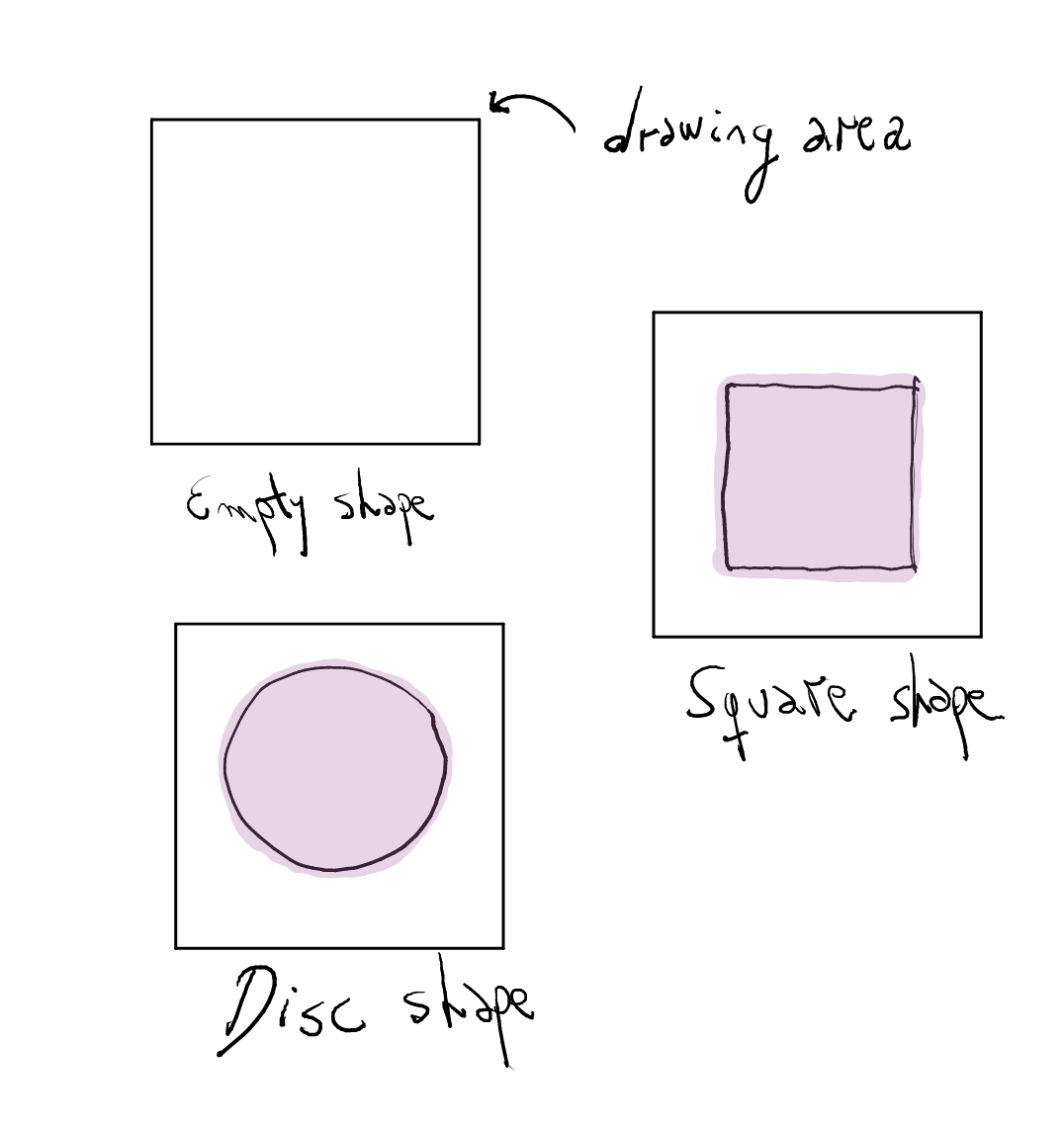

• We want to model simple graphics



    newtype Shape
    empty  :: Shape
    disc   :: Shape
    square :: Shape

Some basic combinators

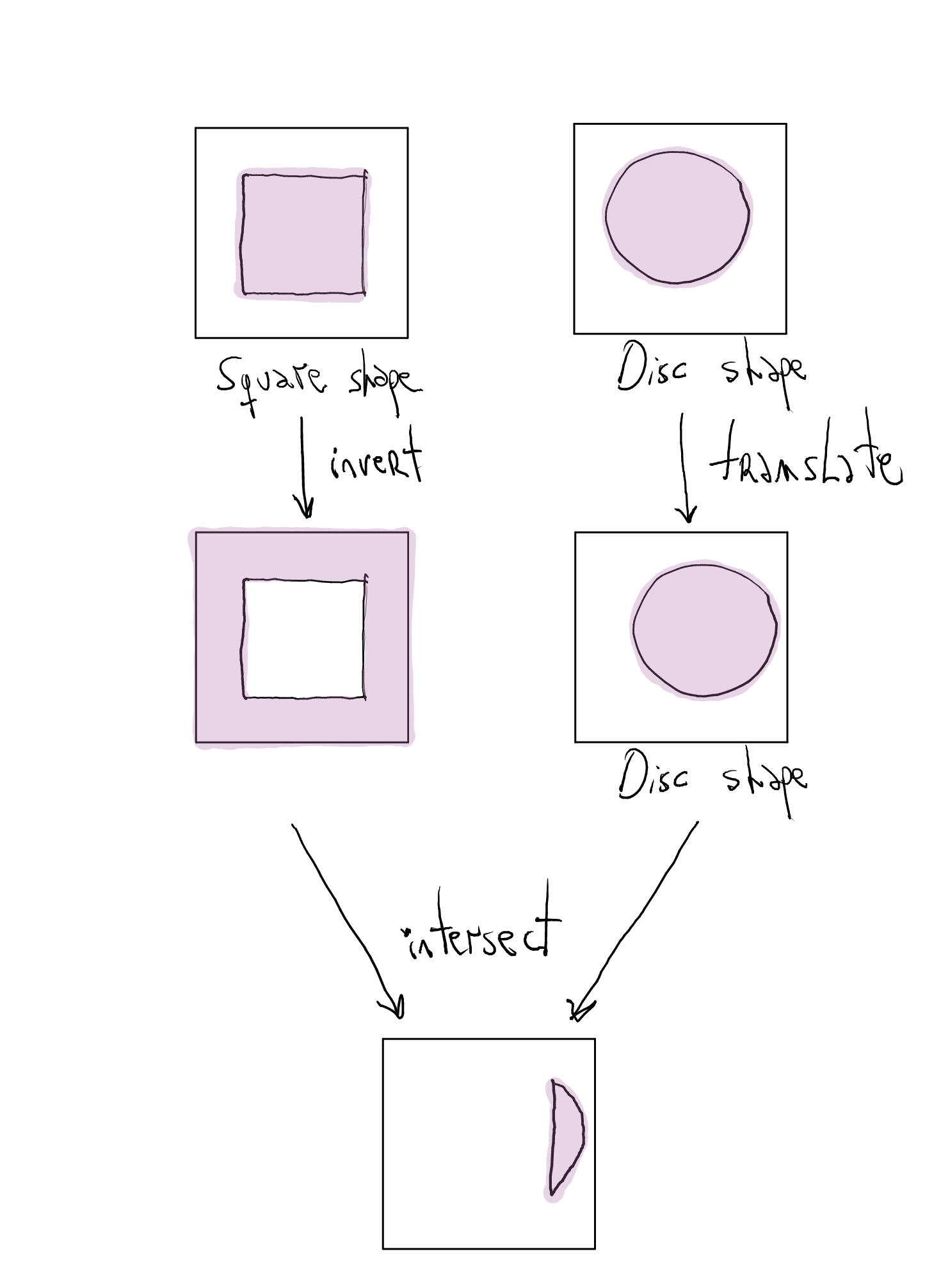

• Let us visualize some useful combinators



  invert    :: Shape -> Shape
  intersect :: Shape -> Shape -> Shape
  translate :: ?


• What about translate? We will move the figure based on a vector, i.e., on the x- and y-axes.

  invert    :: Shape -> Shape
  intersect :: Shape -> Shape -> Shape
  translate :: Vec   -> Shape -> Shape


  A new type (Vec) has appeared in the interface!

A run (observation) function

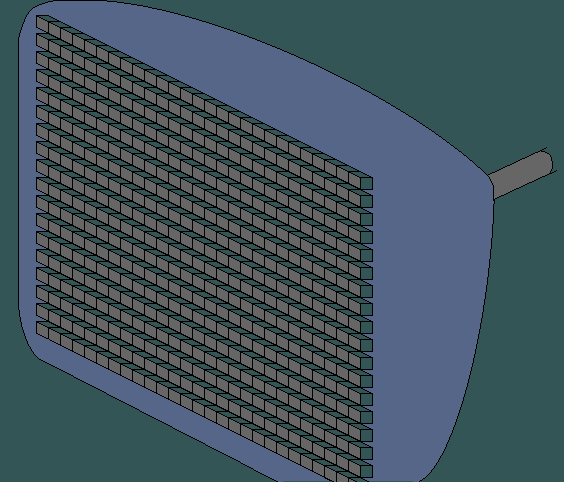

• A raster is going to render the image



• The raster is the one "observing" shapes and activating the corresponding pixels.

• We assume the rater is composed of points (pixels if you wish)

  inside :: Point -> Shape -> Bool


  A new type (Point) has appeared in the interface!

Shapes: the interface

• So far

  newtype Shape

  empty     :: Shape
  disc      :: Shape
  square    :: Shape
  invert    :: Shape -> Shape
  intersect :: Shape -> Shape -> Shape
  translate :: Vec   -> Shape -> Shape
  inside    :: Point -> Shape -> Bool

• Aspects to think when designing an API

  • Compositionality: combining elements into more complex ones should be easy and natural.
  • Abstraction: the user should not have to know (or be allowed to exploit) the underlying implementation of your types.

• Classification of operations

  • A primitive operation is defined exploiting the definitions of the involved types.
  • A derived operation is defined purely in terms of other operations.

Implementation: shallow embedding

• Types: represent elements by their semantics, i.e., what they mean. It is usually done by leveraging some abstractions of the host language.

  data Vec    = V { vecX, vecY :: Double }

  type Point  = Vec
  ptX = vecX
  ptY = vecY
  newtype Shape = Shape (Point -> Bool)


  In this case, we leverage Haskell functions!

• Run functions: they are almost for free!

  inside :: Point -> Shape -> Bool
  p `inside` Shape sh = sh p


• Constructor functions and combinators do most of the work.

   -- Constructors
   empty :: Shape
   empty = Shape $ \_ -> False

   disc :: Shape
   disc = Shape $ \p -> ptX p ^ 2 + ptY p ^ 2 <= 1

   square :: Shape
   square = Shape $ \p -> abs (ptX p) <= 1 && abs (ptY p) <= 1


  -- Combinators
  invert :: Shape -> Shape
  invert sh = Shape $ \p -> not (inside p sh)

  intersect :: Shape -> Shape -> Shape
  intersect sh1 sh2 = Shape $ \p -> inside p sh1 && inside p sh2

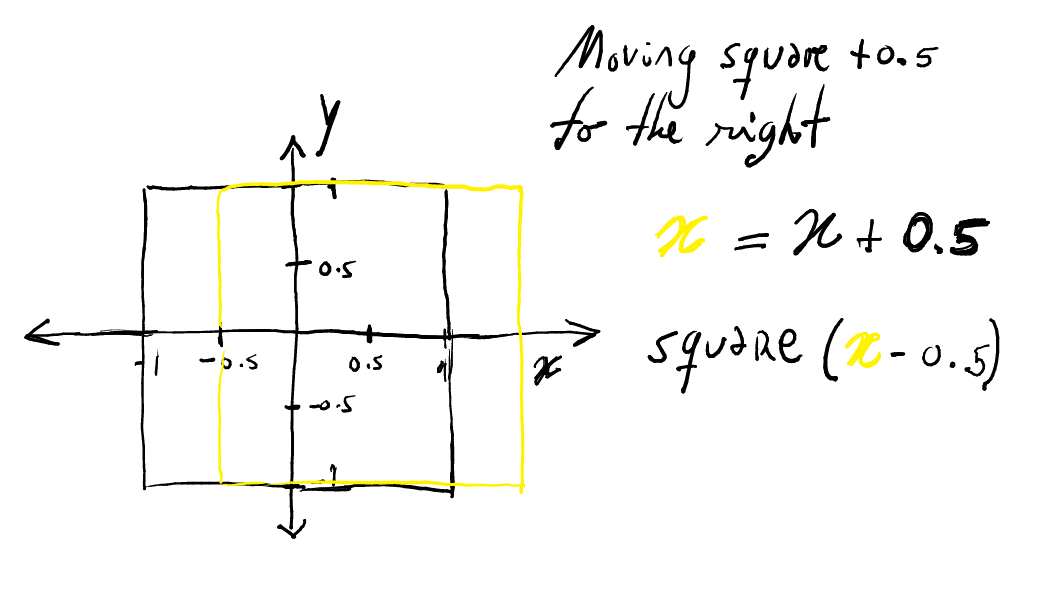

  Translate deserves a bit of attention.

  Observe that if a picture is moved `n` units to the left, then the characteristic functions should be applied to `x - n` instead.

  sub :: Point -> Vec -> Point
  sub (V x y) (V dx dy) = V (x - dx) (y - dy)

  translate :: Vec -> Shape -> Shape
  translate v sh = Shape $ \p -> inside (p `sub` v) sh


Transformation matrices

Recommended reading

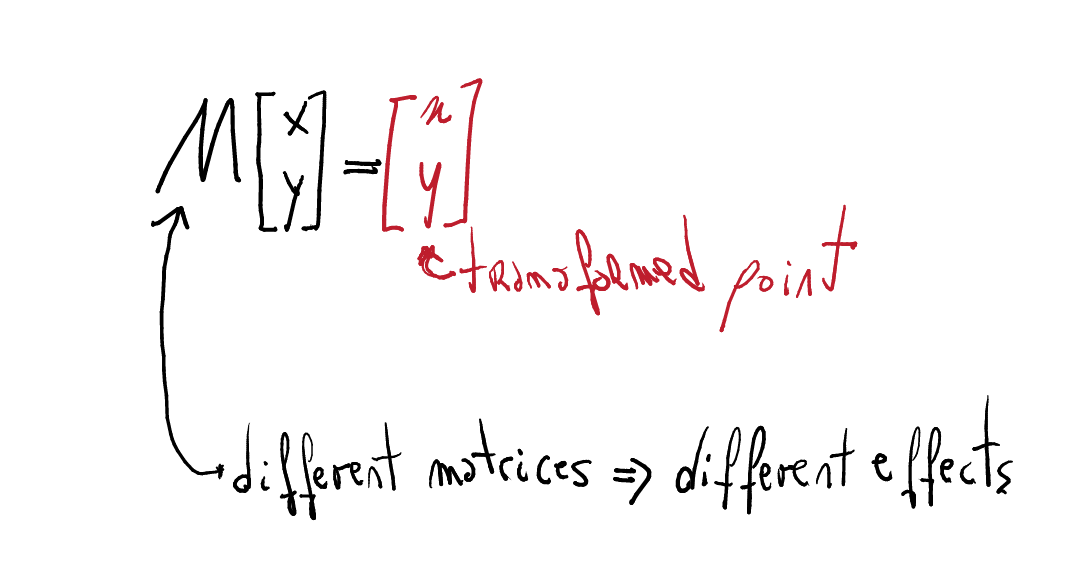

• Basic idea

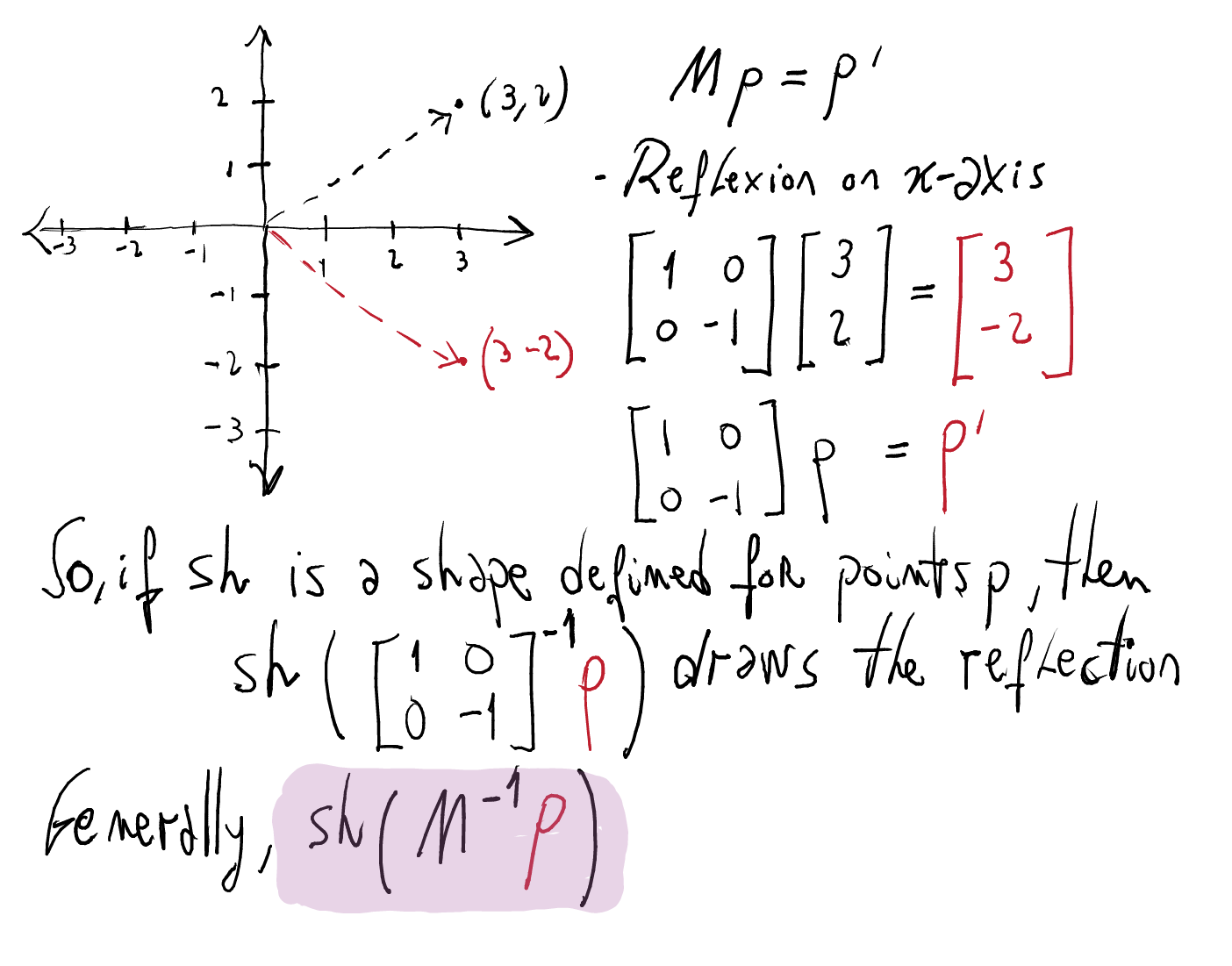

• Let us see a concrete example: x-axis reflection



• Observe that a point appearing in the "screen" depends if such point manipulated with some algebraic values appears in the considered shape.

• We begin by introducing a new type for matrices and an inverse operation for them.

  data Matrix = M Vec Vec

  inv :: Matrix -> Matrix
  inv (M (V a b) (V c d)) = matrix (d / k) (-b / k) (-c / k) (a / k)
   where k = a * d - b * c


• Now the transform operation

  transform :: Matrix -> Shape -> Shape
  transform m sh = Shape $ \p -> (inv_m `mul` p) `inside` sh
     where inv_m = inv m


• Exercise: can you write the following derived operations?

  -- reflects the shape on the x-axis
  x-reflection :: Shape -> Shape

  -- reflects the shape on the y-axis
  y-reflection :: Shape -> Shape

  -- Enlarge the shape by n% (n being the first argument)
  zoom_in :: Int -> Shape -> Shape


Shape rotation

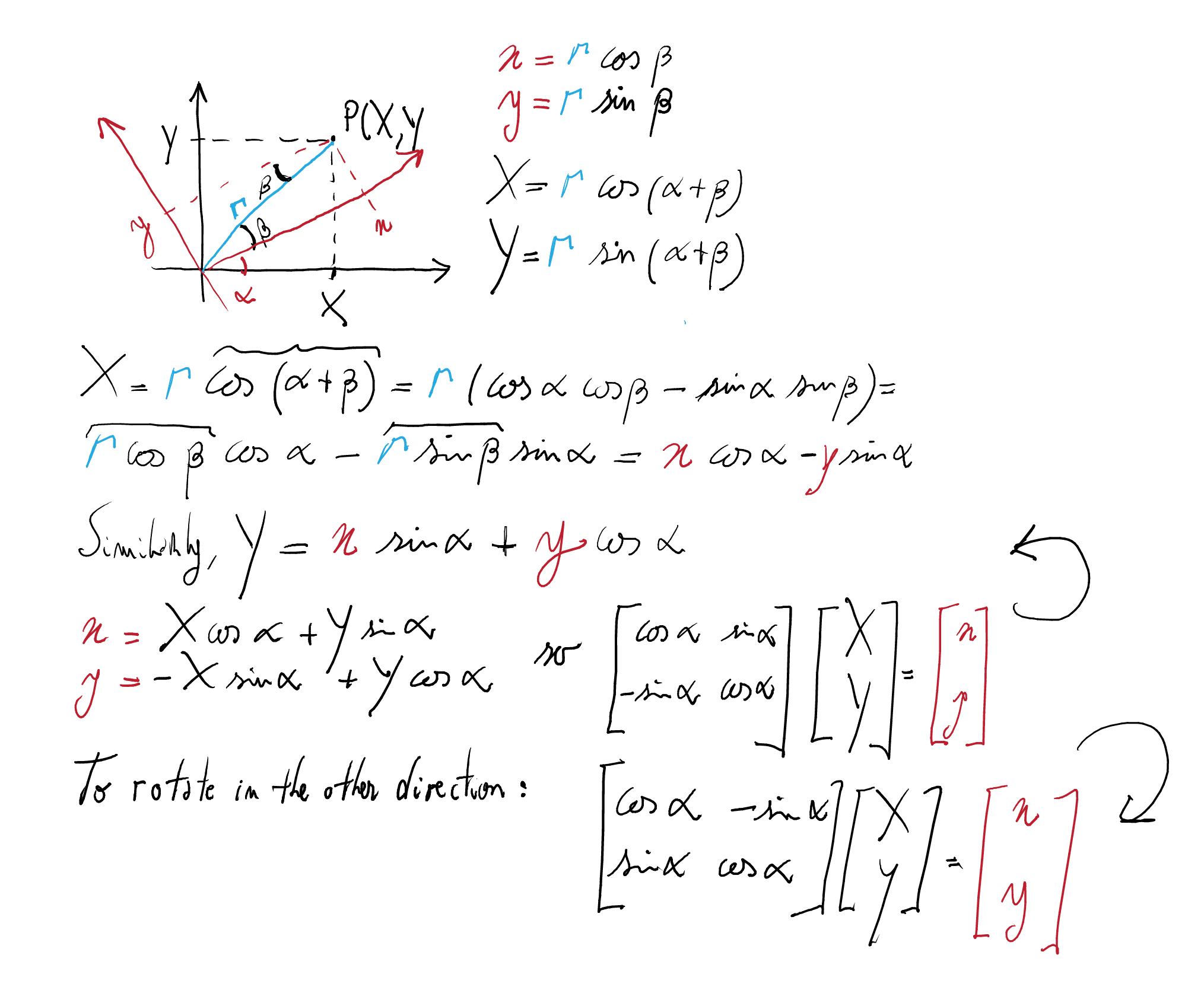

• Axes rotation (math revisited)



• Which direction is the square shape rotated?

  transform (m (pi/10)) square
    where m alpha = matrix
                       (cos alpha)    (sin alpha)
                       (-(sin alpha)) (cos alpha)

  Clock-wise! Can you see why?

Points, Vectors, and Matrices in a separate module

• The interface for shapes uses auxiliary mathematical abstractions

• We define them in a different module (Matrix.hs)

Alternative implementation : deep embedding

• Types: represent how shapes are constructed (i.e., either by a basic shape or a combination of them).

  data Shape where
    -- Constructor functions
    Empty   :: Shape
    Disc    :: Shape
    Square  :: Shape
    -- Combinators
    Translate :: Vec ->   Shape -> Shape
    Transform :: Matrix-> Shape -> Shape
    Intersect :: Shape -> Shape -> Shape
    Invert    :: Shape -> Shape


• Constructors and combinators: almost for free! Simply map them into the appropriated constructors in the data type.

  empty  :: Shape
  empty  = Empty

  disc   :: Shape
  disc   = Disc

  square :: Shape
  square = Square

  transform :: Matrix -> Shape -> Shape
  transform = Transform

  translate :: Vec -> Shape -> Shape
  translate = Translate

  intersect :: Shape -> Shape -> Shape
  intersect = Intersect

  invert :: Shape -> Shape
  invert = Invert


• Run (observation) function: all the work is here!

   inside :: Point -> Shape -> Bool
   _p `inside` Empty             = False
   p  `inside` Disc              = sqDistance p <= 1
   p  `inside` Square            = maxnorm  p <= 1
   p  `inside` Translate v sh    = (p `sub` v) `inside` sh
   p  `inside` Transform m sh    = (inv m `mul` p) `inside` sh
   p  `inside` Union sh1 sh2     = p `inside` sh1 || p `inside` sh2
   p  `inside` Intersect sh1 sh2 = p `inside` sh1 && p `inside` sh2
   p  `inside` Invert sh         = not (p `inside` sh)

   -- * Helper functions
   sqDistance :: Point -> Double
   sqDistance p = x*x+y*y -- proper distance would use sqrt
     where x = ptX p
           y = ptY p

   maxnorm :: Point -> Double
   maxnorm p = max (abs x) (abs y)
     where x = ptX p
           y = ptY p


Shallow vs. Deep embedding

• A shallow embedding (when it works out) is often more elegant and compact.

  • Working out the type which provides the right semantics might be tricky.

• A deep embedding is easier to extend.

  • Adding new operations (by adding new constructors).
  • Adding new run functions.
  • Adding optimizations (e.g., by data type manipulation).

• Most of the time you get a mixed between shallow and deep embedding.

• In any case, abstraction is important!

  module Shape.Shallow
  (
    --  Types
    Shape -- abstract
    --  Constructor functions
  , empty, disc, square
    --  Primitive combinators
  , transform, translate
  , union, intersect, invert
    --  Run functions
  , inside
  )
  where ...


  The interface should not change based on a shallow or deep embedding implementation! No difference for the user of the EDSL!

Rendering a shape to ASCII-art

• A very interesting run function

• It introduces the concept of windows

  defaultWindow :: Window
  defaultWindow = Window
    { bottomLeft  = point (-1.5) (-1.5)
    , topRight    = point 1.5 1.5
    , resolution  = (40, 40)
    }


  • It has a dimension in terms of characters
  • It has a dimension in terms of points

• The render function essentially maps points to characters in a window.

  -- | Generate a list of evenly spaces (n :: Int) points in an interval.
  samples :: Double -> Double -> Int -> [Double]

  -- | Generate the matrix of points corresponding to the pixels of a window.
  pixels :: Window -> [[Point]]

  -- | Render a shape in a given window.
  render :: Window -> Shape -> String
  render win sh = unlines $ map (concatMap putPixel) (pixels win)
    where
      putPixel p  | p `inside` sh = "[]"
                  | otherwise     = "  "


  • Function unlines and concatMap are standard.

Discussion

• Adding colored shapes
  • Discuss what you need to do
• Bad shallow implementations
  • Looking at the render run function, we might decide to go for

    newtype Shape = Shape (Window -> String)


  • Discuss the problem with this implementation
• Other questions/comments?

Signal: Another EDSL

• We are interested to produce animated shapes.
• For that, we need to model how they might change based on time.
• We take inspiration from functional reactive programming approaches.
• We introduce the concept of Signal, a value that changes over time.

• More specifically, we have the following initial API for our new EDSL.

  -- Constructors
  constS :: a -> Signal a
  timeS  :: Signal Time
  -- Combinators
  ($$)   :: Signal (a -> b) -> Signal a -> Signal b
  -- Run function
  sample :: Signal a -> Time -> a


  • Function constS produces a constant value, i.e., it does not change with time
  • Function timeS reveals the current time, i.e., it is a signal which arrives at time T and produces the value T
  • Combinator (SS) takes a functional signal and converts it into a function which changes Signal a into Signal b
  • Run function sample just extracts the meaning of a signal

How do we program with it?

code

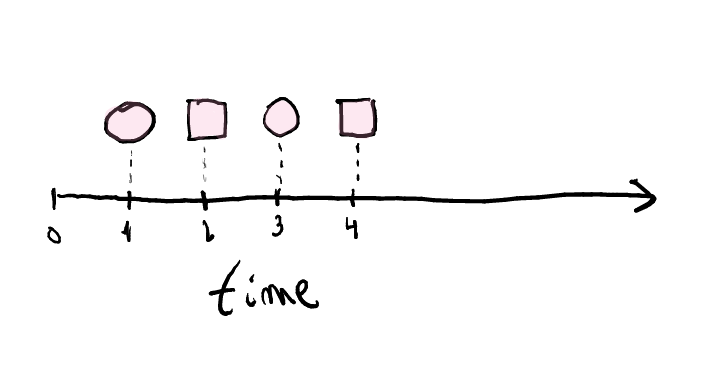

• Let us try to get the next simple animation:



• We write time-dependent functions which generate shapes

  • A function for intermittently displaying two shapes

    -- | It displays a shape on "odd times" and another one in "even times".
    change :: Shape -> Shape -> Time -> Shape
    change sh1 sh2 t
           | odd (floor t) = sh1
           | otherwise     = sh2

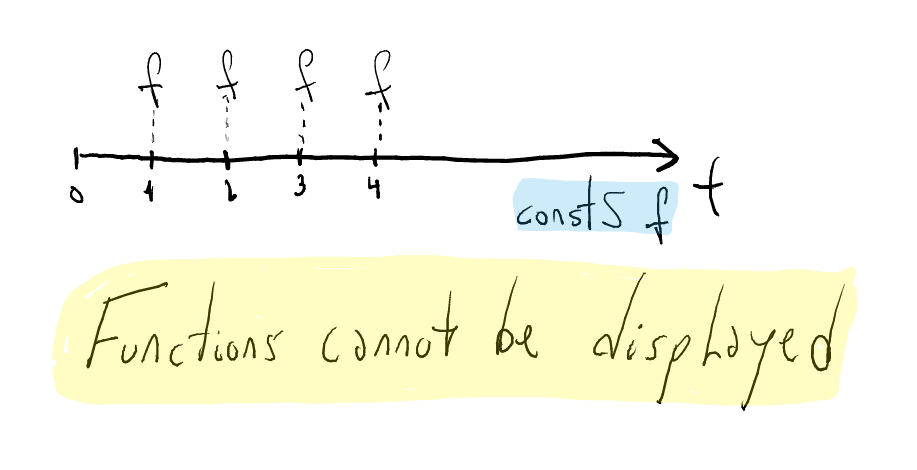

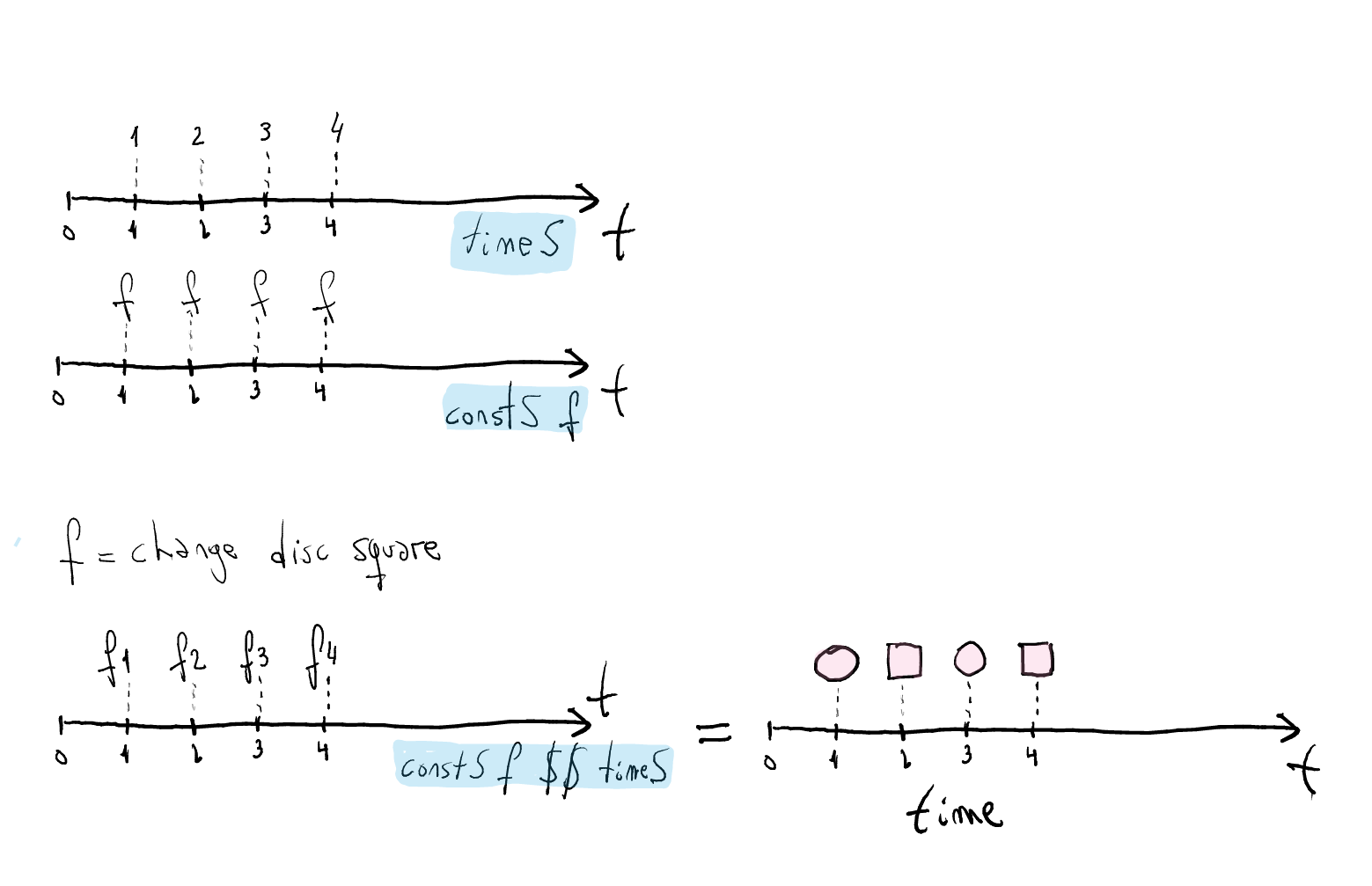

• Convert them into signals

    constS (change disc square) :: Signal (Time -> Shape)




• Convert the functional signal into a signal (corresponding to the image of the function) by applying time information. How do get time information? We use timeS!

  constS (change disc square) $$ timeS



More operations

• We will consider two more operations

  -- Combinator
  mapT   :: (Time -> Time)  -> Signal a -> Signal a
  -- Derived operation
  mapS   :: (a -> b) -> Signal a -> Signal b


• Combinator mapT allows to alter the mapping among Time and Shape

  to_zero :: Time -> Time
  to_zero = const 0

  always_disc = mapT to_zero square_disc


• Exercise: write mapS as a derived operation

Implementation: shallow embedding

We will model signals as Haskell functions of time Time -> a

type Time = Double
newtype Signal a = Sig {unSig :: Time -> a}

constS :: a -> Signal a
constS x = Sig (const x)

timeS :: Signal Time
timeS = Sig id

($$) :: Signal (a -> b) -> Signal a -> Signal b
fs $$ xs = Sig (\t -> unSig fs t  (unSig xs t))

mapT :: (Time -> Time) -> Signal a -> Signal a
mapT f xs = Sig (unSig xs . f)

sample :: Signal a -> Time -> a
sample = unSig

Implementation: deep embedding

type Time = Double
data Signal a where
  ConstS :: a -> Signal a
  TimeS  :: Signal Time
  MapT   :: (Time -> Time) -> Signal a -> Signal a
  (:$$)  :: Signal (a -> b) -> Signal a -> Signal b

constS = ConstS
timeS  = TimeS
...

The run function generates the functions of type Time -> a (most of the work is here!)

-- | Sampling a signal at a given time point.
sample (ConstS x)  = const x
sample TimeS       = id
sample (f :$$ s)   = \t -> sample f t $ sample s t
sample (MapT f s)  = sample s . f

Go live!

code

Summary

• Different kind of operations
  • Constructors, combinators, and run functions
  • Primive or derived operations
• Implementation styles
  • Shallow embedding: representation given by semantics
  • Deep embedding: representation given by operations
• Remember
  • Compositionality
  • Abstraction

---
