Exercise 3

In this weeks's exercise, we will work with the following problems.

For this exercise, the file counterPrograms.zip contains three subdirectories, each with its incomplete programs. The programs are described below. Each program can be updated and tested later.

The main task during this practice session is to write several different classes all of which implements the interface Counter.

1. (Rehearsal; should go fast) Define a function

   public static boolean contains(int elem, int[] a);


   such that contains(elem, a) determines if the number elem can be found in the array a.
2. The picture below shows a counter which can be used for counting a large number of people, passing by, when there is a risk of misscounting.



   Such counter stores an integer value. As a user, you can do three things with it:

   • Increment the counter is incremented by one, by pressing the nickel-plated button at the top.
   • Resetting the counter by turning the black knob to right.
   • Read out the current value, by looking in the window.
   This is reflected in the interface:

   public interface Counter {
       public void count();
       public void reset();
       public int getValue();
   }


   Define a class SimpleCounter, which implements this interface, i.e.:
   • method public void count(), which increases the counter's value by one.
   • method public void reset(), which resets the counter.
   • method public int getValue(), which returns the current value.
   The physical counter is shipped from the factory with a value set to 0; in analogy with this, Java counters should have constructors setting the value to 0.
3. What printout is obtained when running the following programs? Provide a brief explanation for each line:

   public class Question3 {

     public static void changeValues(int n,
                                     SimpleCounter c1,
                                     SimpleCounter c2) {
       n++;
       c1.count();
       c2 = new SimpleCounter();
       c2.count();
     }

     public static void main(String[] args) {
       int k=5;
       SimpleCounter a = new SimpleCounter();
       SimpleCounter b = new SimpleCounter();
       changeValues(k,a,b);
       System.out.println("k="+k);
       System.out.println("a="+a.getValue());
       System.out.println("b="+b.getValue());
     }
   }


4. This task requires access to a computer and can be done later.

   The four files in the subdirectory simpleCounter, together with class SimpleCounter.java from exercise 2 is a graphical programs that can replace the physical counter; a picture of the program during execution is given below:



   Add your SimpleCounter.java to the directory, compile and test the program.

5. Modify the class SimpleCounter by adding another constructor that takes a parameter int init. A counter created with this constructor has the starting value init instead of zero. A class may thus have more than one constructor, if they differ in the type and/or number of parameters.

   Now, change the main method in the program so that you instead create a counter with initial value 95. Run the program and click a few times until the counter value passes 100. Apparently, the graphical program is poorly prepared for this; the window accommodates only two digits.

   One can imagine two different measures:

   • Improve the graphics so that the window can accommodate more digits. We should not be doing this.
   • Make the counter so that it switches to zero when the counter value is 100. This is how a physical counter functions (It has only four digits, so it can count up to 9999). We will now modify the counter so that it works in this way.
6. Define a class BoundedCounter which also implements Counter, but that is different from Counter in two ways:
   • The constructor takes a parameter int modulus; This parameter specifies the value at which the counter will switch to zero.
   • The count is changed so that it counts modulo modulus, i.e., the maximum value of the counter is modulus-1. If count is invoked again, it will cause the counter's value to reset to zero.
   Then replace the class SimpleCounter with BoundedCounter in the program from task 4 and test. Note that in addition to adding the file BoundedCounter.java you need to change the code in Main.java; class CounterPanel does not know with what kind of counters it is working.

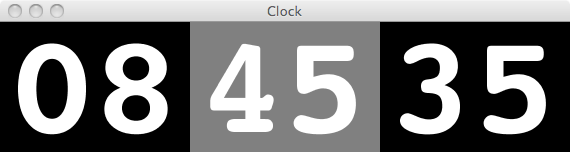

7. In clockCounter there is a program that acts as a digital clock. This is a screenshot:



   Note that the CounterPanel in this catalog is the same as in the previous      programs. Here we have three objects of this class, so we have three separate counters.

   The program starts by giving the current time on the command line; for example:

   > java Main 8 42 20


   Unfortunately, there is no class ChainedCounter.java. You must write it. This class also implements the interface Counter, but it differs from the BoundedCounter as follows:

   • The constructor takes three parameters:
     • int init; the initial value.
     • int modulus; the modulus for the counter.
     • Counter next; another counter. This must be saved as an instance variable; See the next section for how it is used.
   • The count function works differently. In addition to the behavior of the BoundedCounter do you have the following. When the counter turns from modulus-1 back to zero, it should also call next.count(). That is exactly how a (digital) clock works; For example, when the counter for seconds is 59, it is then reset back to zero and at the same time the counter for minutes is increased with one.

     You have to check that next is not null before trying to do next.count(). The reason is that a chain of counters has to end. In a clock the counter for hours has no next counter, so it is constructed with null as the third parameter.

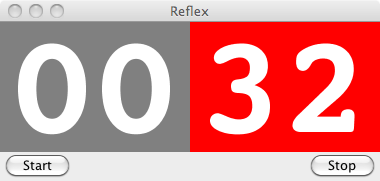

8. In the reflexCounter folder there is an additional program which uses a ChainedCounter, to test the user's reaction:



   Press Start and wait until the counter begins to count; press the Stop as soon as possible.

Optional

1. Modify the class RectangleComponent from the example in the lecture to show a square of size 50 by 50 and change the color of the rectangle to red. After you have drawn the first square, move and rescale the box object by using its methods translate and grow. Draw the modified box in black. The combined picture must look like this:


   Consult the Java API for the method Graphics.setColor. It will let you to change the current color.

2. In addition to the method draw, the Graphics2D class has also the method fill which fills in some shape with the current color. Draw the Swedish flag by using one big blue rectangle and two smaller yellow rectangles over it. Experiment with the size and the coordinates of the rectangles. Consult the Java API for the methods Graphics.setColor and Graphics2D.fill.
