Workers

code

• What would it happen if you use pmap with a list of 1.000.000.000 elements?

• Sometimes, it is necessary to impose some resource limits

  • Parallel processes, open files, etc.

  • Gives stability to the system

• The workers model is designed for that goal

• We have tasks (computations) divided among a number of workers

  • Workers are simple processes

• Workers can be active or passive.

  • An active worker is a process already performing computations related to a task(s),
  • A passive worker is waiting to be assigned to a task(s).

• There is a server, called a pool, that keeps track of the tasks to be performed and has a fix number of workers willing to take those tasks.

• Server behavior

  • The initial state of the server is a queue of tasks and a list of passive workers

  • A worker can take more than a single task

  • An active worker becomes passive after finishing with the assigned task(s)

  • A passive worker becomes active when being assigned a task(s).

  • The server finishes execution when the queue of tasks is empty and there are no active workers

  • The server waits for a worker to return a result when the queue is empty or there are no more passive workers

  • When the task queue is not empty, the server gets a passive worker and assign some chunk of tasks to perform, i.e., the worker is now active

Implementation of workers

   worker(Compute) ->
       spawn (fun () -> worker_body(Compute) end ).

   worker_body(Compute) ->
            receive {Pid, Tasks} ->
                    Result = Compute(Tasks),
                    Pid ! {self(), Result},
                    worker_body(Compute)
            end.


• Implementation of the server

  -record(st, { tasks, aworkers, pworkers,
                 get, combine } ).

   %% Done
   work_load(#st{tasks = [], aworkers = []}, Results) -> Results;

   %% There are tasks to give to a passive worker
   work_load(St = #st{tasks = [Task | Tasks],
                      pworkers = [PWorker | PWorkers],
                      aworkers = AWorkers,
                      get = Get}
             , Results) ->
       {Chunk, TTasks} = Get([Task | Tasks]),
       PWorker ! {self(), Chunk},
       work_load(St#st{tasks = TTasks,
                       pworkers = PWorkers,
                       aworkers = [PWorker | AWorkers] }
                 , Results) ;

   %% No more passive workers or empty tasks, then
   %% wait for results
   work_load(St = #st{pworkers = PWorkers,
                      aworkers = AWorkers,
                      combine  = Combine }
             , Results) ->
       receive {Worker, Result} ->
                work_load (St#st{ pworkers = [Worker | PWorkers],
                                  aworkers = lists:delete(Worker, AWorkers) }
                           , Combine(Result, Results))
       end.


Function pmap using workers

• Limit the resources to two workers only

• Tasks are the elements in the list, i.e., [X1,X2,X3] has three tasks.

• The computation of the worker is just to apply F to its tasks, e.g., F(X).

• Getting a task is simply taking the first task

  get_pmap([X | Xs]) -> {X, Xs}.


• Combine a new result is simply to add it to the lists of computed results

  combine_pmap(R, Rs) -> [R | Rs].


• The initial result is the empty list

• pmap with two workers

  pmap(F, Xs) ->
     W1 = worker(F),
     W2 = worker(F),
     start(Xs, [W1, W2], fun get_pmap/1, fun combine_pmap/2, []).


On lock based programming

• Lock-based programming is difficult

• There are many potential problems:

  • Deadlock

  • Starvation

  • Non-compositionality

• Is there some way to eliminate at least some of these problems?

• Lock-based programming does not compose

  • Suppose you have two thread safe buffers and you want to atomically take an element from one of them and put it in the other

    class Buffer<Elem> {
         Elem get() {} ;
         void put(Elem) {} ;
    }


• A not so nice solution

  • Expose the the locks of the buffers

    class Buffer<Elem> {
          void aquireLock();
          void releaseLock();
          Elem get();
          void put(Elem);
    }


  • Lock both buffers before moving the element

    class TwoBuffer<Elem> {
          private Buffer<Elem> b1 ;
          private Buffer<Elem> b2 ;

          void copy_elem()
          {
             b1.aquireLock() ;
             b2.aquireLock() ;
             b2.put(b1.get()) ;
             b2.releaseLock() ;
             b1.releaseLock() ;
          }
        }


  • It reduces opportunities for concurrency

  • It breaks abstraction!

  • What is you need to involved 3 buffers?

    • The number of locks grows as we compose algorithms

    • Increases the risk of programming errors

• Lock-based synchronization can be seen as pessimistic concurrency: ”We always assume that we need mutual exclusion”

• Another option would be optimistic concurrency

  • Assume we have mutual exclusion
  • Perform our critical section
  • Check if everything was OK
  • Revert our actions if it was not (rollback/retry)
  • Otherwise proceed

Software Transactional Memories (STM)

• A concept to allow easy lock-free programming and optimistic concurrency

• Although the programming model is lock-free implementations uses locks

  • Hardware or software level
  • Programmer does not need to know about it!

• Transactions: standard database concept

  • A group of operations should execute atomically,

  • Or not at all

• One possible implementation of transactions

  • When writing to variables, do not actually modify them, instead the system keeps a log over all the reads and writes that are made

  • When the transaction is done the system checks that the read variables still have the same value as in the beginning of the transaction

  • If that is the case, make the changes permanent (known as commit)

  • Otherwise, rerun the transaction (known as rollback or retry)

  • To detect if a variable has changed, we assume a version number for each variable in the transaction

• Example

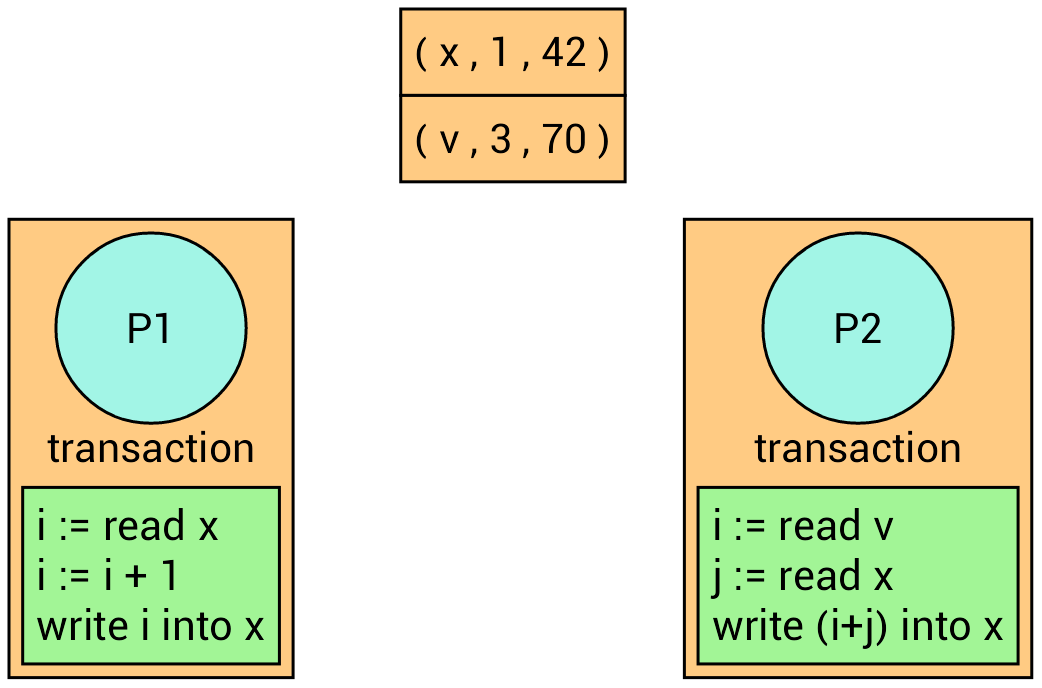

We have two processes with two different transactions.

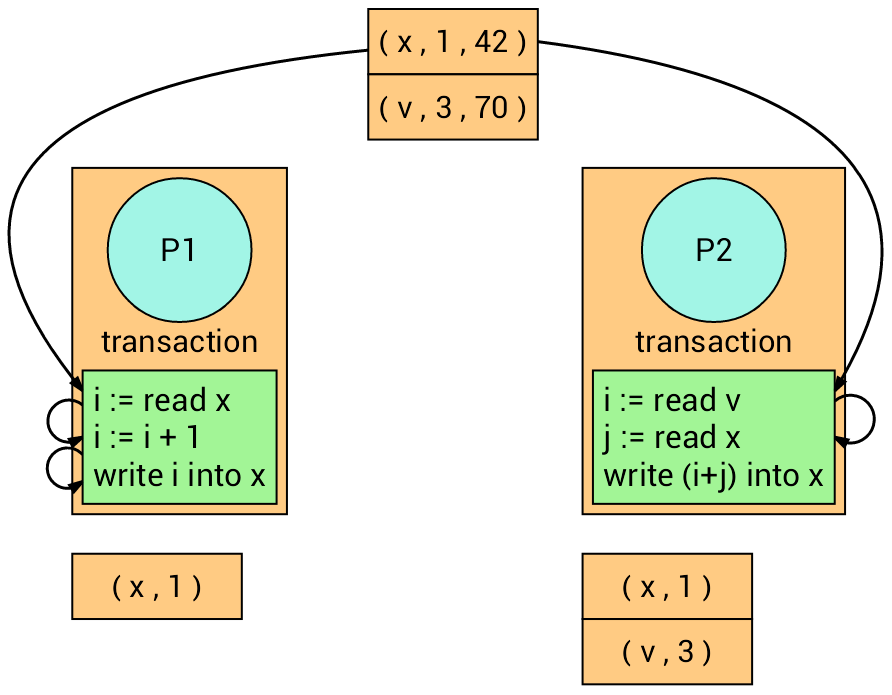

Now, both transactions read their corresponding variables. Each transaction recalls the version number of the read variables.

The transaction on the left firstly writes into variable x, and the transaction on the right follows but it fails (Why?) and retry.

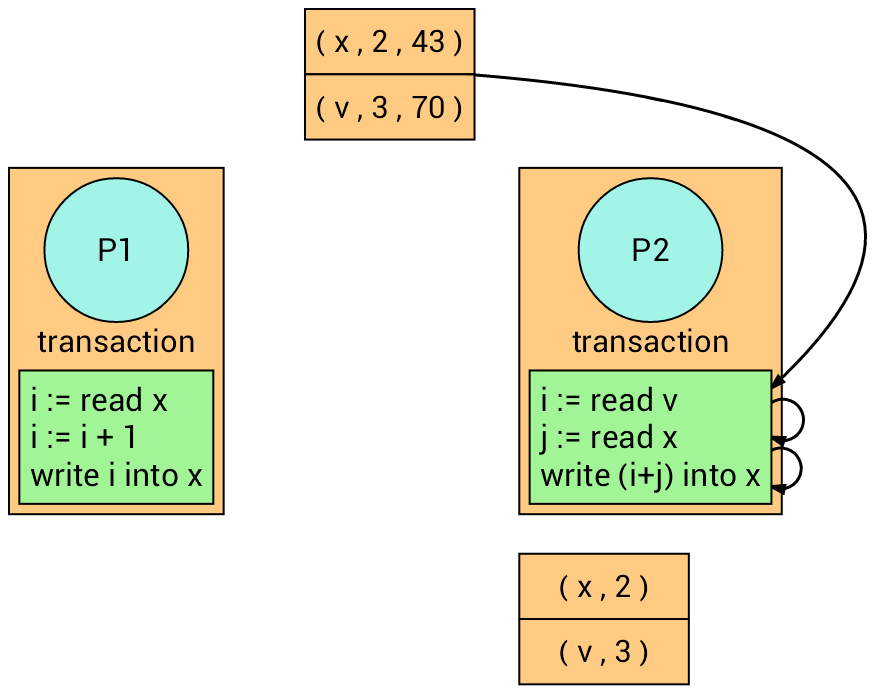

The transaction on the right retries.

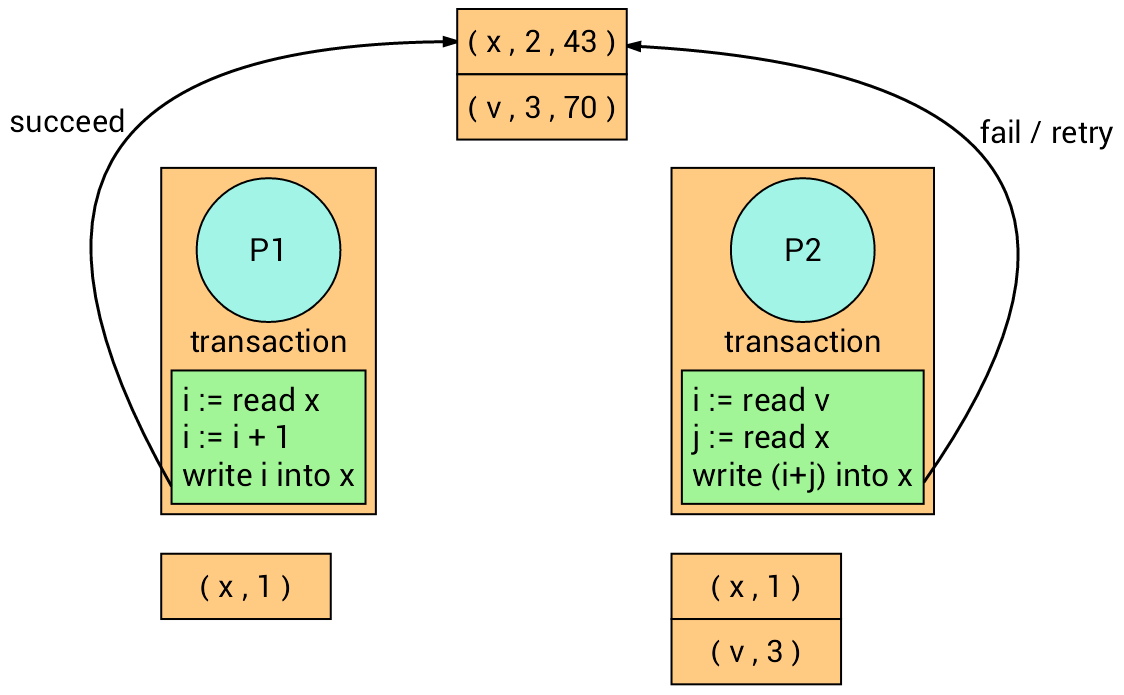

At the time of writing, it succeeds (Why?).

• Benefits of transactions:

  • Many processes can be in the critical section at the same time

    • More parallelism

    • They only need to rerun if there is an actual runtime conflict

    • Deadlocks cannot occur

    • Easy to compose

• Drawbacks of transactions:

  • Cannot guarantee fairness

    • A large transaction can be starved by many small ones

  • All the book keeping can be expensive

• STM are still a subject of reseach!

STM implementations

• Software Transactional Memory can be used in various ways:

  • As a library

  • As a language construct

• Libraries

  • Java: jvstm, Deuce, DSTM2, etc.

  • C/C++: TinySTM, LibLTX, LibCTM, RSTM

  • Exists for C#, Python, Lisp, and OCaml2

• Language support

  • Haskell, Clojure, and Perl 6.

• What about Erlang?

  • We will implement it as a library! (inspired by this post )

STM in Erlang

code

• Create a server that keeps track of transactional variables and its versions (transactional memory store)

• In a transaction, a variable is of the shape {Name, Version, Value}

• Interface

  • Functions read and write are used to locally read and write a variable, respectively

  • Function pull and push are used to fetch and commit variables from and to the store, respectively.

  %% new(Tm) -> ok
  %%   create the transaction memory store (Tm)
  new(Tm) -> genserver:start(Tm, dict:new(), fun loop/2).

  %% add(Tm, Name) -> Var
  %%   add a uninitialized variable to the Tm store
  add(Tm, Name) ->
      genserver:request(Tm, {add, Name, void}).

  %% add(Tm, Name, Init) -> Var
  %%   add a initialized variable
  add(Tm, Name, Init) ->
      genserver:request(Tm, {add, Name, Init}).

  %% read(Var) -> Value
  %%   return the value of a variable
  read({_Name, _Version, Value}) -> Value.

  %% write(Var, Value) -> ok
  %%   write Value into Var
  write({Name, Version, _Value}, NewValue) ->
      {Name, Version, NewValue}.

  %% pull(Tm, Name) -> Var
  %%   lookup variable Name in the Tm store
  pull(Tm, Name) ->
      genserver:request(Tm, {pull, Name}).

  %% push(Tm, Var) -> Bool
  %%   update variable Var in the TM store
  push(Tm, Var) ->
      genserver:request(Tm, {push, Var}).


• Transactional memory store

loop(Vars, {add, Name, Init}) ->
    case dict:find(Name, Vars) of
         {ok, _} -> {ok, Vars} ;
         error   -> {ok, dict:store(Name, {0,Init}, Vars)}
    end ;

loop(Vars, {pull, Name}) ->
    case dict:find(Name, Vars) of
         {ok, {Ver, Value}} -> {{Name, Ver, Value}, Vars} ;
         _                  -> {error, Vars}
    end ;

loop(Vars, {push, Name, {Name, Ver, Value}}) ->
    {VerTM, _} = dict:fetch(Name, Vars),
    case Ver of
         VerTM -> NewVars = dict:store(Name, {Ver+1, Value},
                                       Vars),
                  {true, NewVars} ;
         _     -> {false, Vars}
    end.

• To increase performance, pull and push could fetch and commit several variables at once (check this post by Joe Armstrong)

Composing transactions

• Composing transactions is embarrassingly simple

• Transaction to get an element from a buffer

  get_buff(Tm, Name) ->
     Buff = pull(Tm, Name),
     [X | Xs] = read(Buff),
     NewBuff  = write(Buff, Xs),
     push(Tm, Name, NewBuff),
     X.


• Transaction to remove the first element of a buffer

  put_buff(Tm, Name, X) ->
      Buff = pull(Tm, Name),
      Xs      = read(Buff),
      NewBuff = write(Buff, Xs ++ [X]),
      push(Tm, Name, NewBuff).


• Transaction to get an element from one buffer into the other one

  get_put_buff(Tm, Name1, Name2) ->
      Elem  = get_buff(Tm, Name1),
      put_buff(Tm, Name2, Elem).


  • Simple, right? Is it completely atomic? How could you fix it?

  • Adding a function atomic(Function, [Args]) which differs all the pushes until the end (need to modify push)

  • Homework to implement it! It is fun!

  stm_get_put_buff(Tm, Name1, Name2) =
          atomic(fun get_put_buff/3, [Tm, Name1, Name2]).


Side-effects

• Side effects such as I/O don't mix very well with transactional memory

• Programs raise a runtime exception if I/O is performed during a transaction

• Issues like these make it difficult to implement and program with transactional memory in most languages (Why? Rollback!)

---
