Concurrency

• Processes

  • Forking

• Message passing

  • Synchronization and naming conventions
  • Erlang approach

• Reacting to multiple messages

  • From the same origin as well as different sources

---

Processes

code

• No share data!

  • Different from threads

• Process is essentially another function running concurrently.

start() ->
     Pid = spawn(fun run/0),
     io:format("Spawned ~p~n",[Pid]).

run() ->
 io:format("Hello!~n",[]).

• The , is sequential composition (like ; in Java)

• Expression fun run/0 indicates to execute the function run which has zero arguments.

• Function spawn returns the proceed Id (Pid) of the newly created process for future interaction with it.

  • To be explained later

Forking

• Spawning new process is also known as forking

• This terminology comes from the operating system community



• Look at the picture upside-down and you got a fork!

BIF

• Built-in functions

  • spawn, spawn_link, atom_to_list

• Don’t need importing

• Mostly located in module called erlang (more here)

Message passing

• So far we considered synchronisation mechanisms based on shared variables

  • Concurrent programs require hardware in which processors share memory

• What about networked (distributed) architectures?

  • No shared memory

  • Message passing is the natural model for such scenarios

• Words by Joe Armstrong (Programming Erlang - Software for a concurrent world)

  The programming world went one way (toward shared state). The Erlang community went the other way. (Few other languages followed the “message passing concurrency” road. Others were Oz and Occam.)

  We don’t have shared memory. I have my memory. You have yours. We have two brains, one each. They are not joined together. To change your memory, I send you a message: I talk, or I wave my arms. You listen, you see, and your memory changes;

• It is relatively easy to adapt Erlang programs for distributed environments

How does it work?

• One process sends a message

• Another process awaits for a message

• Dimensions for message passing approaches:

  • What form of synchronisation is required

  • What form of process naming is involved in message passing

Forms of synchronization

Consider the behaviour of the sender of a message

• Asynchronous send

  • Send and continue working (e-mail, SMS)

• Synchronous send

  • Send and wait for the message to be received (fax)

• Rendezvous / Remote invocation

  • Send and wait for reply (phone call)

Examples

• Erlang has asynchronous message passing

• Ada has rendezvous

  • Previously used at Chalmers as a main teaching language

• Java has libraries

  • Sockets – asynchronous message passing

  • Remote Method Invocation – it can be seen as synchronous/rendezvous message passing

Forms of naming

How do sender and receiver refer to each other when message passing is used?

• Direct symmetric



• Direct asymmetric



  • Erlang has this naming convention
  • Sockets

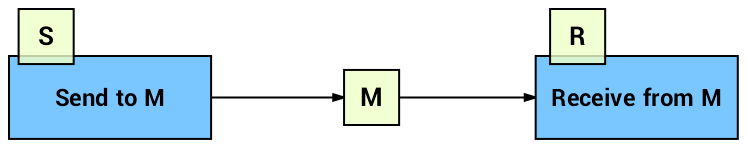

• Indirect



  • Naming a process is not always convenient

  • Naming an intermediary can be more flexible

  • A channel, service name, or a mailbox

  • Potentially many-to-many communication

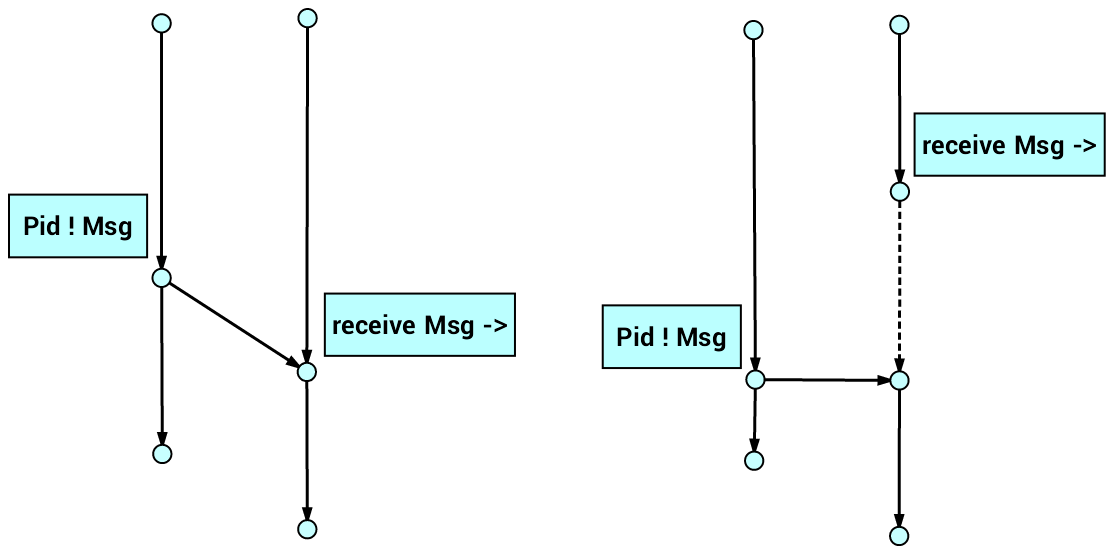

Erlang message passing

• Asynchronous send

• Receive from a mailbox



Spawning and tail recursion

• Spawn a function evaluation in a separate thread



• Function should be written using tail recursion



• Performance gain!

A simple echo-server

code

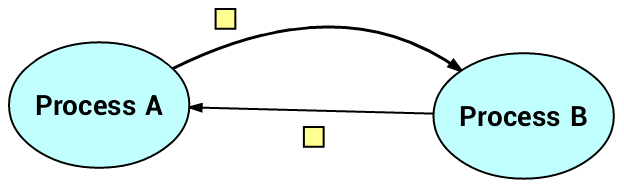

• Interaction

  • Process A sends a token to a Process B

  • Process B just returns it back to Process A

-module(echo).
-export([start/0]).

echo() ->
    receive
    {From, Msg} ->
        From ! {self(), Msg},
        echo();
    stop ->
        true
    end.

start() ->
    Pid = spawn(fun echo/0),
    % sending tokens to the server
    Token = 42,
    Pid ! {self(), Token},
    io:format("Sent~w~n",[Token]),
    receive
       {Pid, Msg} ->
            io:format("Received ~w~n", [Msg])
    end,
    % stop server
    Pid ! stop.

• Observe that Process A waits only for a message from Process B ({Pid, Msg}, where Pid is bound)

Reacting to multiple messages

• Erlang has the ability to "listen" for messages from different senders

  • In which order will they be process?

  • Can we force an order?

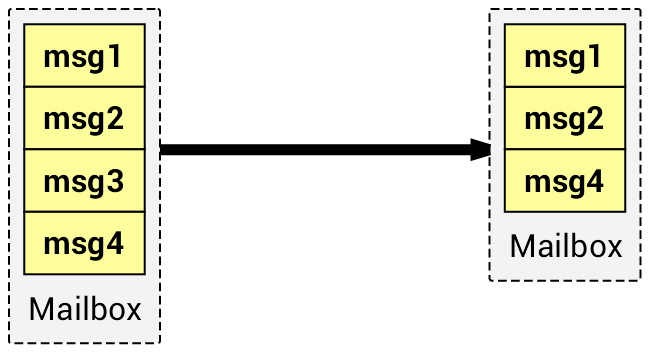

• The semantics for a receive statement

  • A receive statement tries to find a match as early in the mailbox as it can

    receive
       msg3 -> 42
    end

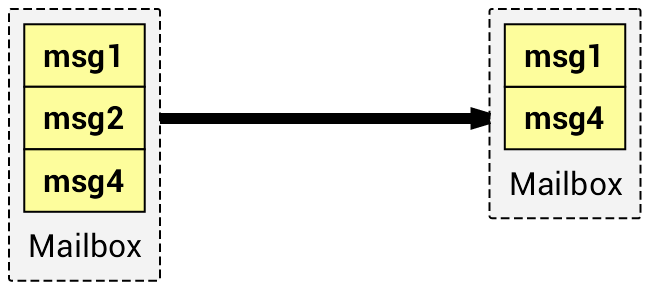

  • Another example

    receive
       msg4 -> 42
    end




  • Waiting for multiple messages

    receive
       msg4 -> 42
       _    -> 41
    end


    The _ matches with any message in the mailbox.



• The oldest message is tried against every pattern of the receive until one of them matches.

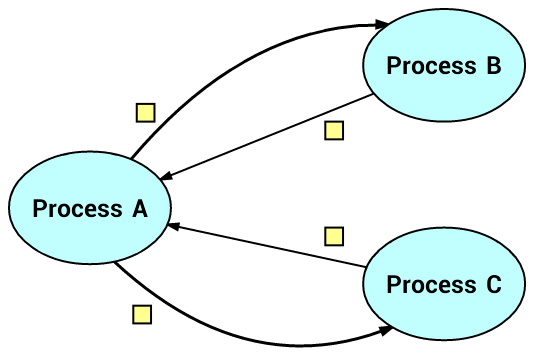

Sources of multiple messages

• Multiple messages can come from different processes (code)



  -module(echo2).
  -export([start/0]).

  echo() ->
      receive
       {From, Msg} ->
             timer:sleep(random:uniform(100)),
             From ! {self(), Msg},
             echo();
          stop ->
             true
      end.

  start() ->
      PidB = spawn(fun echo/0),
      PidC = spawn(fun echo/0),

      % sending tokens
      Token = 42,
      PidB ! {self(), Token},
      io:format("Sent~w~n",[Token]),
      Token2 = 41,
      PidC ! {self(), Token2},
      io:format("Sent~w~n",[Token2]),

      % receive messages
      receive
         {PidB, Msg} ->
                io:format("Received from B: ~w~n", [Msg]) ;
         {PidC, Msg} ->
                    io:format("Received from C: ~w~n", [Msg])
      end,

      % stop echo-servers
      PidB ! stop,
      PidC ! stop.

  • Function timer:sleep(N) sleeps a process for N milliseconds

  • Function random:uniform(N) produces a random integer between 1 and N

  • Distinguish the source by Pids

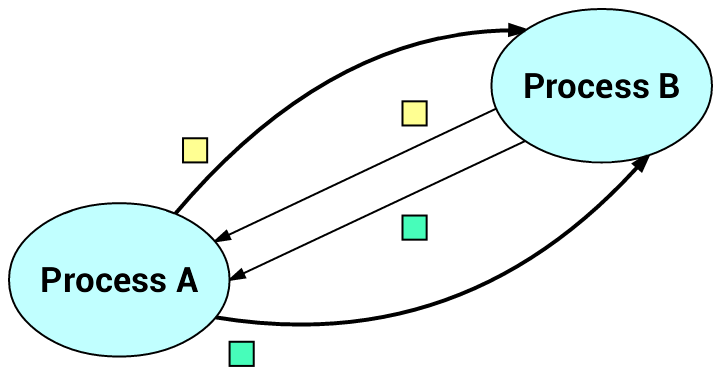

• Multiple messages can come from the same processes (code)

  • Erlang has asynchronous messages

  • Send several messages of the same shape and continue computing

  • When receiving the responses, how can the code match them to the appropriate request?

     -module(echo3).
     -export([start/0]).

     echo() ->
         receive
             {From, Msg} ->
                 From ! {self(), Msg},
                 echo();
             stop ->
                 true
         end.

     start() ->
         PidB = spawn(fun echo/0),
         % sending tokens
         Token = 42,
         PidB ! {self(), Token},
         io:format("Sent~w~n",[Token]),
         Token2 = 41,
         PidB ! {self(), Token2},
         io:format("Sent~w~n",[Token2]),
         % receive messages
         receive
            {PidB, Msg} ->
                 io:format("Received 41? ~w~n", [Msg]) ;
            {PidB, Msg} ->
                 io:format("Received 42? ~w~n", [Msg])

         end,

         % stop echo-servers
         PidB ! stop.


  • BIF make_ref provides globally unique reference objects (references for short) different from every other object in the Erlang system including remote nodes

  • References can be used to uniquely identify messages! (code)

    -module(echo4).
    -export([start/0]).

    echo() ->
       receive
           {From, Ref, Msg} ->
               From ! {self(), Ref, Msg},
               echo();
           stop ->
               true
       end.

    start() ->
       PidB = spawn(fun echo/0),
       % sending tokens
       Token = 42,
       Ref = make_ref(),
       PidB ! {self(), Ref, Token},
       io:format("Sent~w~n",[Token]),
       Token2 = 41,
       Ref2 = make_ref(),
       PidB ! {self(), Token2},
       io:format("Sent~w~n",[Token2]),
       % receive messages
       receive
          {PidB, Ref2, Msg} ->
               io:format("Received 41? ~w~n", [Msg]) ;
          {PidB, Ref, Msg} ->
               io:format("Received 42? ~w~n", [Msg])

       end,

       % stop echo-servers
       PidB ! stop.


Selective receive

• Clauses can have guards

• Guards must be composed from terminating functions (BIFs)

receive
  {Pid, Ref, N} when N>0 -> ...
