Lab Assignment 3 -- Sudoku
In this Lab Assignment, you will design a Haskell program that will be able
to solve Sudokus, a popular logical puzzle originating from Japan.
Assignments and Deadlines
There are 6 regular assignments as part of this Lab: A, B, C, D, E, and F. The
lab consists (again) of two parts.
Assignments A, B, and C form Part I of the lab, and need to be submitted
before Monday September 30 at 9.00 in the morning.
Assignments
D, E and F form Part II of the Lab, and need to be submitted
before Monday October 7 at 9.00 in the morning.
There are also extra assignments X, Y, Z, P, and Q. You can choose freely
whether to do one of these.
The final deadline for this lab is Wednesday October 16 at 9.00 in the
morning.
Hints
Some assignments have hints. Often, these involve particular standard Haskell
functions that you could use. Some of these functions are defined in modules
that you have to import yourself explicitly. You can use the following
resources to find more information about those functions:
We encourage you to actually go and find information about the functions that
are mentioned in the hints!
Sudokus
Sudoku is a logic puzzle, originally coming from Japan. In the Western world,
it has caught on in popularity enormously over the last couple of years. Most
newspapers now publish a Sudoku puzzle for the readers to solve every day.
A Sudoku puzzle consists of a 9x9 grid. Some of the cells in the grid have
digits (from 1 to 9), others are blank. The objective of the puzzle is to fill
in the blank cells with digits from 1 to 9, in such a way that every row, every
column and every 3x3 block has exactly one occurrence of each digit 1 to 9.

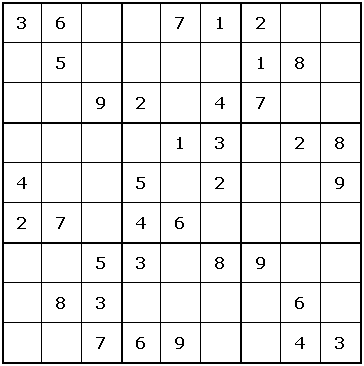

Here is an example of a Sudoku puzzle:

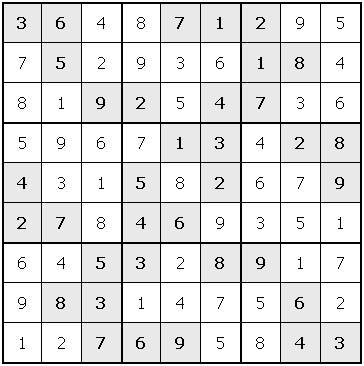

And here is the solution:
In this lab assignment, you will write a Haskell program that can read in a
Sudoku puzzle and solve it.
More Information
If you want to read more about Sudokus, here are a few links:
Modelling Sudokus
To implement a Sudoku-solving program, we need to come up with a way of
modelling Sudokus. A Sudoku is a matrix of digits or blanks. The natural way of
modelling a matrix is as a list of lists. The outer list represents all the
rows, and the elements of the list are the elements of each row. Digits or
blanks can be represented by using the Haskell Maybe type. Digits are
simply represented by Int.
Summing up, a natural way to represent Sudokus is using the following Haskell
datatype:
data Sudoku = Sudoku [[Maybe Int]]
Since it is convenient to have a function that extracts the actual rows from the
Sudoku, we say:
rows :: Sudoku -> [[Maybe Int]]
rows (Sudoku rs) = rs
For example, the above Sudoku puzzle has the following representation in Haskell:
example :: Sudoku
example =
Sudoku
[ [Just 3, Just 6, Nothing,Nothing,Just 7, Just 1, Just 2, Nothing,Nothing]
, [Nothing,Just 5, Nothing,Nothing,Nothing,Nothing,Just 1, Just 8, Nothing]
, [Nothing,Nothing,Just 9, Just 2, Nothing,Just 4, Just 7, Nothing,Nothing]
, [Nothing,Nothing,Nothing,Nothing,Just 1, Just 3, Nothing,Just 2, Just 8]
, [Just 4, Nothing,Nothing,Just 5, Nothing,Just 2, Nothing,Nothing,Just 9]
, [Just 2, Just 7, Nothing,Just 4, Just 6, Nothing,Nothing,Nothing,Nothing]
, [Nothing,Nothing,Just 5, Just 3, Nothing,Just 8, Just 9, Nothing,Nothing]
, [Nothing,Just 8, Just 3, Nothing,Nothing,Nothing,Nothing,Just 6, Nothing]
, [Nothing,Nothing,Just 7, Just 6, Just 9, Nothing,Nothing,Just 4, Just 3]
]
Now, a number of assignments follows, which will lead you step-by-step towards
an implementation of a Sudoku-solver.
Some Basic Sudoku Functions
To warm up, we start with a number of basic functions on Sudukos.
Assignment A
A1. Implement a function
allBlankSudoku :: Sudoku
that represents a Sudoku that only contains blank cells (this means that no
digits are present).
Do not use copy-and-paste programming here! Your definition does not need to be longer than
a few short lines.
|
A2. The Sudoku type we have defined allows for more things than Sudokus.
For example, there is nothing in the type definition that says that a
Sudoku has 9 rows and 9 columns,
or that digits need to lie between 1 and 9. Implement a function
isSudoku :: Sudoku -> Bool
that checks if all such extra conditions are met by the given Sudoku.
Examples:
Sudoku> isSudoku (Sudoku [])
False
Sudoku> isSudoku allBlankSudoku
True
Sudoku> isSudoku example
True
Sudoku> isSudoku (Sudoku (tail (rows example)))
False
|
A3. Our job is to solve Sudokus. So, it would be handy to know
when a Sudoku is solved or not. We say that a Sudoku is solved if there
are no blank cells left to be filled in anymore. Implement the following
function:
isSolved :: Sudoku -> Bool
Note that we do not check here if the Sudoku is a valid solution; we
will do this later. This means that any Sudoku without blanks (even Sudokus with
the same digit appearing twice in a row) is considered
solved by this function!
|
Hints
To implement the above, use list comprehensions! Also, the following standard
Haskell functions might come in handy:
replicate :: Int -> a -> [a]
length :: [a] -> Int
and :: [Bool] -> Bool
To help you get started, ahere is a file that you can use:
Reading and Printing Sudokus
Next, we need to have a way of representing Sudokus in a file. In that way, our
program can read Sudokus from a file, and it is easy for us to create and store
several Sudoku puzzles.
The following is an example text-representation that we will use in this
assignment. It actually represents the example above.
36..712..
.5....18.
..92.47..
....13.28
4..5.2..9
27.46....
..53.89..
.83....6.
..769..43
There are 9 lines of text in this representation, each corresponding to a row.
Each line contains 9 characters. A digit 1 -- 9 represents a filled cell, and a
period (.) represents a blank cell.
Assignment B
B1. Implement a function:
printSudoku :: Sudoku -> IO ()
that, given a Sudoku, creates instructions to print the Sudoku on the screen,
using the format shown above.
Example:
Sudoku> printSudoku allBlankSudoku
.........
.........
.........
.........
.........
.........
.........
.........
.........
Sudoku> printSudoku example
36..712..
.5....18.
..92.47..
....13.28
4..5.2..9
27.46....
..53.89..
.83....6.
..769..43
|
B2. Implement a function:
readSudoku :: FilePath -> IO Sudoku
that, given a filename, creates instructions that read the Sudoku from the
file, and deliver it as the result of the instructions. You may decide yourself
what to do when the file does not contain a representation of a Sudoku.
Examples:
Sudoku> do sud <- readSudoku "example.sud"; printSudoku sud
36..712..
.5....18.
..92.47..
....13.28
4..5.2..9
27.46....
..53.89..
.83....6.
..769..43
Sudoku> readSudoku "Sudoku.hs"
Program error: Not a Sudoku!
|
Hints
To implement the above, you will need to be able to convert between characters
(type Char) and digits/integers (type Int). The standard functions
chr and ord (import the module Data.Char) will come in handy
here. Think about the following problems:
The constant value ord '0' will play a central role in all this. You can
also use the function digitToInt.
Here are some functions that might come in handy:
chr :: Int -> Char
ord :: Char -> Int
digitToInt :: Char -> Int
putStr :: String -> IO ()
putStrLn :: String -> IO ()
sequence_ :: [IO a] -> IO ()
readFile :: FilePath -> IO String
lines :: String -> [String]
Here are some example Sudoku-files that you can download and use:
Generating Sudokus as Test Data
Finally, we need to be able to test properties about the functions related to
our Sudokus. In order to do so, QuickCheck needs to be able to generate
arbitrary Sudokus.
Let us split this problem into a number of smaller problems. First, we need to
know how to generate arbitrary cell values (of type Maybe Int). Then,
we need to know how to generate 81 such cells, and compose them all into a
Sudoku.
Assignment C
C1. Implement a function:
cell :: Gen (Maybe Int)
that, contains instructions for generating a Sudoku cell. You have to think
about the following:
Example:
Sudoku> sample cell
Just 3
Nothing
Nothing
Just 7
Nothing
|
C2. Make Sudokus an instance of the class Arbitrary.
instance Arbitrary Sudoku where
...
We have already done this for you in the file
Sudoku.hs.
|
C3. Define a property
prop_Sudoku :: Sudoku -> Bool
that expresses that each generated Sudoku actually is a Sudoku according
to
Assignment A2. Also use QuickCheck to check that the property
actually holds for all Sudokus that are generated.
|
Hints
Here are some functions that might come in handy:
sample :: Gen a -> IO ()
choose :: Random a => (a,a) -> Gen a
frequency :: [(Int,Gen a)] -> Gen a
sequence :: [Gen a] -> Gen [a]
You might want to take a look at the lecture notes and example code on test data
generation.
Rows, Columns, Blocks
Now, we are going to think about what actually constitutes a valid solution of a
Sudoku. There are three constraints that a valid solution has to forfill:
This leads us to the definition of a block; a block is either a row or
a column or a 3x3 block. A block therefore contains 9 cells:
type Block = [Maybe Int]
We are going to define a function that checks if a Sudoku is not violating any
of the above constraints, by checking that none of the blocks violate those
constraints.
Assignment D
D1. Implement a function:
isOkayBlock :: Block -> Bool
that, given a block, checks if that block does not contain the same digit twice.
Examples:
Sudoku> isOkayBlock [Just 1, Just 7, Nothing, Nothing, Just 3, Nothing, Nothing, Nothing, Just 2]
True
Sudoku> isOkayBlock [Just 1, Just 7, Nothing, Just 7, Just 3, Nothing, Nothing, Nothing, Just 2]
False
|
D2. Implement a function:
blocks :: Sudoku -> [Block]
that, given a Sudoku, creates a list of all blocks of that Sudoku. This means:
Also add a property that states that, for each Sudoku, there are 3*9 blocks,
and each block has exactly 9 cells.
|
D3. Now, implement a function:
isOkay :: Sudoku -> Bool
that, given a Soduko, checks that all rows, colums and 3x3 blocks do not contain
the same digit twice.
Examples:
Sudoku> isOkay allBlankSudoku
True
Sudoku> do sud <- readSudoku "example.sud"; print (isOkay sud)
True
|
Hints
Here are some functions that might come in handy:
nub :: Eq a => [a] -> [a]
transpose :: [[a]] -> [[a]]
take :: Int -> [a] -> [a]
drop :: Int -> [a] -> [a]
Note that some of the above functions only appear when you import
Data.List.
You might want to take a look at the exercises and answers on lists and list
comprehensions.
Positions and Finding Blanks
We are getting closer to the final solving function. Let us start thinking about
how such a function would work.
Given a Sudoku, if there are no blanks left in the Sudoku, we are done.
Otherwise, there is at least one blank cell that needs to be filled in somehow.
We are going to write functions to find and manipulate such a blank cell.
It is quite natural to start to talk about positions. A position is a
coordinate that identifies a cell in the Sudoku. Here is a way of modelling
coordinates:
type Pos = (Int,Int)
We use positions as indicating first the row and then the column.
For example, the position (3,5) denotes the 5th cell in the 3rd row.
Note: It is common in programming languages to start counting at 0! Therefore,
the position that indicates the upper left corner is (0,0), and the position
indicating the lower right corner is (8,8).
Assignment E
E1. Implement a function:
blank :: Sudoku -> Pos
that, given a Sudoku that has not yet been solved, returns a position in the
Sudoku that is still blank. You may decide yourself which position!
Examples:
Sudoku> blank allBlankSudoku
(0,0)
Sudoku> blank example
(0,2)
Also write a property that states that the cell at the blank position is actually
blank.
|
E2. Implement a function:
(!!=) :: [a] -> (Int,a) -> [a]
that, given a list, and a tuple containing an index in the list and a new value,
updates the given list with the new value at the given index.
Examples:
Sudoku> ["a","b","c","d"] !!= (1,"apa")
["a","apa","c","d"]
Sudoku> ["p","qq","rrr"] !!= (0,"bepa")
["bepa","qq","rrr"]
Also write (a) propert(y/ies) that state(s) the expected properties of this
function. Think about what can go wrong!
|
E3. Implement a function:
update :: Sudoku -> Pos -> Maybe Int -> Sudoku
that, given a Sudoku, a position, and a new cell value, updates the given Sudoku
at the given position with the new value.
Example:
Sudoku> printSudoku (update allBlankSudoku (1,3) (Just 5))
.........
...5.....
.........
.........
.........
.........
.........
.........
.........
Also write a property that checks that the updated position really has gotten
the new value.
|
Hints
There is a standard function (!!) in Haskell for getting a specific
element from a list. It starts indexing at 0, so for example to get the
first element from a list xs, you can use xs !! 0.
We usually use the standard function zip to pair up elements in a list
with their corresponding index. Example:
*Main> ["apa","bepa","cepa"] `zip` [1..3]
[("apa",1),("bepa",2),("cepa",3)]
This, in combination with list comprehensions, should be very useful for this
assignment!
When testing a property that is polymorphic (meaning that it has type variables
in its type), you need to add a type signature that picks an arbitrary type. For
example, when testing properties for the function (!!=), which works for lists
of any type, you have to fix the type when testing, for example lists of
Integers. Do this by adding a type signature to your properties.
Here are some more useful functions:
head :: [a] -> a
(!!) :: [a] -> Int -> a
zip :: [a] -> [b] -> [(a,b)]
You might want to take a look at the exercises and answers on lists and list
comprehensions.
Solving Sudokus
Finally, we have all the bits in place to attack our main problem: Solving a
given Sudoku.
Our objective is to define a Haskell function
solve :: Sudoku -> Maybe Sudoku
The idea is as follows. If we have a Sudoku sud that we would like to solve, we
give it to the function solve. This will produce one of two results:
How should solve be implemented. Here is one idea. When we try to solve a
given Sudoku sud, there exist three cases:
- sud violates some of the constraints (in other words: some of its
blocks contain the same digit twice). In this case, the answer of solve
must be Nothing.
- sud does not contain any blanks (in other words: sud is a
solution!). In this case, the answer of solve
must be Just sud.
- Otherwise, sud must contain at least one blank cell. In this case,
we try to recursively solve sud 9 times; each time we update the
blank cell with a concrete digit from 1 to 9. The first recursive attempt that
succeeds is our answer. If none of the recursive attempts succeed, we return
Nothing.
This method of problem solving is called
backtracking.
Assignment F
F1. Implement a function:
solve :: Sudoku -> Maybe Sudoku
using the above idea.
Examples:
Sudoku> printSudoku (fromJust (solve allBlankSudoku))
123456789
456789123
789123456
214365897
365897214
897214365
531642978
642978531
978531642
Sudoku> do sud <- readSudoku "example.sud"; printSudoku (fromJust (solve sud))
364871295
752936184
819254736
596713428
431582679
278469351
645328917
983147562
127695843
Sudoku> do sud <- readSudoku "impossible.sud"; print (solve sud)
Nothing
(In the above examples, we use the standard function fromJust from the library
Data.Maybe.)
|
F2. For your own convenience, define a function:
readAndSolve :: FilePath -> IO ()
that produces instructions for reading the Sudoku from the given file, solving it, and printing the answer.
Examples:
Sudoku> readAndSolve "example.sud"
364871295
752936184
819254736
596713428
431582679
278469351
645328917
983147562
127695843
Sudoku> readAndSolve "impossible.sud"
(no solution)
|
F3. Implement a function:
isSolutionOf :: Sudoku -> Sudoku -> Bool
that checks, given two Sudokus, whether the first one is a solution (i.e. all blocks
are okay, there are no blanks), and also whether the first one is a solution of the
second one (i.e. all digits in the second sudoku are maintained in the first one).
Examples:
Sudoku> fromJust (solve allBlankSudoku) `isSolutionOf` allBlankSudoku
True
Sudoku> allBlankSudoku `isSolutionOf` allBlankSudoku
False
Sudoku> fromJust (solve allBlankSudoku) `isSolutionOf` example
False
|
F4. Define a property:
prop_SolveSound :: Sudoku -> Property
that says that the function solve is sound. Soundness means that every
supposed solution
produced by solve actually is a valid solution of the original problem.
|
Hints
All the work we did in the assignments A -- E should be used in order to implement
the function solve.
To implement the third, recursive, case of solve, you can use a list comprehension
that enumerates all possible values for the blank cell. You can then use the
standard function listToMaybe to turn the result into something of type
Maybe.
QuickChecking the property prop_SolveSound will probably take a long time. Be patient!
Alternatively, there are a number of things you can do about this.
It is okay if you do not find a completely satisfactory solution to this.
Here are some useful functions:
fromJust :: Maybe a -> a
listToMaybe :: [a] -> Maybe a
You might want to take a look at the function majorities defined in the
lecture and exercises.
Here is an example of an impossible Sudoku:
Extra Assignments
You can choose freely whether to do 0, 1 or more of these.
There are no perfect, pre-defined answers here, but try to
show your thoughts and understanding in your answers.
Extra Assignments
These are not obligatory, but you will learn more if you do them!
X. The solving method we have used in this lab assignment is very basic, and in some sense
naive. One way to boost performance is to look closer at the function
blank. Perhaps if we picked the blank in a smarter way, the solve
function would go faster?
One idea is to always pick the blank spot where there are as few
possibilities left. For example, if we have a row with one or two blank
spots, it is probably a good idea to pick one of those blank spots, since it
will limit the consecutive search most, and it will lead to search to a state
with more digits filled in. (Such a way of changing a solving method is called a
heuristic -- there is no absoluate guarantee that the search will go faster, but
often it actually will.)
Change the implementation of the blank function, so that it always
picks the blank spot that is in a row, column, or 3x3 block where there are
as few blank spots left.
For example, in the Sudoku below:
36..712..
.5....18.
..92.47..
...x13.28
4..5.2..9
27.46....
..53.89..
.83....6.
..769..43
we have marked one blank spot with an x. The row in which this x is has 5 blank
spots (including the x itself); the column in which this x is has 4 blank spots, and
the 3x3 block in which this x is has 3 blank spots. It turns out that this is
the best we can do; it is good to pick x as the next blank spot, since there
will only be 2 blank spots left in the middle 3x3 block.
Does your solve function work faster now? Experiment with different
heuristics (for example: only look at rows and columns, and not at 3x3 blocks),
and see which one performs best. Can you solve some of the hard
Sudokus now?
Do not forget to add appropriate properties that test your functions.
|
Y. The solving method we have used in this lab assignment is very basic, and in some sense
naive. The best known methods to solve problems like Sudoku is to also include the notion of
propagation. This is the way most humans actually solve a Sudoku.
A simple variant of propagation is the following.
Suppose we have Sudoku with a row with precisely
one blank, such as the 3rd row in the example below:
36..712..
.5....18.
..92.47..
596.13428
4..5.2..9
27.46....
..53.89..
.83....6.
..769..43
Our current solution would go and pick blanks, and start searching recursively, without making use
of the fact that we already know the value of that blank (namely 7 in this case);
all the other values have been used by the other cells in the row.
Implement a function
propagate :: Sudoku -> Sudoku
that, given a Sudoku, finds out which rows, columns, and 3x3 blocks only have one blank in them,
and then fills those blanks with the only possibly remaining value. It repeats doing this until all rows,
columns and 3x3 blocks are either completely filled up, or contain two holes or more.
Now, add this function at the appropriate place in your solve function. Does it
work faster now?
For other, more powerful propagation, you can for example read the following webpage:
Or come up with your own propagation rules!
Do not forget to add appropriate properties that test your functions.
|
Z. Write a function that produces interesting Sudoku puzzles. For example, one could have a function
createSudoku :: IO ()
that every time we run it, would print a new, interesting Sudoku puzzle on the screen.
One can discuss what an interesting Sudoku puzzle is. Here are three properties
that an interesting Sudoku puzzle must have:
Can you think of a way to define a function for generating an infinite
supply of new Sudokus satisfying the above two properties? You should of course make use of the
functions you already have.
Do not forget to add appropriate properties that test your functions.
|
P. Generalize the Sudokus that are dealt with in this assignment to
other dimensions, for example 4x4 Sudokus, or 4x3 Sudokus. Do all dimensions
make sense? Make sure your solution works in general, for all possible dimensions that make sense.
For inspiration, look here:
Monster
Sudokus.
Or here: xkcd comics :-)
Do not forget to add appropriate properties that test your functions.
|
Q. We have stated the soundness of the solve function as a property;
every produced solution should be a real solution.
The dual of soundness is completeness. Completeness says that whenever there is
a solution, the solve function should also produce a solution. (Equivalently, if the
solve function says that there is no solution, then there really is no solution.)
If we define the following helper datatype:
data SolvableSudoku = Solvable Sudoku
Then, implement a property
prop_SolveComplete :: SolvableSudoku -> Bool
prop_SolveComplete (Solvable sud) = ...
that states that, for any solvale Sudoku, solve produces an answer.
Now, make the type SolvableSudoku an instance of Arbitrary:
instance Arbitrary SolvableSudoku where
arbitrary = ...
Here, you need to think about how to generate arbitrary Sudokus that are
guaranteed to be solvable!
One idea is to start with an arbitrary solved Sudoku, and randomly blank
out some of the digits. Implement this!
|
Submission
Submit your solutions using the Fire system.
Your submission should consist of the following files:
Before you submit your code, Clean It Up! Remember, submitting clean code
is Really Important, and simply the polite thing to do. After you feel you are done,
spend some time on cleaning your code; make it simpler, remove unneccessary things, etc.
We will reject
your solution if it is not clean. Clean code:
To the Fire System
Good Luck!
|
