Motivation

Signal processing for mobile communication gets increasingly demanding

Old figures:

• Expected bandwidth in 2014 is ~10 times higher than in 2009
• This requires ~100 times more computational power
• Compare to Moore’s law: ~10 times speed increase over the same period

Motivation

Industry needs to move to new, more parallel hardware architectures

• Code portability a major concern

Current signal processing code mostly written in C

• Highly optimized for specific hardware — non-portable
• Not easily parallelized

Feldspar

A joint project with Ericsson, Chalmers and ELTE University (Budapest)

Aims to make digital signal processing (DSP) code more high-level

• …to gain portability and maintainability
• …ideally without sacrificing speed

Method: Domain-specific language with associated compiler

Initial application: Radio base stations for mobile communication

Intension to be applicable for DSP in general

Hand-optimized loop (from AMR codec)

ANSI-C specification:

for (j = 0; j < L_frame; j++, p++, p1++)
{
   t0 = L_mac (t0, *p, *p1);
}
corr[­i] = t0;

#pragma MUST_ITERATE(80,160,80);
for (j = 0; j < L_frame; j++)
{
  pj_pj = _pack2 (p[j], p[j]);
  p0_p1 = _mem4_const(&p0[j+0]);
  prod0_prod1 = _smpy2 (pj_pj, p0_p1);
  t0 = _sadd (t0, _hi (prod0_prod1));
  t1 = _sadd (t1, _lo (prod0_prod1));
  p2_p3 = _mem4_const(&p0[j+2]);
  prod0_prod1 = _smpy2 (pj_pj, p2_p3);
  t2 = _sadd (t2, _hi (prod0_prod1));
  t3 = _sadd (t3, _lo (prod0_prod1));
  p4_p5 = _mem4_const(&p0[j+4]);
  prod0_prod1 = _smpy2 (pj_pj, p4_p5);
  t4 = _sadd (t4, _hi (prod0_prod1));
  t5 = _sadd (t5, _lo (prod0_prod1));
  p6_p7 = _mem4_const(&p0[j+6]);
  prod0_prod1 = _smpy2 (pj_pj, p6_p7);
  t6 = _sadd (t6, _hi (prod0_prod1));
  t7 = _sadd (t7, _lo (prod0_prod1));
}
corr[­i] = t0; corr[­i+1] = t1;
corr[­i+2] = t2; corr[­i+3] = t3;
corr[­i+4] = t4; corr[­i+5] = t5;
corr[­i+6] = t6; corr[­i+7] = t7;

Hand-optimized loop (from AMR codec)

Hand-optimized version probably not suited for a different processor; non-portable!

#pragma MUST_ITERATE(80,160,80);
for (j = 0; j < L_frame; j++)
{
  pj_pj = _pack2 (p[j], p[j]);
  p0_p1 = _mem4_const(&p0[j+0]);
  prod0_prod1 = _smpy2 (pj_pj, p0_p1);
  t0 = _sadd (t0, _hi (prod0_prod1));
  t1 = _sadd (t1, _lo (prod0_prod1));
  p2_p3 = _mem4_const(&p0[j+2]);
  prod0_prod1 = _smpy2 (pj_pj, p2_p3);
  t2 = _sadd (t2, _hi (prod0_prod1));
  t3 = _sadd (t3, _lo (prod0_prod1));
  p4_p5 = _mem4_const(&p0[j+4]);
  prod0_prod1 = _smpy2 (pj_pj, p4_p5);
  t4 = _sadd (t4, _hi (prod0_prod1));
  t5 = _sadd (t5, _lo (prod0_prod1));
  p6_p7 = _mem4_const(&p0[j+6]);
  prod0_prod1 = _smpy2 (pj_pj, p6_p7);
  t6 = _sadd (t6, _hi (prod0_prod1));
  t7 = _sadd (t7, _lo (prod0_prod1));
}
corr[­i] = t0; corr[­i+1] = t1;
corr[­i+2] = t2; corr[­i+3] = t3;
corr[­i+4] = t4; corr[­i+5] = t5;
corr[­i+6] = t6; corr[­i+7] = t7;

Code generation

(Old) Idea: Automatically generate optimized code from high-level algoritm

Code generator:

• Input: High-level algorithm description
• Input: Description of hardware platform (available instructions, available execution units, etc.)
• Output: Optimized C code (or similar)

Code generation

High-level language more readable and maintainable

Flexible code generator makes code portable

Platform-specific optimizations still needed, but should ideally be specified separately from algorithm

Implementation technique: Embedding

Implementing a domain-specific language (DSL) from scratch is costly

Embedded DSL (EDSL) [Hudak1998, Elliott2003]:

• Implemented as a library in an existing language (host)
• Reusing existing infrastructure
  • Parsing
  • Type checking
  • Module system
  • Testing
  • Packaging/building
  • Etc.
• Our choice of host language: Haskell

Feldspar — Functional Embedded Language for DSP and PARallelism

Language front-end:

• Embedded in Haskell
• Functional programming style (higher-order functions, polymorphism, etc.)
• Open set of domain-specific extra libraries

Example: “Sum of squares”

Sum of squares:    $\sum_{i=1}^{n} i^{2}$

import qualified Prelude as P
import Feldspar                -- Core language
import Feldspar.Vector         -- List-like data structure
import Feldspar.Compiler       -- C code generator

square x = x*x

sumSq :: Data Index -> Data Index
sumSq n = sum $ map square (1...n)

sumSqHaskell :: Int -> Int
sumSqHaskell n = P.sum $ P.map square [1..n]

Example: “Sum of squares”

Generated C code:

*Main> icompile sumSq
...
void test(struct array * mem, uint32_t v0, uint32_t * out)
{
    uint32_t v2;

    (* out) = 0;
    for(uint32_t v1 = 0; v1 < v0; v1 += 1)
    {
        uint32_t v3;

        v3 = (v1 + 1);
        v2 = ((* out) + (v3 * v3));
        (* out) = v2;
    }
}

• A single for loop
• No array allocation

Vector operations

Standard list operations:

length :: Vector a -> Data Length

sum :: Numeric a => Vector (Data a) -> Data a

map :: (a -> b) -> Vector a -> Vector b

zipWith :: (Syntax b, Syntax a) =>
    (a -> b -> c) -> Vector a -> Vector b -> Vector c

...

(...) :: Data Index -> Data Index -> Vector (Data Index)

indexed :: Data Length -> (Data Index -> a) -> Vector a

Example: Scalar product

Scalar product:    $\sum_{i=0}^{N-1} a_i \cdot b_i$

scProd :: Numeric a => Vector1 a -> Vector1 a -> Data a
scProd a b = sum $ indexed n $ \i -> a!i * b!i
  where
    n = length a `min` length b

scProd2 :: Numeric a => Vector1 a -> Vector1 a -> Data a
scProd2 a b = sum $ zipWith (*) a b

Integration with Haskell infrastructure

QuickCheck:

prop_scProd :: Vector1 Float -> Vector1 Float -> Data Bool
prop_scProd a b = scProd a b == scProd2 a b

*Main> quickCheck prop_scProd
+++ OK, passed 100 tests.

• Nice to be embedded!

Part II: Implementation

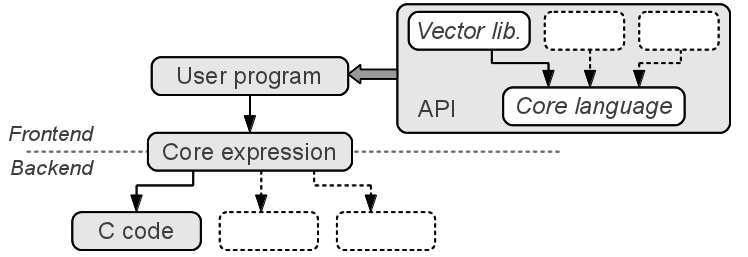

Architecture

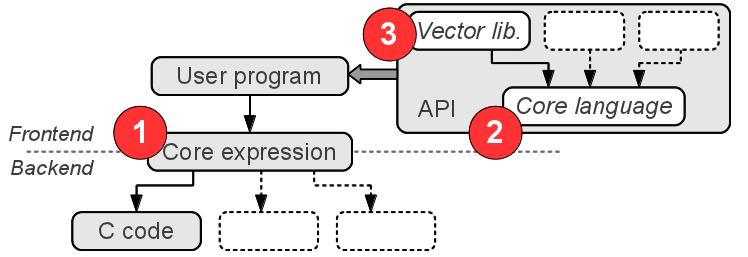

Architecture

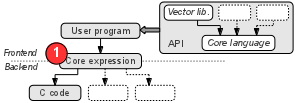

1. Abstract syntax tree data type

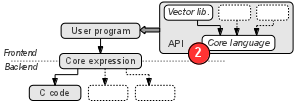

2. User interface to the core AST

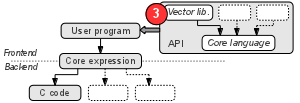

3. High-level meta-libraries

Core expressions

Feldspar uses a special representation of the AST (see part III)

However, the representation is isomorphic to a recursive data type:

data Data a
  where
    Literal :: (...)        => a -> Data a
    Add     :: (Num a, ...) => Data a -> Data a -> Data a
    Sub     :: (Num a, ...) => Data a -> Data a -> Data a
    ForLoop :: (...)
        => Data Length
        -> (Data Index -> Data st -> Data st)
        -> Data st
    ...

• Note the use of higher-order abstract syntax (HOAST) for constructs that introduce variables (ForLoop)

Core language

A large number of primitive functions, e.g:

not  :: Data Bool -> Data Bool
(&&) :: Data Bool -> Data Bool -> Data Bool
(||) :: Data Bool -> Data Bool -> Data Bool

div :: (Size a ~ Range a, Integral a) => Data a -> Data a -> Data a
mod :: (Size a ~ Range a, Integral a) => Data a -> Data a -> Data a

instance Numeric a => Num (Data a)
...

• Many of these functions override the corresponding Prelude functions

Core language

Complex constructs:

forLoop :: Type st
    => Data Length                         -- Number of steps
    -> Data st                             -- Initial state
    -> (Data Index -> Data st -> Data st)  -- "Body" (single step)
    -> Data st                             -- Final state

parallel :: Type a
    => Data Length                         -- Length of result
    -> (Data Index -> Data a)              -- Index projection
    -> Data [a]                            -- Core language array

And much more…

Core language: Examples

Core language version of sumSq:

sumSq2 :: Data Index -> Data Index
sumSq2 n = forLoop (n+1) 0 $ \i s -> s + i*i

*Main> eval sumSq2 10
385
*Main> eval sumSq 10
385

powsOf2 :: Data Index -> Data [Index]
powsOf2 n = parallel n (2^)

*Main> eval powsOf2 10
[1,2,4,8,16,32,64,128,256,512]

High-level libraries

The Syntax class abstracts over Data:

class Syntax a
  where
    type Internal a
    desugar :: a -> Data (Internal a)
    sugar   :: Data (Internal a) -> a

instance Type a => Syntax (Data a)
  where
    type Internal (Data a) = a
    desugar = id
    sugar   = id

High-level libraries

Vectors are syntactic sugar:

instance Syntax a => Syntax (Vector a)
  where
    type Internal (Vector a) = [Internal a]
    ...

Tuples are also sugar, etc.

Vector library

Type of vectors:

data Vector a
  where
    Indexed :: Data Length -> (Data Index -> a) -> Vector a

indexed :: Data Length -> (Data Index -> a) -> Vector a
indexed = Indexed

type Vector1 a = Vector (Data a)
type Vector2 a = Vector (Vector (Data a))

(The Vector type provided by Feldspar is slightly more complicated.)

Vector library

A vector is not a core expression, but it can be turned into one:

length :: Vector a -> Data Length
length (Indexed l _) = l

index :: Vector a -> Data Index -> a
index (Indexed _ ixf) i = ixf i

freeze :: Type a => Vector (Data a) -> Data [a]
freeze (Indexed len ixf) = parallel len ixf

fold :: Syntax a => (a -> b -> a) -> a -> Vector b -> a
fold f init b = forLoop (length b) init $
                  \i st -> f st (index b i)

• These functions are meta-constructs that generate core expressions
  • The polymorphic types a and b are either core expressions or some other high-level type that can be turned into a core expression.

Vector fusion

See demo

Part III: Syntactic library

Syntactic

• Haskell library for EDSL implementation
• Aim: Assemble DSL implementations from reusable building blocks

Generic abstract syntax

data AST dom a
  where
    Symbol :: ConsType a => dom a -> AST dom a
    (:$:)  :: Typeable a => AST dom (a :-> b)
                         -> AST dom (Full a)
                         -> AST dom b

type ASTF dom a = AST dom (Full a)

newtype Full a  = Full { result :: a }
newtype a :-> b = Partial (a -> b)

infixr :->

class ConsType a
instance ConsType (Full a)
instance ConsType b => ConsType (a :-> b)

infixl 1 :$:

Example: Numeric expressions

Standard expression GADT:

data Expr1 a
  where
    Lit1 :: Num a => a -> Expr1 a
    Add1 :: Num a => Expr1 a -> Expr1 a -> Expr1 a

lit1 :: Int -> Expr1 Int
lit1 x = Lit1 x

add1 :: Expr1 Int -> Expr1 Int -> Expr1 Int
add1 x y = Add1 x y

eval1 :: Expr1 Int -> Int
eval1 (Lit1 x)   = x
eval1 (Add1 x y) = eval1 x + eval1 y

*Main> eval1 (lit1 4 `add1` lit1 5)
9

Example: Numeric expressions

Same expression type represented using AST:

data NumDomain2 a
  where
    Lit2 :: Num a => a -> NumDomain2 (Full a)
    Add2 :: Num a => NumDomain2 (a :-> a :-> Full a)

type Expr2 a = ASTF NumDomain2 a

lit2 :: Int -> Expr2 Int
lit2 a = Symbol (Lit2 a)

add2 :: Expr2 Int -> Expr2 Int -> Expr2 Int
add2 x y = Symbol Add2 :$: x :$: y

eval2 :: Expr2 a -> a
eval2 (Symbol (Lit2 a)) = a
eval2 (Symbol Add2 :$: a :$: b) = eval2 a + eval2 b

Example: Numeric expressions

The underlying representation does not affect the user interface:

*Main> eval1 (lit1 4 `add1` lit1 5)
9

*Main> eval2 (lit2 4 `add2` lit2 5)
9

Why use the generic AST?

Reason 1: Generic traversals

countSyms :: AST dom a -> Int
countSyms (Symbol _) = 1
countSyms (f :$: a)  = countSyms f + countSyms a

*Main> countSyms (lit2 4 `add2` lit2 5)
3

Why use the generic AST

Reason 1: Generic traversals

Use type classes to make generic traversals aware of certain symbols:

class HasAddition dom
  where
    isAdd :: dom a -> Bool

instance HasAddition NumDomain2
  where
    isAdd Add2 = True
    isAdd _    = False

countAdd :: HasAddition dom => AST dom a -> Int
countAdd (Symbol a) | isAdd a = 1
countAdd (Symbol _)           = 0
countAdd (f :$: a)            = countAdd f + countAdd a

Why use the generic AST

Reason 2: Extensible symbol domains

Higher-kinded version of the Either type constructor:

data dom1 :+: dom2 :: * -> *
  where
    InjectL :: dom1 a -> (dom1 :+: dom2) a
    InjectR :: dom2 a -> (dom1 :+: dom2) a

infixr :+:

Why use the generic AST

Reason 2: Extensible symbol domains

Splitting the domain:

data Lit3 a where Lit3 :: Int -> Lit3 (Full Int)
data Add3 a where Add3 :: Add3 (Int :-> Int :-> Full Int)

type NumDomain3 = Lit3 :+: Add3

type Expr3 a = ASTF NumDomain3 a

lit3 :: Int -> ASTF NumDomain3 Int
lit3 a = Symbol (InjectL (Lit3 a))

add3 :: ASTF NumDomain3 Int
     -> ASTF NumDomain3 Int
     -> ASTF NumDomain3 Int
add3 x y = Symbol (InjectR Add3) :$: x :$: y

Why use the generic AST

Reason 2: Extensible symbol domains

Use type classes to make the domain abstract:

lit3 :: (Lit3 :<: dom) => Int -> ASTF dom Int

add3 :: (Add3 :<: dom) =>
    ASTF dom Int -> ASTF dom Int -> ASTF dom Int

countAdd :: (Add3 :<: dom) => AST dom a -> Int

eval :: Eval dom => AST dom a -> a

• Syntactic provides (:<:), Eval and many other type classes dealing with abstract domains

Back to Feldspar:
Implementation of parallel

• We will focus on what the Syntactic user has to write
• Ignore the magic that happens inside Syntactic

Implementation of parallel

Abstract syntax symbol:

data Array a
  where
    Parallel :: Type a => Array
      (   Length                 -- Number of elements
      :-> (Index -> a)           -- Index projection
      :-> Full [a]               -- Result
      )

    -- Other array constructs omitted

Implementation of parallel

Abstract syntax symbol:

data Array a
  where
    Parallel :: Type a => Array
      (   Length                 -- Number of elements
      :-> (Index -> a)           -- Index projection
      :-> Full [a]               -- Result
      )

    -- Other array constructs omitted

User interface (using type-class magic from Syntactic):

parallel :: Type a =>
    Data Length -> (Data Index -> Data a) -> Data [a]
parallel = sugarSym Parallel

Implementation of parallel

Semantics:

instance IsSymbol Array where
    toSym Parallel = Sym
        "parallel"
        (\len ixf -> genericTake len $ map ixf [0..])

Implementation of parallel

Semantics:

instance IsSymbol Array where
    toSym Parallel = Sym
        "parallel"
        (\len ixf -> genericTake len $ map ixf [0..])

Additionally:

• Optimization: 16 LOC
• Code generation: 12 LOC

Implementation of parallel

Summary: declarative implementation of parallel in ≈ 40 LOC

• Trivial boilerplate code omitted

Implementation of parallel

Summary: declarative implementation of parallel in ≈ 40 LOC

• Trivial boilerplate code omitted

What do we get?

• Strongly typed abstract and concrete syntax
• Interpretations:
  • Evaluation
  • Syntax tree rendering, etc.
• Transformations
  • Constant folding
  • Common sub-expression elimination
  • Invariant code hoisting, etc.

Implementation of parallel

Summary: declarative implementation of parallel in ≈ 40 LOC

• Trivial boilerplate code omitted

What do we get?

• Strongly typed abstract and concrete syntax
• Interpretations:
  • Evaluation
  • Syntax tree rendering, etc.
• Transformations
  • Constant folding
  • Common sub-expression elimination
  • Invariant code hoisting, etc.
• Caveat: Assuming functional semantics of the DSL

Assembling the DSL

Feldspar expression type:

newtype Data a = Data { unData :: AST FeldDomainAll (Full a) }

Assembling the DSL

Feldspar expression type:

newtype Data a = Data { unData :: AST FeldDomainAll (Full a) }

The symbol domain:

type FeldDomainAll = HODomain TypeCtx FeldDomain

type FeldDomain
    =
        -- Generic constructs (from Syntactic):
        Decor SourceInfo1 (Identity TypeCtx)
    :+: Condition TypeCtx
    :+: Let TypeCtx TypeCtx
    :+: Literal TypeCtx
    :+: Select TypeCtx
    :+: Tuple TypeCtx

        -- Feldspar-specific constructs:
    :+: Array
    :+: BITS
    :+: COMPLEX
    :+: Conversion
    :+: EQ
    :+: Error
    :+: FLOATING
    :+: FRACTIONAL
    :+: INTEGRAL
    :+: Logic
    :+: Loop
    :+: LoopM Mut
    :+: MONAD Mut
    :+: Mutable
    :+: MutableArray
    :+: MutableReference
    :+: NUM
    :+: ORD
    :+: PropSize
    :+: Trace
    :+: MutableToPure
    :+: ConditionM Mut

Assembling the DSL

type FeldDomain
    =
    ...
    :+: Array
    :+: BITS
    :+: COMPLEX
    :+: Conversion
    :+: EQ
    ...

The different “features” (e.g. Array) are developed independently and assembled “in the last minute”

• Simplifying cooperation and experimentation
• Enabling reuse across languages

For those interested…

Feldspar (upcoming version 0.5 is based on Syntactic):

http://hackage.haskell.org/package/feldspar-language
http://hackage.haskell.org/package/feldspar-compiler

Syntactic:

http://hackage.haskell.org/package/syntactic

• Contains a proof-of-concept implementation of Feldspar

> cabal unpack syntactic
Downloading syntactic-0.7...
Unpacking to syntactic-0.7/
> cd syntactic-0.7/Examples/NanoFeldspar/

For those interested…

The Resource-AWare Functional Programming project (RAWFP) invites to a Feldspar hacking session

• When: Feb 17 (tomorrow), 10.00 - 12.00
• Where: Edit 8103 (in CSE dept. lunch room)

Feldspar-related masters theses

References

Hudak. Modular Domain Specific Languages and Tools.
In ICSR ’98: Proceedings of the 5th International Conference on Software Reuse. 1998. IEEE Computer Society.

Elliott, Finne, de Moor. Compiling Embedded Languages.
Journal of Functional Programming. 2003. Cambridge University Press.
